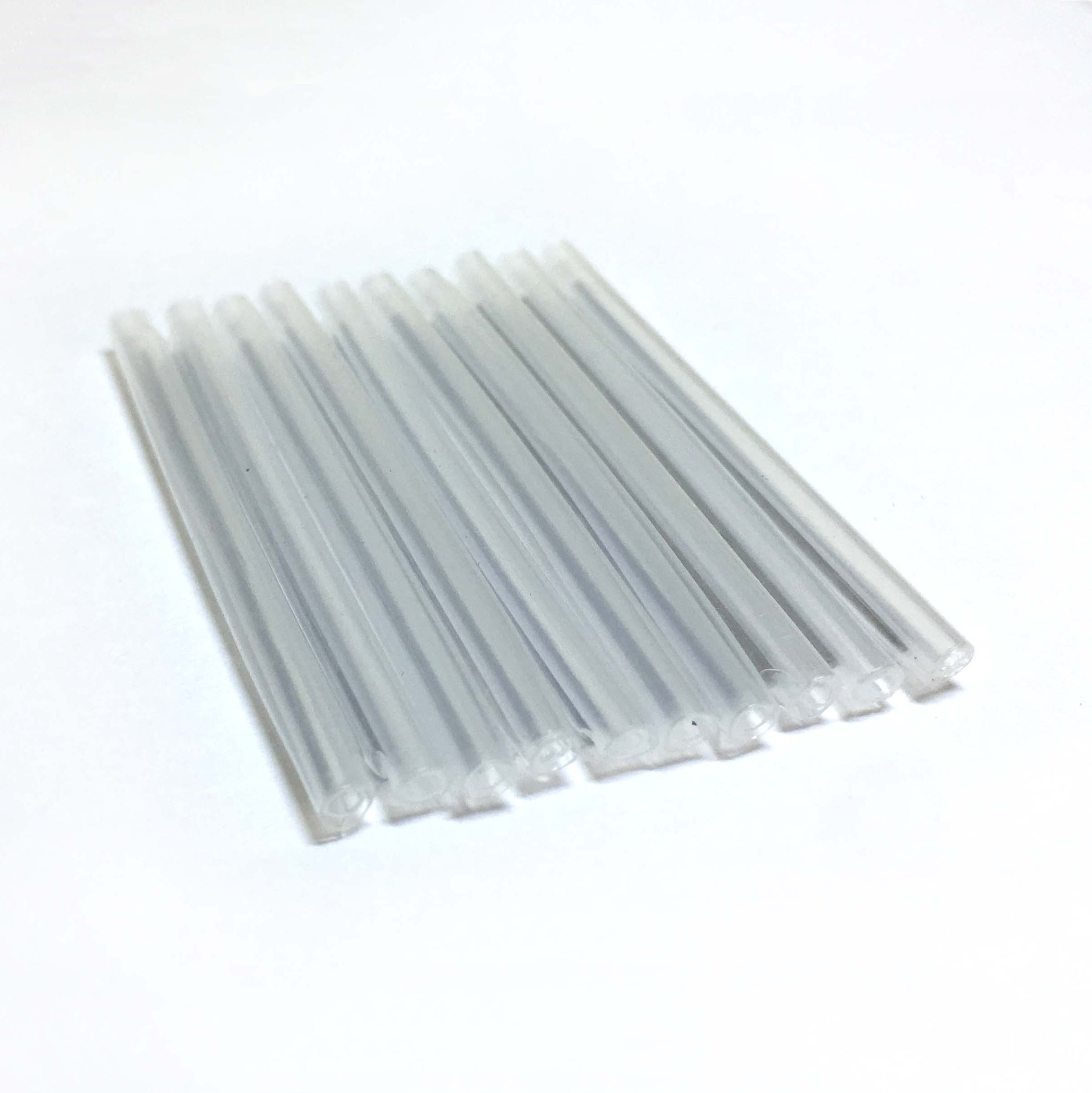

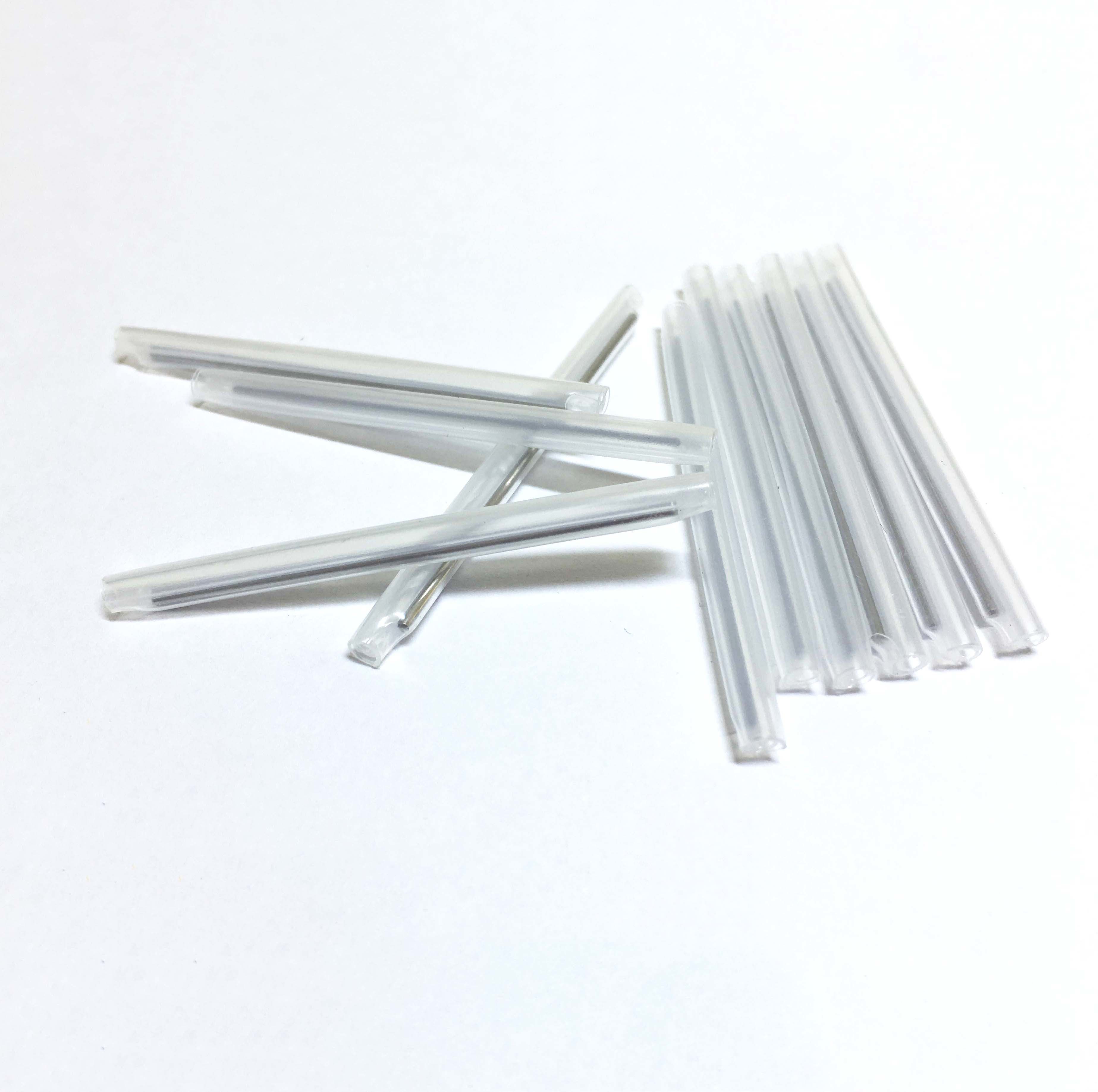

60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube

  • 60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube
  • 60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube
  • 60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number 60mm, 45mm, 40mm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 1,000,000,000 pcs/ week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Length 60mm, 45mm, 40mm Outer Diameter 3.0mm
Steel Wire Diameter 1.2mm, 1.5mm Outer Material PET
Steel Wire Material SUS304, SUS201 Outer Thickness 0.2mm
Highlight

PET Outer Fiber Optic Protection Sleeve

,

Heat Shrinkable Fiber Optic Protection Sleeve

,

PET Outer protection sleeve 60mm
Leave a Message
Product Description

60mm Fiber Optic Protection Sleeves Heat Shrinkable Tube



Fiber Optic Protection Sleeves Heat Shrinkable Tube:

- Fiber Optic Protection Sleeves Heat Shrinkable Tube is used for protecting and supporting the fusion splice point.

- Single fiber to maximum 12 fibers protection sleeves are available from us. The outer jacket of the sleeve is made of polyolefin while the inner tube is made of EVA. The minimum shrinking temperature is 100°C.

- The  Fiber Optic Protection Tube Heat Shrinkable Tube length have: 20mm, 40mm, 45mm and 60mm

- The  Fiber Optic Protection Tube Heat Shrinkable Tube have 1 steel wire for indoor cable and bare fiber, 1 steel wire and 2 steel wires for Ftth Drop cable, and 1 ceramic sleeve for bunch cable.

- The Fiber Optic Protection Tube Heat Shrinkable Tube is applied to the optical fiber closure to fix and protect the optical fiber when splicing.

- The Fiber Optic Protection Tube Heat Shrinkable Tube can be divided into two types (single and mass) according to the function. The single type is used for the single-fiber, and the mass type is used for the ribbon fiber. It is different in the reinforcement between two types. The single one realizes the reinforcement by the stainless steel needles, the later one via the ceramic reinforcement member to realize the function.

Mass means there are several cores for the fiber. So the mass sleeve includes 4cores, 6cores, 8cores, 12cores (for types).



Production Detail:

- Heat Shrinkable Fiber Optic Splice Protectors
- Consist of cross linked polyolefin,

- Hot fusion tubing and Stainless Reinforcing Steel Rod which keep optic transmission properties of optical fiber and enhance the protection to optical fiber splices.

- Easily operating to the optical fiber during installation without damaging and clear sleeve make it easy to detect splice before shrinkage.

- Sealing structure make the splice free from influence of temperature and humidity in special environment.
- Shrinkable sleeve is applied to the optical fiber closure to fix and protect the optical fiber when splicing.



Features:

- 201 stainless steel needle

- Length: 40mm, 45mm, 60mm.

- Application: FTTH

60mm 45mm 40mm Fiber Optic Protection Sleeve Heat Shrinkable Tube 0



Technical Data:

Properties Test Method Typical Data
Tensile Strength MPa ASTM D 2671 18
Ultimate Elongation (%) ASTM D 2671 700
Density (g/cm2) ISO R1183D 0.94
Dielectric Strength (KV/mm) IEC 243 20
Dielectric Constant IEC 243 2.5
Longitudinal Change (%) ASTM D 2671 +5
Operating Temperature (°C) : -45 ~ 100
Shrinking Temperature Range (°C) : 90 ~110
Length (mm): 40mm, 45mm, 60mm

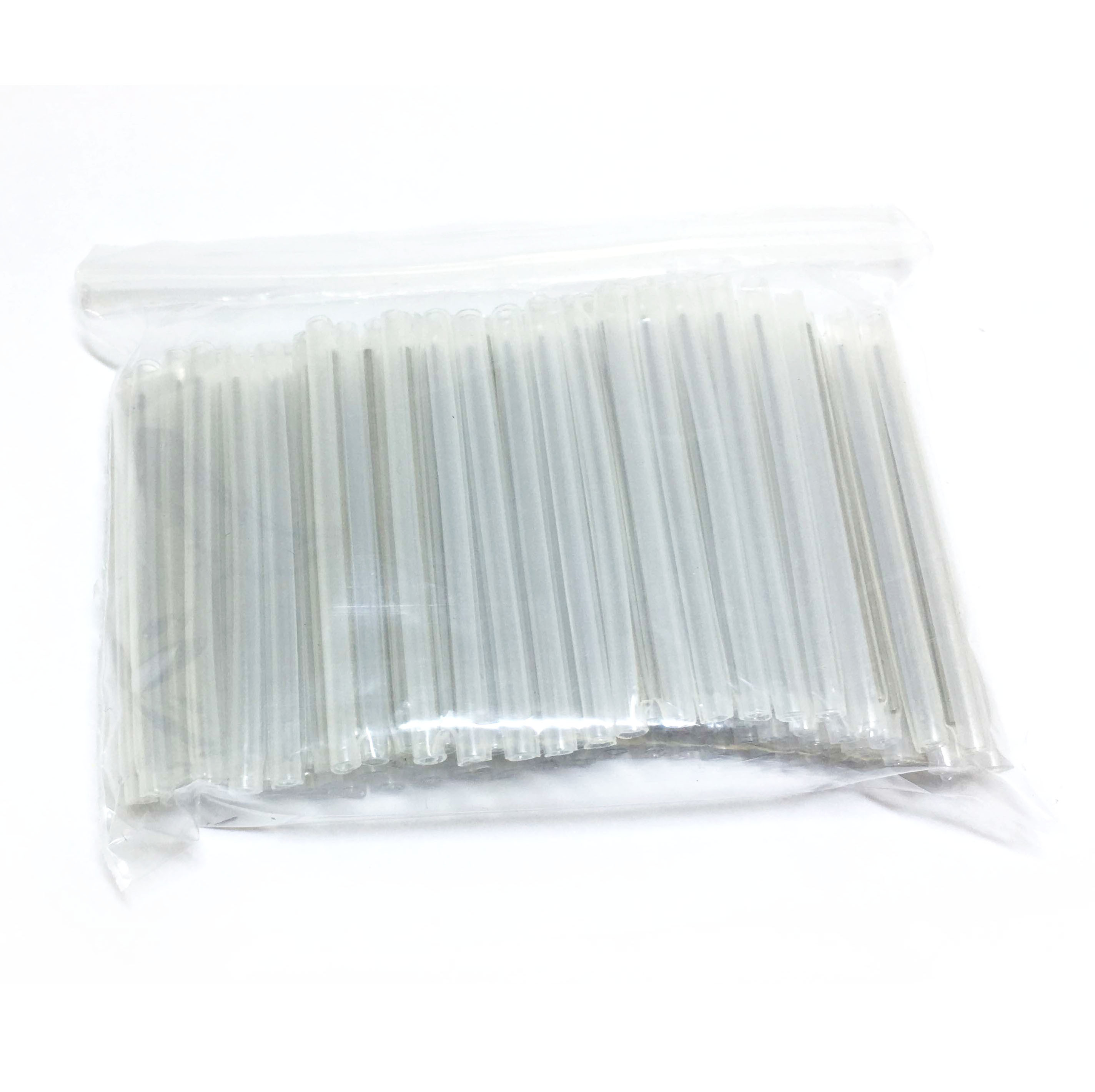

Packing:

100pcs/ small bag.

30000pcs/big bag.

Box dimension: 45*26*53 cm

Packing capacity: 40,000pcs/ box



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
