Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test

  • Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test
  • Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test
  • Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test
  • Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test
  • Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test
Place of Origin China
Brand Name DVP
Certification ISO9001
Model Number DVP-740
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Protection box, carton box, wooden box
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T
Supply Ability 5000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Average Splice Loss 0.01dB~0.04dB Tention Test 2.0N
Fiber SM, MM, DS, NZ-DS, EDF Return Loss 60dB
Name Fusion Splicer Machine
Highlight

fiber optic fittings

,

fiber optic tools and equipment
Leave a Message
Product Description

Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test





We can supply most of China fiber optic fusion splicer machine such as DVP brand, KL brand, Ruiyan brand, etc. If you need other model of fusion splicing machine.





DVP-740 fusion splicer features:

- It can applicable fibers such as SM/MM/DS/NZ-DS/EDF.

- 8 Sec. splice time, 40 Sec. tube-heat time.

- Reversible monitor with control panel on each side.


- Compact & Light weight (3.3kg with battery).


- SYSTEM TEST ensures the best working condition.


- Auto check fiber end face.


- Auto calibrate parameters.


- Store 8000 groups of splice results, and can connect to computer


- 8 Kind of Language options: English, Korean, Russian, Portuguese, French, Spanish, German, Chinese.


- Large capacity internal battery ( Lion battery 12V 10,000mAh can guarantee the outdoor work. Normally when the user operate by the right way, the battery can really offer more than 200 times of continuous splices and heats when it is used in outside.)

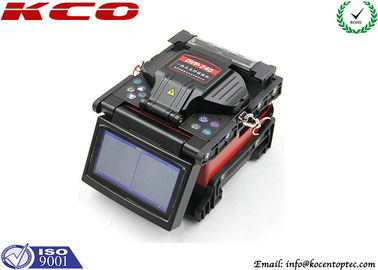

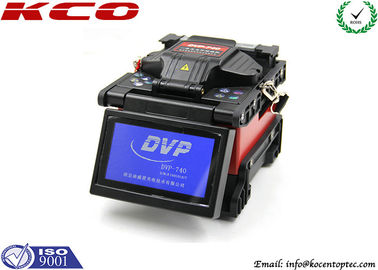

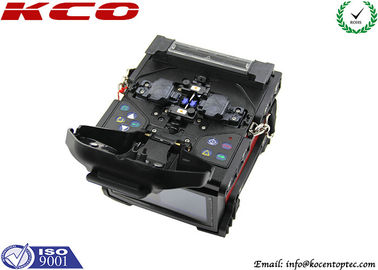

DVP-740 fusion splicer product pictures:



Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test 0





DVP-740 fusion splicer specifications:

Applicable fibers SM, MM, DS, NZ-DS, EDF
Cladding diameter 100 to 150um
Coating diameter 100 to 1000um
Fiber cleaved length 8-22mm (standard)
Splicing mode Auto & Manual
Average splice loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return loss ≥ 60dB
Environment conditions -25~+50°C (operation temperature), 0~95%RH (humidity), 0~5000m (altitude)
Storage environment -40~ +80°C (temperature) , 0~95%RH (humidity)
Protection sleeve length 20mm ,40mm ,60mm
Tension test 2.0N (Standard)
Language English, Chinese, Korean, Russian,Spanish etc.
Interface RS232 interface & video output
Power supply AC adaptor: 85~260V input voltage
Internal battery: 12V voltage, 10Ah, more than 200 times of continuous splices and heats
DC adaptor: 12V voltage,optional multipurpose external battery
Dimension 142(W)×122(H)×138(D)mm
Weight 3.3kg



DVP-740 fusion splicer standard packaging:

Optical splicing machine DVP-740: (1pc)

Internal Battery: (1pc)

Charger: (1pc)

Spare Electrodes: (1pc)

Cooling Tray: (1pc)

Manual Instruction: (1pc)

Carry Case: (1pc)

Fiber Cleaver: (1pc)

Fiber Stripper: (1pc)

AC Adaptor: (1pc)

AC Power Cord: (1pc)

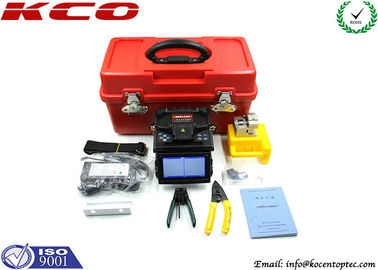

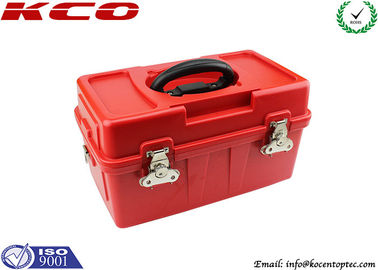

DVP-740 fusion splicer packing ways:

Auto DVP-740 Fiber Optic Fusion Splicer Machine for FTTH 2.0N Tention Test 1
