Fiber Optic OTDR Launch Cable Box Dead Zone Eliminator Single Mode G657A1 1km

SM G652D 1000M Fiber Optic OTDR Launch Cable Box Connector SC For PON Test

OTDR Launch Cable Box Descriptions:
- Mini type launch cable designed to aid in the testing of fiber optic cable when using an OTDR.

- OTDR Launch Cable Box is designed to aid in the testing of fiber optic cable when using an OTDR Launch Cable Box is used with Optical Time Domain Reflectometers (OTDRs) to help minimize the effects of the OTDRs launch pulse on measurement uncertainty.

- Designed to aid in the testing of fiber optic cable when using an OTDR.

- Available in many different configurations and fiber lengths.

- Effect of blind spots on OTDR measurement accuracy we refer to a series of "blind spots" caused by saturation of OTDR receiver caused by reflection from feature points such as active connectors and mechanical joints as blind spots.

- The blind area in theoptical fiber can be divided into event blind area and attenuation blind area: the length distance between the starting point of the reflection peak and the saturation peak of the receiver caused by the interference of the active connector is called eventblind area;

- The distance between the starting point of the reflection peak and the point at which other events can be identifieddue to the interference of active connectors in the optical fiber is called the attenuation blind area.For OTDR, the smaller theblind spot, the better.

- The blind area will increase with the increase of the width of the pulse width.

- Although the increase of the pulse width increases the measurement length, it also increases the blind area of themeasurement.

- Therefore, when we test the optical fiber, we need to use narrow pulses to measure the optical fiber attached to OTDR and the adjacent event points, while we need to use wide pulses to measure the remote end of the optical fiber.

Features:
- Case can hold up to 2,000 meters of fiber.

- Many kinds of connectors are available, such as: SC/UPC, SC/APC, FC/UPC, FC/APC, E2000/UPC, E2000/APC, ect

- Handy, lightweight, powerful, tablet-inspired design, small volume, easy to carry.
- Help to make a more precise measurement with an OTDR.
- Discloses the insertion loss and reflectance of the near-end connection.
- Built-in Cable Management Helps to reduce cable stress and save space.

- Pulse Suppressor, Launch Box, Delay Line, Installation/Testing, Training, Calibration.

- Compound Latch for positive seal and easy opening with locking feature.

- Non­metal construction will not dent, corrode, or conduce electricity.

- - Water resistant, crushproof and dust proof.

Informations:

- Connector type: SC, LC, ST, FC, E2000 etc.
- Length: from 100m to 4000m.
- Box Material: Plastic.
- Box Color: Yellow.
- Operating temperature -40°C to +80°C
- Type of fiber: Single mode, Multimode, customized
- Back Reflection(RL) < -55 DB

(1) Apex offset: 0 - 50 um
(2) Radius of curvature 7 – 25 nm
(3) Fiber roughness: 0 – 25 nm
(4) Ferrule roughness: 0-50 nm

Specifications:

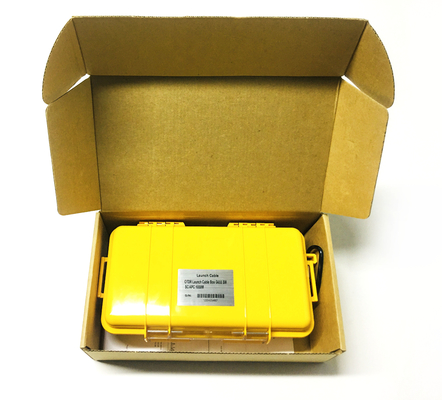

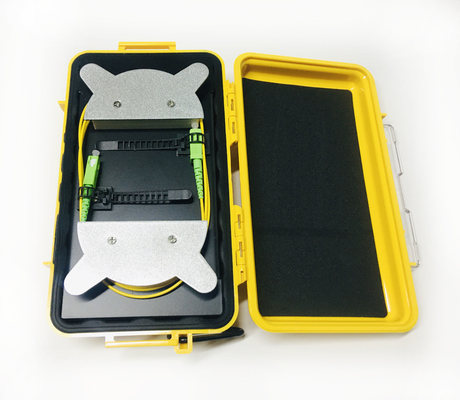

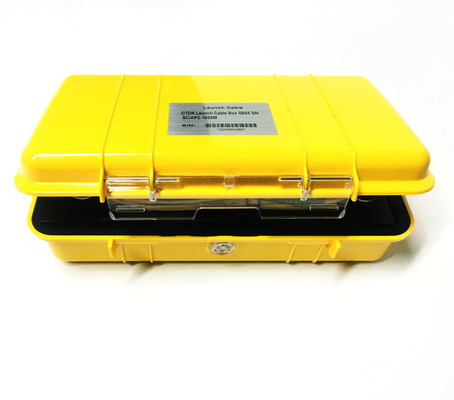

Product pictures:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
