1POTS 1GE 3FE 2.4G Wifi GPON ONU Wireless Router Huawei EG8141A5 Optical Network Unit

EchoLife Huawei EG8141A5 1GE 3FE LAN 2.4G WIFI 5dbi Antenna ONU XPON GPON EPON ONU

Huawei EG8141A5 Description:

- The EchoLife EG8141A5 is a routing-type ONT in the all-optical access solution, , is a high-end home in FTTH solution.

- It uses the GPON technology to implement ultra broadband access for users, and provides 1GE port, 3 FE ports,1 POTS port and 1 2.4G WiFi port.

- The high forwarding performance ensures the user experience of data and HD video services, and provides customers with an ideal all-optical access solution and future-oriented service support capability.

- By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

- The EG8141A5 provides one POTS ports,four FE Internet port.

- The EG8141A5 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

Huawei EG8141A5 characteristics:
- Full compatible with ITU-T G.984.

- Conform to IEEE802.3ah standard.
- Support port-based rate limitation and bandwidth control
- Integrated OMCI remote configuration and maintenance function.
- Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONT auto-discovery/Link detection/remote upgrade of software;
- Support VLAN division and user separation to avoid broadcast storm;
- Support power-off alarm function ,easy for link problem detection
- Support broadcasting storm resistance function
- Support port isolation between different ports
- Support ACL and SNMP to configure data packet filter flexibly
- Specialized design for system breakdown prevention to maintain stable system
- Support software online upgrading
- EMS network management based on SNMP ,convenient for maintenance

- Single ONU supports up to 1 LLID.

- Support 4094 VLANs (802.1Q).

- Support IGMP Snooping.

- Support Ethernet port ratelimit loop detection.

- Support power failure alarm.
- Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services.

- Support frame filtering and suppression.

- Support standard 802.1Q Vlan function, support VLAN conversion.

- Support Dynamic Bandwidth Allocation (DBA) function.

- Support QoS, including traffic flow classification, priority marking, queue anddispatch, traffic shaping and traffic control, etc.

- Support lightning protection for power supply and lightning protection for service port.

Huawei EG8141A5 Physical features:

- Power supply: 12VDC

- Power consumption: 6W

- Temperature:

Working temperature:0~55℃
Storage temperature: -30~60℃

- Relative humidity: 10~90% (non-condensing)

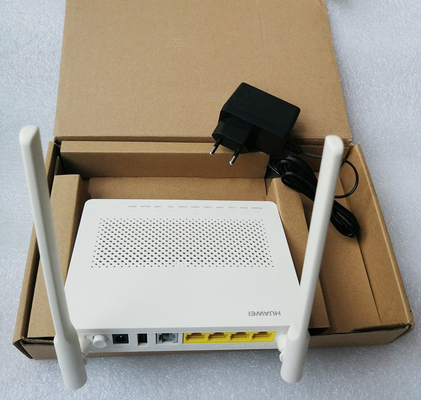

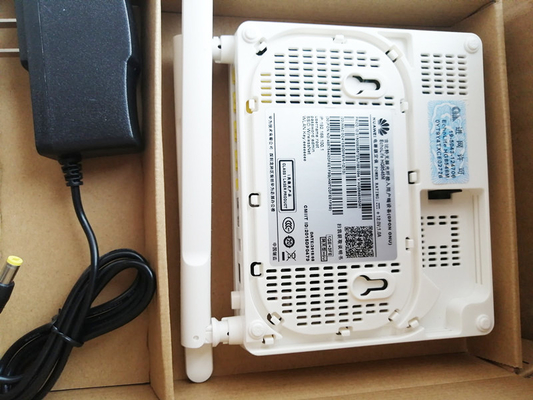

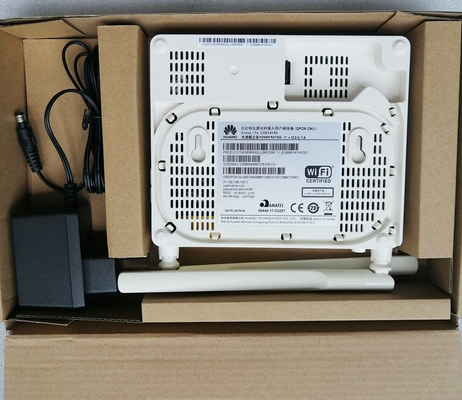

Huawei EG8141A5 photo:

Huawei ONU Main Catalogy:

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
