Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router

  • Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router
  • Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router
  • Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router
  • Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router
  • Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router
Place of Origin China
Brand Name N/A
Certification ISO9001
Model Number HG8546M
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 3-5 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 50000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type GPON ONU PON Port SC/UPC
GE Port 1GE + 3FE Telephone 1 Port
Firmware English Dimension 240*160*35(mm)
Wifi 2.4G Compatible OLT Huawei Series
Highlight

Huawei HG8546M GPON ONT ONU

,

1GE GPON ONT ONU

,

3FE USB WiFi Router
Leave a Message
Product Description

Optical Terminal Unit 1GE+3FE+1POTS+1USB+2.4G WiFi Huawei HG8546M GPON ONU ONT



Huawei HG8526M Description:

- The EchoLife HG8546M is an indoor optical network terminal (ONT) in FTTH solution.

- Huawei HG8546M FTTH is an Optical Terminal Unit with 1 GE+3 FE+1 POTS+1 USB+2.4G WiFi or 4 FE+1 POTS+1 USB+2.4G WiFi.

- This is a high-end home gateway in Huawei FTTH solution.

- By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

- It can support pure data, Data +Voice, Data+ Voice+ WIFI and other service accessing type.

- HG8546M ONU supports standard OMCI, can provide up to 1.25Gbps uplink and 2.5Gbps downlink high-speed transfer rate.

- It can fully meet ISPs FTTBFTTHFTTO equipment needs The high-performance forwarding capability effectively guarantees the service experience of voice, data, and high-definition video.

- The HG8546M provides two POTS ports, and four GE/FE auto-adapting Ethernet ports. TheHG8240 features high-performance service forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services.

- Therefore, the HG8546M provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment

Huawei HG8526M Feature:

* Class B+
* Type B (single-homing & dual-homing)
* Ethernet port-based VLAN tags and tag removal
* 1:1 VLAN, N:1 VLAN, or VLAN transparent
* QinQ VLAN

* Bi-directional FEC
* SR-DBA and NSR-DBA

* Receiver sensitivity: -27 dBm
* Overload optical power: -8 dBm
* Wavelengths: US 1310 nm, DS 1490 nm
* Wavelength blocking filter (WBF) of G.984.5
* Flexible mapping between GEM Port and TCONT
* Consistent with the SN or password authentication defined in G.984.3
* Limit on the number of learned MAC addresses
* MAC address learning
* GE: Auto-adaptive 10 Mbit/s, 100 Mbit/s or 1000 Mbit/s
* FE: Auto-adaptive 10 Mbit/s, 100 Mbit/s
* 711A/μ, G.729a/b and G.722


Huawei HG8526M Parameter:



Brand
Huawei
Model
HG8546M
Power supply
12V,1.5A
Power consumption (full loaded)
≤15W
Outline dimensions (mm) (W*D*H)
240*160*35mm
Weight (in maximum configuration)
≤0.5kg
WIFI
Antenna 2×2, 5dBi external antenna
EIRP Max 25dBm
VoIP
REN Max 5REN
Connector 1x RJ11
Ringing 65V RMS ringing voltage
USB
Max 1A for each port
Environmental requirements
Working temperature:0ºC~50ºC
Storage temperature:-40ºC~70ºC
Working humidity:5%~90% Storage temperature:5%~95% no condensing
Ethernet
Standard;IEEE802.3 IEEE802.3au IEEE802.3x
Interface;1x 10/100/1000BASE-T+310/100Base-T RJ45
Auto negotiation
Auto MDI/MDIX

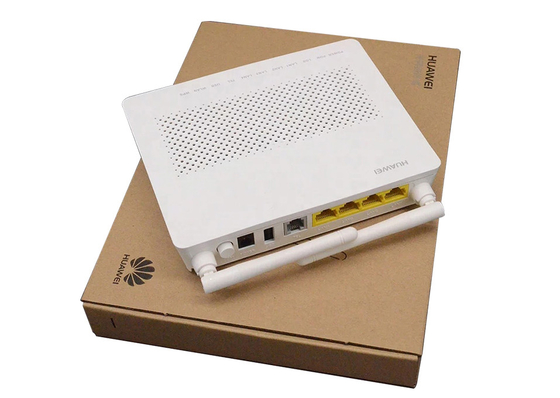

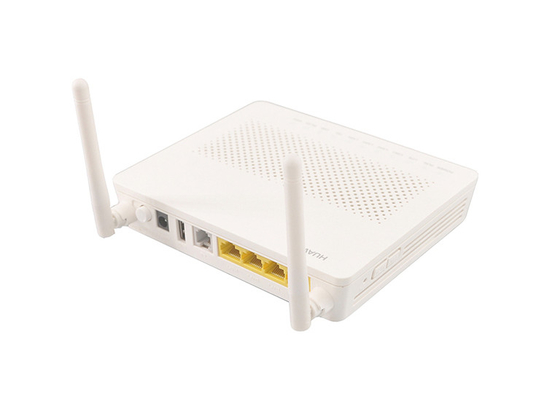

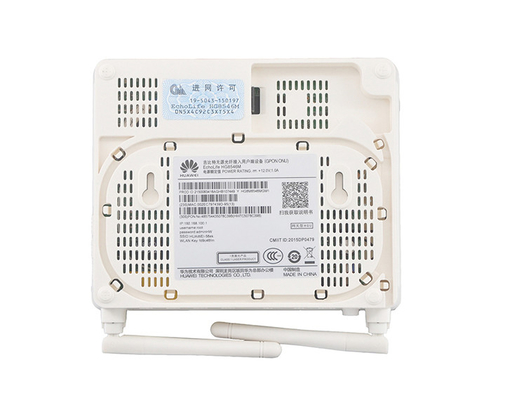

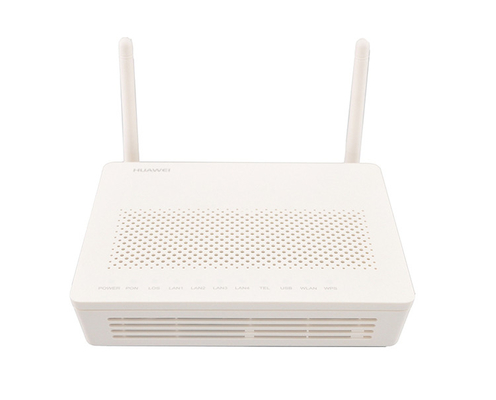

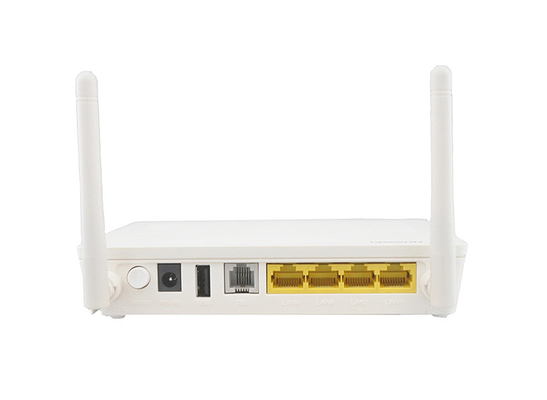

Huawei HG8526M photo:

Huawei HG8546M GPON ONT ONU 1GE 3FE LAN Ports 1 Voice Port USB WiFi Router 0



Huawei ONU Main Catalogy:

HG8010H
GPON 1*GE ONU
EG8010H
GPON 1*GE ONU
HG8311
GPON 1*GE ONU
HG8010
EPON 1*GE ONU
HG8240F
EPON 4*FE+2Tel onu
HG8240F
GPON 4*FE+2Tel onu
HG8040F
GPON 4*FE ONU
HG8040F
EPON 4*FE ONU
HG8540(M)
GPON 1*GE+3FE ONU
HG8310M
GPON 1*GE ONU
HG8340M
GPON 4*FE ONU
HG8342M
GPON 4*FE+2Tel ONU
HG8346M
GPON 4*FE+2TEL+WIFI ONU
HG8546M
GPON 1*GE+3FE+1TEL+1USB+WIFI ONU
HG8247H
GPON 4GE+2TEL+WIFI+1USB+CATV ONU
HS8546V5
GPON 4*GE+1TEL+1USB+WIFI(2.4G/5G)ONU
EG8145A5
EPON/GPON 4GE+1TEL+2USB+WIFI(2.4G/5G)
EG8145V5
EPON/GPON 4GE+1TEL+2USB+WIFI(2.4G/5G)
HN8245Q
UP Date:10*ge 4ge+2tel+2usb+wifi(2.4G/5G)
MA2671-4T
GPON EPON 4GE ONU
MA5675-I
GPON 1GE+1FE+1TEL+WIFI+USB
MA5675
GPON EPON 4GE+4TEL+WIFI ONU
MA5675M
GPON EPON 4GE+4TEL+WIFI ONU
HG8321
GPON 2FE+1TEL ONU



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
