Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal

  • Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal
  • Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal
  • Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal
  • Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal
Place of Origin China
Brand Name N/A
Certification ISO9001
Model Number HG8310M
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 3-5 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 50000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type GPON ONU PON Port SC/UPC
GE Port 1 Port Configuration 1GE Bridge
Firmware English Dimension 199*135*30 (mm)
Similar Model AN5506-01A, HG8010H Compatible OLT Huawei Series
Highlight

Huawei Echolife HG8310M

,

HG8310M 1GE GPON ONU

,

EPON XPON ONT GPON Terminal
Leave a Message
Product Description



Good quality 1GE GPON ONU EPON XPON ONT GPON Terminal Huawei Echolife HG8310M



HG8310M Characteristic:

- Link monitoring: E2E link detection is achieved using 802.1ag Ethernet OAM.
- High speed forwarding: 900 Mbit/s forwarding in the NAT scenario.
- IPv6 Capability: support IPv6/IPv4 dual stack and DS-Lite.

- Plug-and-play: services can be deployed by one click on the NMS, and on-site configuration is not required.
- Remote diagnosis: Remote fault locating is implemented by the loop-line test of POTS ports, call emulation and PPPoE dialup emulation initiated by the NMS.



HG8310M description:

- Huawei HG8310M FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution.

- By using GPON technology, ultra-broadband access is provided for home and SOHO users. The home gateway then can be connected to a PC, Mobile Terminal, STB, or Video phone to provide high-speed data, video services.
- This model supports one GE Ethernet interface and effectively guarantees data and HD video service experience through
high-performance forwarding capability and also this provides customers with all-optical access solution and future-oriented service support capabilities.

HG8310M Feature:

* 1p priority
* COCv4

* OMCI/Web UI

* SP/WRR/SP+WRR

* Variable-length OMCI messages
* Active/Passive rogue ONT detection and isolation
* PPPoE/DHCP simulation testing
* Ethernet port rate limitation
* Broadcast packet rate limitation
* Flow mapping based on the VLAN ID,port ID, or/and 802.1p
* Indicator power saving
* Power consumption reduction of idle components in power-saving state
* MAC address filtering
* Dual-system software backup and rollback
* 1ag Ethernet OAM
* Optical link measurement and diagnosis
* Loopback check Multicast
* IGMP v2/v3 snooping
* MLD v1/v2 snooping


HG8310M Parameter:



Technical items Descriptions
Fiber port 1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
WLAN IEEE802.11b/g/n,300Mbps, a built-in antenna
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Throughput can reach 900Mbps or more
DC power 12V 1A, external AC-DC power adapter
Button Reset, power
Power ≤8W
Operation Working temperature: -5-+55℃ working humidity:10-90%(non-condensation)
Storage Storage temperature: -30℃-+60℃ storage humidity: 10-90%(non-condensation)
Dimension 130*105*30mm(length*width*height)
Net weight ≤0.2Kg

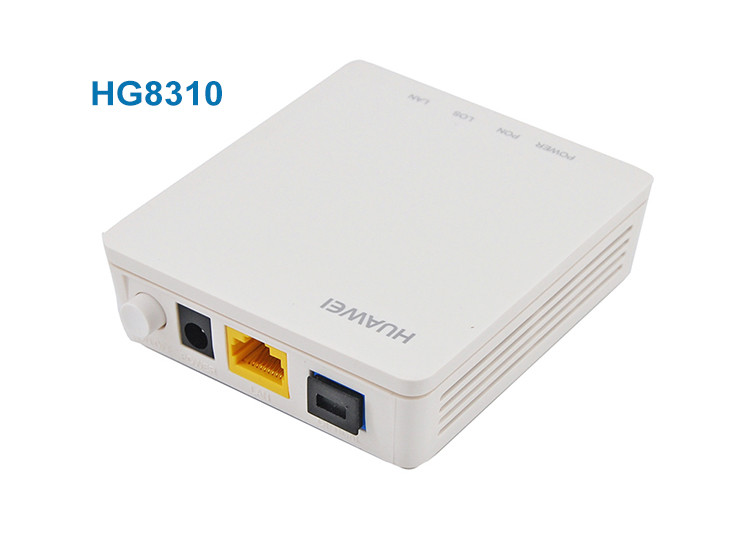

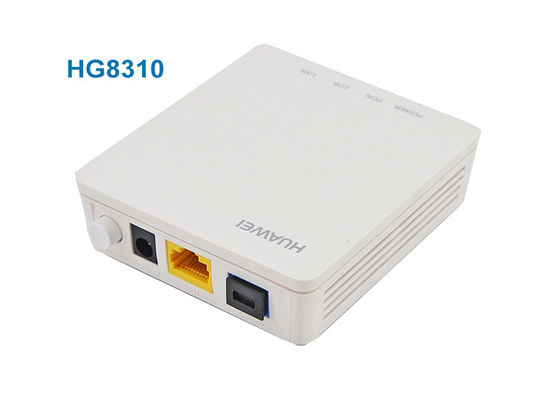

HG8310M photo:

Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal 0

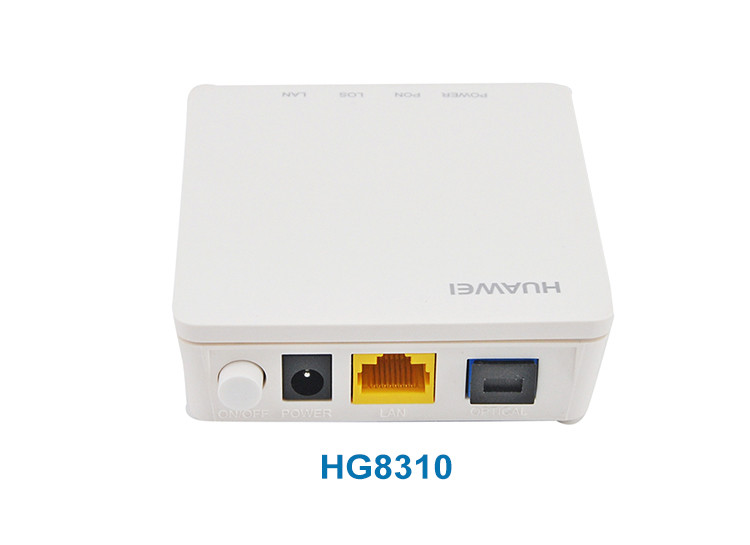

HG8310M size:

Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal 1

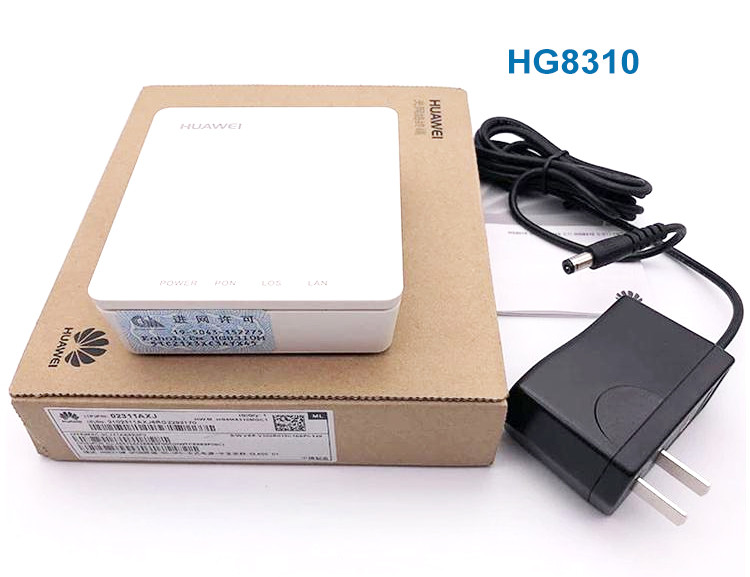

HG8310M package:

Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal 2

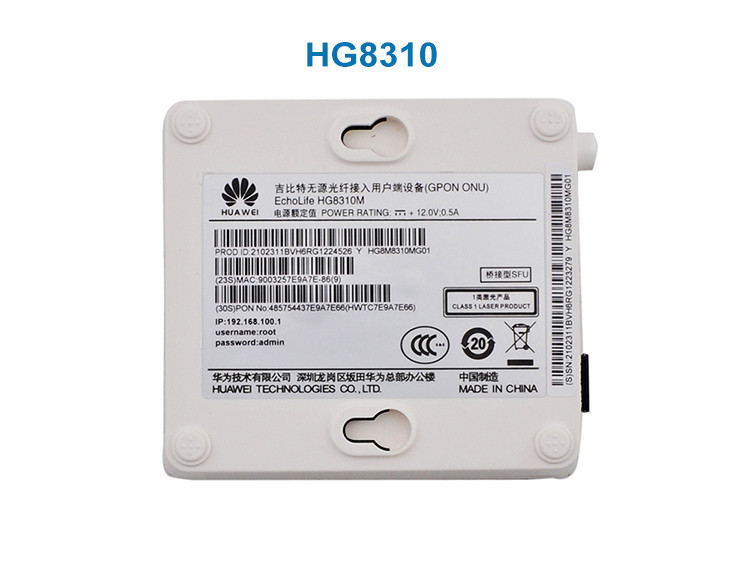

HG8310M usage:

Huawei Echolife HG8310M 1GE GPON ONU EPON XPON ONT GPON Terminal 3



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
