Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application

  • Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application
  • Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application
  • Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application
  • Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application
Place of Origin Taiwan
Brand Name Pro's Kit
Certification ISO9001
Model Number KCO-8BK-326
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material S50C Application FTTH, CATV
Size 148mm P/N KCO-8BK-326
Packing Weight 0.3kg Cable 0.9mm~3.0mm
Highlight

fiber optic accessories

,

fiber optic tools and equipment
Leave a Message
Product Description





Taiwan Pro'skit Fiber Optic Cable Stripper / Tri-hole Optical Cable Striper / FTTH Tools



Kocent Optec Limited supply full series of Pro's Kit fiber optic tools for FTTH project.

Include:

- Power meter,

- Light Source,

- Fiber Optic Cable Stripper,

- FTTH Drop Cable Stripper,

- Fiber Optic Crimper,

- VFL,

- Fiber Optic Cleaver,

- Aramid Kelvar Cutter, ...



Product Information:
- Three hole fiber optic stripper model performas all common fiber stripping functions.

- this fiber optic stripper strips the 1.6-3 mm fiber jacket down to the 600-900 micron buffer coating, the second hole strips the 600-900 micron buffer coating down to the 250 micron coating and the third hole is used to strip the 250 micon cable down to the glass fiber without nicks or scratches

- This fiber optic stripper is of high quality and easy for operation, which can help you work well in house working and project
working. It is a small hand tool used by telecommunication and network technicians.

- It can provide a quick, easy, and reliable way to remove the fiber jackets from an optical fiber.



Descriptions:

-The use of temperature is -20°C ~ +50°C

- First hole to strip 2-3mm outer jacket insulation
- Second hole to strip 250μm buffer coating to 125μm optical fiber
- Third hole to strip the 125um glass fiber
- 140 µm diameter hole and V-opening in blade allows removal of 250 micron buffer coating from 125 micron fiber
- Pre-set at the factory

- No adjustments needed
- Will not scratch or nick glass fiber
- All stripping surfaces are manufactured to precise tolerances to assure clean, smooth strips
- Comfort-grip, ergonomic handles
- Lock to hold tool closed when it is not in use



Applications:

- For wire installation into network and telecommunication equipment.

- Indicated type for different module block MDF from kinds of communication company, such as: Krone,Tyco, 3M, Corning, Ericsson, ZTE, HUAWEI, AMP and so on.

- Various products make the job more convenient and special.

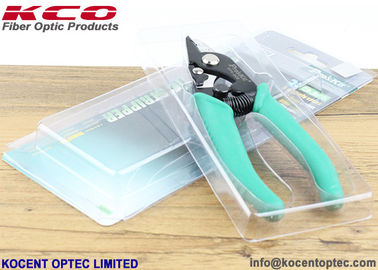

Package:



Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 0

Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 1

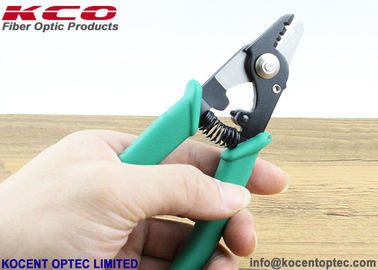

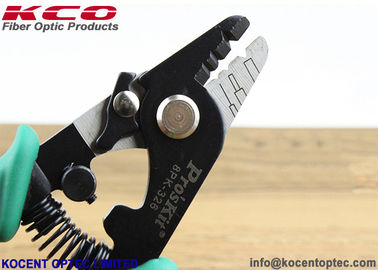

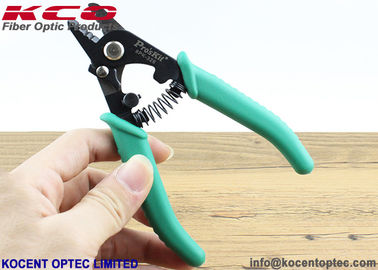

Product photo:



Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 2

Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 3

Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 4





Pro's Kit Product Series:



Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 5



Relation products:



Proskit FTTH Fiber Optic Cable Stripper S50C Material 148mm Size FTTH CATV Application 6



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
