ADSS Fibre Optic Cable All Dielectric Self Supporting Aerial Cable

  • ADSS Fibre Optic Cable All Dielectric Self Supporting Aerial Cable
  • ADSS Fibre Optic Cable All Dielectric Self Supporting Aerial Cable
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number All Dielectric Self-supporting Aerial Cable
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden roll, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000km/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material LSHZ, PVC Name ADSS Cable
Length 2km~3km Each Roll Application Indoor, Outdoor Or Customized
Fiber Single Mode, Multimode Model All Dielectric Self-supporting Aerial Cable
Highlight

optical fibre cable

,

tight buffered fiber optic cable
Leave a Message
Product Description

ADSS Fibre Optic Cable All Dielectric Self Supporting Aerial Cable



Characteristics:

- ADSS Fibre Optic Cable Small cable Dia, light weight, 1500m span, low attached load on tower.

- Tension strength is over 90KN.

- Non-metal structure, good insulation, anti-thunder.

- anti gun fire.

- Fine production technology, even force for aramid fiber,with superior stress flexibility.

- Anti electro-corrosion.

- Adapt for bad climate.

- May construct without power cut, a power line failure doesn’t influence cable’s normal transfer.

- loose cover GYTA cable core, non-metallic core reinforced.

- Tension units are elastic modulus aramid fiber.

- Electric trace resistant outer sheath is adopted to run safely under a circumstance of space electric field (E) ≤25KV/m.



Applications:

- Erect on the same pole with power line in new and old power line.

- A long span

- Areas of strong electric field, multi-thunder, etc



KOCENT OPTEC LIMITED can supply all diameter of single mode, multimode of indoor fiber optic cable such as 0.6mm, 0.9mm, 1.6mm, 1.8mm, 2.4mm, 2.8mm, 3.0mm etc with PVC or LSHZ cover for fiber optic patch cable and fiber optic pigtail production. We can make simplex, duplex or multi-fibers if you want. We also can supply OEM, ODM servicer for fiber optical cable, can help you print your own Brand LOGO on the cable and package. Please contact with us by phone or by e-mail to get more informations about them.



Fiber optic cable production:

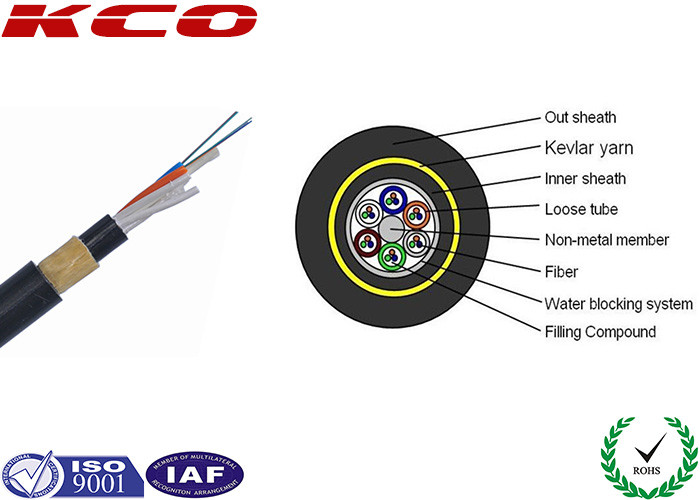

ADSS Fibre Optic Cable All Dielectric Self Supporting Aerial Cable 0



Indoor fiber optic cable Technical Parameters:

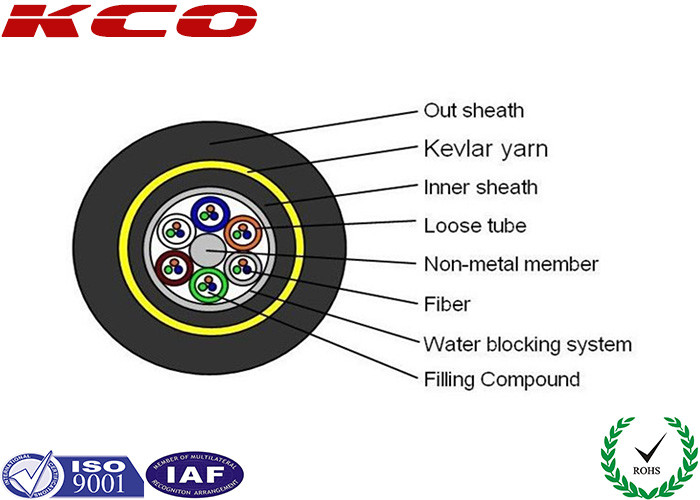

ADSS with grade A sheath (Parts)
Structure drawing Order Type Model ADSS-PE 24 M15.5/ A ADSS-PE48 M17.7 / C ADSS-PE72 M21.2 / D
  Fiber count 24fiber 48fiber 72fiber
Size of tube φ2.1mm φ2.6mm φ3.0mm
Cable diameter φ13.4mm φ14.9mm φ16.4mm
Cable weight 139kg/km 172kg/km 209kg/km
RTS 38.8kN 44.3kN 56.6kN
Linear expansion coefficient 2.2×10-6/℃ 2.0×10-6/℃ 1.8×10-6/℃
Young’s modulus 16.5kN/mm2 17.5kN/mm2 18.6kN/mm2



ADSS with grade B sheath (parts)
Structure drawing Order Type Model ADSS-AT 24 M14 / A ADSS-AT48M15.2 / C ADSS-AT72 M21.2 / D
  Fiber count 24fiber 48fiber 72fiber
Size of tube φ2.1mm φ2.6mm φ3.0mm
Cable diameter φ13.2mm φ14.3mm φ16.3mm
Cable weight 146kg/km 169kg/km 220kg/km
RTS 35kN 37.9kN 52.9kN
Linear expansion coefficient 4.5×10-6/℃ 4.8×10-6/℃ 3.6×10-6/℃
Young’s modulus 15.5kN/mm2 14.9kN/mm2 17.9kN/mm2



ADSS with grade B sheath (parts)
Structure drawing Order Type Model ADSS-AT144 M12.3 / D
  Fiber count 144fiber
Size of tube φ3.0mm
Cable diameter φ20.7mm
Cable weight 344kg/km
RTS 30.8kN
Linear expansion coefficient 3.5×10-6/℃
Young’s modulus 6.22kN/mm2



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
