1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters

  • 1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters
  • 1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters
  • 1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters
  • 1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x4-SCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Insert Type Pigtail Length 0.3m
Splitter Type 1*4 1x4 1:4 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-LGX-1x8-SCU
Connector Color Blue Pigtail Color White
Highlight

1x4 ABS Box PLC Splitter

,

Cassette Slot Fiber Optic Splitters

,

LGX Insert Fiber Optic Splitters
Leave a Message
Product Description

1:4 1x4 Cassette Slot Type Abs Box Mini Plc Cassette Fiber Optic Lgx Splitter

Descriptions:

- The fiber optic splitters are designed for long-term reliability, superior performance.

- It is a wide range of usage in fiber optics including optical transmission, long haul, subscriber loop, fiber to the home, telecommunications, CATV, test equipment, optical fiber sensors, data communications and wide-area network.

- The fiber optic splitters are designed for consistent performance, low optical Insertion loss, low polarization Dependent Loss, high reliability and stability, superior environmental and mechanical characteristics, and fast installation.

- The fiber optic splitters also enable more effective monitoring and management of fiber optical networks.

- This  Plc Cassette Fiber Optic Lgx Splitter come with 1 input and 4 output with SCUPC Connector terminal.





Feature:
- Low insertion loss and low PDL

- High Reliability and Stability
- High Channel counts
- Wide wavelength range

- Various coupling ratio
- Environment stable
- Single-mode and multimode available
- Customized packaging and configuration

Applications:

- PON, GPON

- FTTx Construction
- Fiber Optical communication system
- Fiber Optical access networks
- Fiber Sensor
- Fiber CATV networks
- Local area networks


Specification: (without connector)



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   1x2 1x4 1x8 1x16
Insertion Loss with Connector (Max) dB 4.1/4.4 7.4/7.9 10.5/11.0 13.8/14.1
Insertion Loss without Connector (Max) dB 3.8/4.1 7.1/7.6 10.2/10.7 13.5/13.8
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3
Return Loss dB ≥ 50(UPC); 60(APC)
Directivity dB ≥55



Parameter Unit Specification (P Grade)
Operation Wavelength nm 1260~1650
Channel Number   2x2 2x4 2x8 2x16
Insertion Loss with Connector (Max) dB 4.4/4.6 7.7/8.1 10.8/11.3 14.1/14.4
Insertion Loss without Connector (Max) dB 4.1/4.3 7.4/7.8 10.5/11 13.8/14.1
Uniformity (Max.) dB 0.6 0. 7 0.8 1.0
Polarization Dependent Loss dB 0.2 0.2 0.2 0.3
Return Loss dB ≥50(UPC); 60(APC)
Directivity dB ≥55



Product photos:

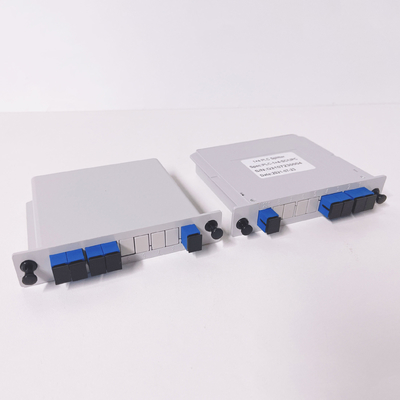

1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters 0

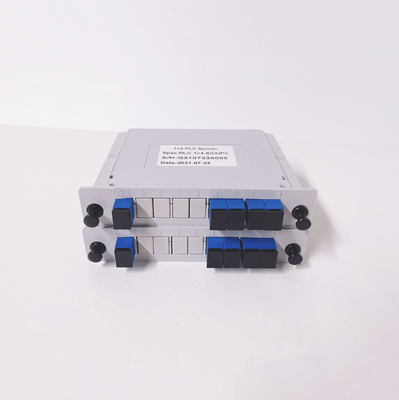

1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

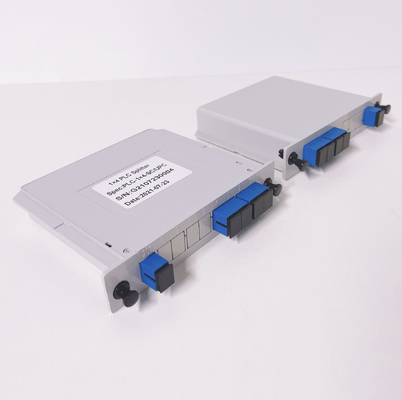

1x4 1:4 1*4 Cassette Slot Type ABS Box PLC Splitter LGX Insert Fiber Optic Splitters 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
