LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector

  • LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector
  • LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector
  • LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x8-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Insert Type Pigtail Length 0.3m
Splitter Type 1*8 1x8 1:8 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-LGX-1x8-SCA
Connector Color Green Pigtail Color White
Highlight

LGX Type Fiber Optical Splitter Box

,

1x8 Fiber Optical Splitter Box

,

SC APC LGX Box PLC Splitter
Leave a Message
Product Description

1:8 1x8 Single Mode SM G657A SC/APC LGX Type Fiber Optical Splitter Box

Descriptions:

- The PLC Fiber Optical Splitter Box is branching devices that is used to distribute optical signals to multiple locations for processing.

- In optical networks,the PLC Fiber Optical Splitter Box is often necessary to split an optical signal into many identical signals, or to combine many signals into a single signal.

-  PLC Fiber Optical Splitter Box is a type of optical power management device that is fabricated using silica optical waveguide technology.

- The PLC Fiber Optical Splitter Box are designed for FTTx Passive Optical Networks, CWDM, DWDM and optical cable TV System.

- PLC Fiber Optical Splitter Box is responsible to distribute optical signals from Central Office (CO) to multiple premise locations.
- 1x8 the Fiber Opical LGX Splitters can distribute or combine 1 optical signal into 8 outputs fibers.



- Kocent Optec Limited PLC Passive Fiber Optic Splitter catalogy:
1/ Bare fiber type PLC Passive Fiber Optic Splitter
2/ Mini tube type PLC Passive Fiber Optic Splitter
3/ ABS box type PLC Passive Fiber Optic Splitter
4/ Rack mount type PLC Passive Fiber Optic Splitter
5/ LGX box type PLC Passive Fiber Optic Splitter


Application:
- LAN
- CATV System
- FTTH Network
- FTTX Deployment
- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications



Feature:
Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
High Reliability and Stability Good channel-to-channel uniformity Small size with high reliability and stability



Operation conditions:
Storage/Operating Temperature: -40°C to + 85°C

Standards:
Comply with standard Telcordia GR-1209-CORE and GR-1221-CORE,RoHS requirements.


Insertion Loss:
- Test Wavelength: 1310-1550 nm
- Required Value: P Grade
- Test can be performed on any channel

Return Loss:
- Test Wavelength: 1310-1550 nm
- Required Value: >55dB
- Test can be performed on any channel

Directivity:
- Test wavelength: 1310-1550 nm
- Required Value: >55 dB

On Dependent Loss (PDL):
- Test Wavelength: 1310-1550 nm
- Required Value: < 0.2 dB

Specification:

Item
Unit
Technical Data
Description
-
1x8 Fiber Opical LGX Splitters SC/UPC
Wavelength
nm
1260-1650
Insertion Loss
nm
≤10.7
Channel Uniformity
dB
≤1.0
Return Loss
dB
≥50
Directionality
dB
≥55
Polarization Dependent Loss
dB
≤0.2
Package Size
mm
130*100*24 mm
Fiber Color
-
Blue Orange Green Brown or any color
Loose Tube Color
-
White
Maximum Power
mw
300
Operating Temperature
℃
-10~75
Storage Temperature
℃
-40~85
Fiber Type
-
G657A1
Package Style
-
10pcs /small carton
Packing Information
-
Big carton box: 100pcs
Size: 750*270*270mm
Weight: 15 kg

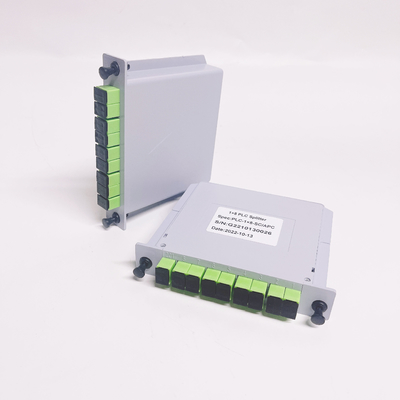

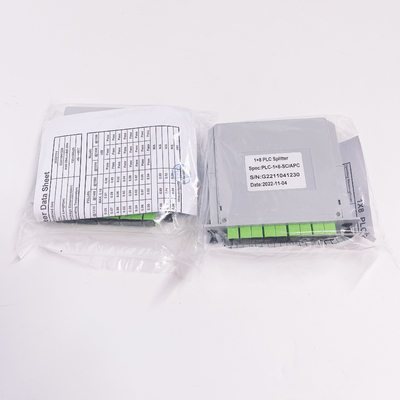

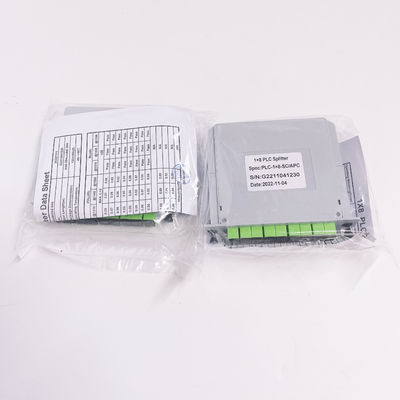

Product photos:

LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector 0

LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



LGX Type Fiber Optical Splitter Box 1x8 1:8 Single Mode SM G657A SC/APC Connector 2

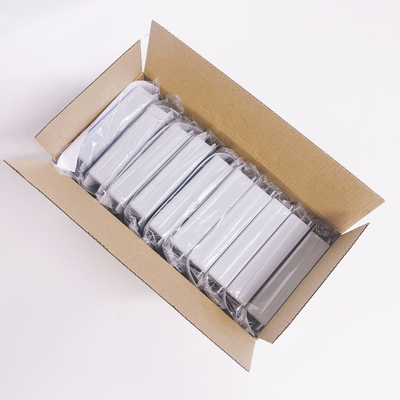

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
