LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter

  • LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter
  • LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter
  • LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LGX-1x16-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Tube Pigtail Length 0.3m
Splitter Type 1*16 1x16 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-LGX-1x16-SCA
Connector Color Green Pigtail Color White
Highlight

LGX Insert 1x16 PLC Splitter

,

0.3m 1x16 PLC Splitter

,

SC Passive Fiber Optic Splitter
Leave a Message
Product Description

LGX Insert Type SCU SCA Adapter 1x16 1*16 PLC Passive Fiber Optic Splitter

Descriptions:

- 1x16 Planar Lightwave Circuit (PLC) Passive Fiber Optic Splitter in Standard LGX Cassette with SC/APC termination.
- 1x16 Passive Fiber Optic Splitter using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
- This PLC optical passive fiber splitter come with 0.9mm multi-color pigtail and SC/APC connector terminal.
- 1x16 Passive Fiber Optic Splitter​ is a 1x16, with 1 input and 16 output fibers with an even split ratio across all fibers regardless of input wavelength.
- 1x16 Passive Fiber Optic Splitter​ can distribute or combine 1 optical signal into 16 outputs fibers.
- Kocent Optec Limited PLC Passive Fiber Optic Splitter catalogy:
1/ Bare fiber type PLC Passive Fiber Optic Splitter
2/ Mini tube type PLC Passive Fiber Optic Splitter
3/ ABS box type PLC Passive Fiber Optic Splitter
4/ Rack mount type PLC Passive Fiber Optic Splitter
5/ LGX box type PLC Passive Fiber Optic Splitter

Product Features:
- Low insertion loss
- Low Polarization Dependent Loss
- Good channel-to-channel uniformity
- Wide Operating Wavelength: 1260~1650nm
- High Reliability and Stability
- Standard LGX Box can use for outdoor splitter box.

Construction:
- Configuration Type: 1×16, 1*16, 1:16
- Fiber Type: G.657A1
- Pigtail Diameter: 0.9mm
- Pigtail Color: multi-colors
- Pigtail Length: 1.0m input / 1.0m output
- Connector Type: SC/APC

Specification:

Wave Length:1260nm / 1650nm
Type:1x16
Insertion Loss (dB) Max:<14.0
Uniformity (dB) Max:<1.5
PLD (dB) Max:<0.3
Directivity Min:55dB
Return Loss (dB) Min:55 (50)
Operating Temperature:<-40 ~ +85°C
Power Handling:300mW



Application:
- LAN
- CATV System
- FTTH Network
- FTTX Deployment
- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications


Product photos:

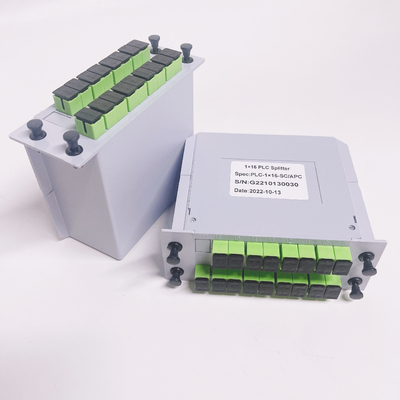

LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter 0

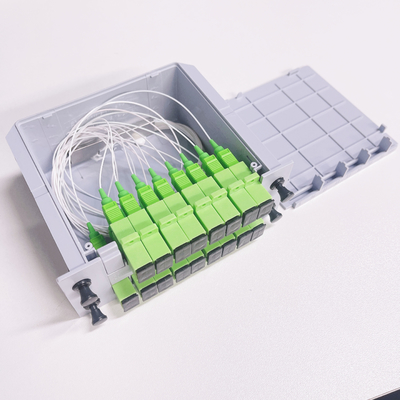

LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter 1

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

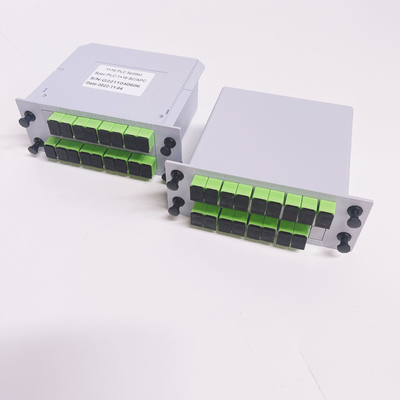

LGX Insert Type 1x16 PLC G652D Splitter SCU SCA Adapter Passive Fiber Optic Splitter 2



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
