PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH

  • PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH
  • PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-MN-1x32-0.9W-1.0M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type Mini Tube Pigtail Length 1.0m, 1.5m
Splitter Type 1*32 1x32 Connector SC/APC
Cable Dia. 0.9mm P/N KCO-MN-1x32-0.9W-1.0M-SCA
Connector Color Green Pigtail Color White
Highlight

SC 1x32 Optical Splitter

,

LSZH 1x32 Optical Splitter

,

SC Connector 1x32 PLC Splitter
Leave a Message
Product Description

Mini Steel Tube SC Connector PLC 1x32 Optical Splitter



Descriptions:

- PLC optical splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network.

- PLC optical splitter provides a low-cost light distribution solution with small size and high reliability.

- Mini tube type Planar Lightwave Circuit (PLC) 1x32 Optical Splitter with SC/APC termination.

- Using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.

- 1x32 Optical Splitter is one of the most important passive devices in the optical fiber link with 1 input and 32 output.

- These optical splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses.

- Kocent Optec Limited PLC optical splitter catalogy:

1/ Bare fiber type PLC optical splitter

2/ Mini tube type PLC optical splitter

3/ ABS box type PLC optical splitter

4/ Rack mount type PLC optical splitter

5/ LGX box type PLC optical splitter



Construction:
- Configuration Type: 1×32, 1*32, 1:32
- Fiber Type: G.657A1
- Pigtail Diameter: 0.9mm

- Pigtail Color: White (multi-colors is optional)
- Pigtail Length: 1.0m input / 1.0m output
- Connector Type: SC/APC



Specification:

Splitter Type PLC Splitter
Configuration Type 1x32 Optical Splitter
Connector Type SC/APC (other connectors are optional)
Fiber Length 1.0m (1.5m, 2.0m is optional)
Package Style Mini Tube Type
Fiber Type Singlemode G657A1 (G652D is optional)
Operating Bandwidth 1260~1650nm
Fiber Diameter 0.9mm
Insertion Loss (≤) dB 17.1
Loss Uniformity (≤) dB 1.5
Polarization Dependent Loss (≤) dB 0.3
Wavelength Dependent Loss (≤) dB 0.5
Return Loss (≥) dB 50
Directivity (≥) dB 55
Temperature Dependent Loss (≤) dB 0.8
Operating Temperature (°C) -20~85
Storage Temperature (°C) -40~85



Application:

- PON (passive fiber optic networks)

- FTTH Network

- FTTX Deployment

- LAN
- CATV System

- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications



Product photos:

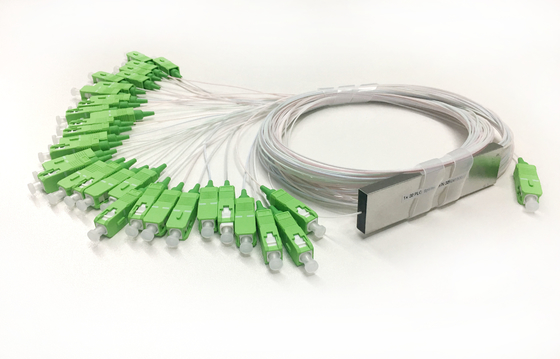

PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH 0

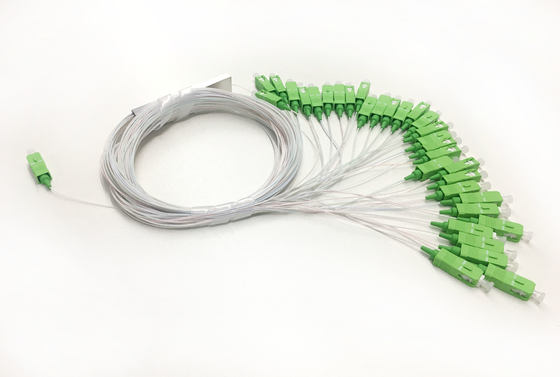

PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH 1

PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH 2

PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH 3





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



PLC 1x32 1:32 1*32 PLC Optical Splitter Mini Steel Tube SC Connector 0.9mm LSZH 4



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
