1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components

  • 1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components
  • 1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components
  • 1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-ABS-1x32-2.0-1.5M-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type ABS Box Modular Pigtail Length 1.0m, 1.5m
Splitter Type 1*32 1x32 Connector SC/APC
Cable Dia. 0.9mm/ 2.0mm/ 3.0mm P/N KCO-ABS-1x32-2.0-1.5M-SCA
Connector Color Green Pigtail Color Yellow
Highlight

SC APC 1x32 PLC Splitter

,

1x32 Passive Fiber Optic Splitter

,

ABS Box 1x32 PLC Splitter
Leave a Message
Product Description

ABS Box Type 1*32 1x32 PLC Passive Fiber Optic Splitter SC/APC Connector



Descriptions:

- ABS Box type 1*32 Planar Lightwave Circuit (PLC) Passive Fiber Optic Splitter with SC/APC termination.

- Using silica optical waveguide technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.

- Fiber optic splitter is one of the most important passive devices in the optical fiber link.

- PLC splitter is a single mode splitter with an even split ratio from one input fiber to multiple output fibers, which is ideal for EPON, GPON, FTTH, FTTX network.

- These splitters are used to distribute or combine optical signals, which are convenient for Telcom operators to split optical signals to multiple homes or businesses.

- PLC splitter provides a low-cost light distribution solution with small size and high reliability.

- Kocent Optec Limited passive fiber optic splitter catalogy:

1/ Bare fiber type passive fiber optic splitter

2/ Mini tube type passive fiber optic splitter

3/ ABS box type passive fiber optic splitter

4/ Rack mount type passive fiber optic splitter

5/ LGX box type passive fiber optic splitter



Construction:
- Configuration Type: 1×32, 1*32, 1:32
- Fiber Type: G.657A1
- Pigtail Diameter: 2.0mm, 3.0mm (optional)
- Pigtail Length: 1.0m input / 1.0m output
- Connector Type: SC/APC



Performance:

Splitter Type PLC Splitter
Configuration Type 1xN Or 2xN
Connector Type SC,LC,FC,ST
Fiber Length 1m or 1.5m or Requested
Package Style Plug-in Module
Fiber Type Singlemode G657A1 or G652D
Operating Bandwidth 1260~1650nm
Fiber Diameter 0.9, 2.0, 3.0 mm
Insertion Loss (≤) dB 17.1
Loss Uniformity (≤) dB 1.5
Polarization Dependent Loss (≤) dB 0.3
Wavelength Dependent Loss (≤) dB 0.5
Return Loss (≥) dB 50
Directivity (≥) dB 55
Temperature Dependent Loss (≤) dB 0.8
Operating Temperature (°C) -20~85
Storage Temperature (°C) -40~85



Features:

- FTTX Deployment
- FTTH Network

- LAN
- CATV System

- Optical Signal Distribution
- Passive Optical Network(PON)
- Measuring System and Laser System
- DWDM and CWDM System
- Data Communications



Applications:
- FTTx (FTTB, FTTH, FTTC)
- Passive optical networks (PON)
- CATV systems
- Local area networks (LAN)
- Test equipment



Product photos:

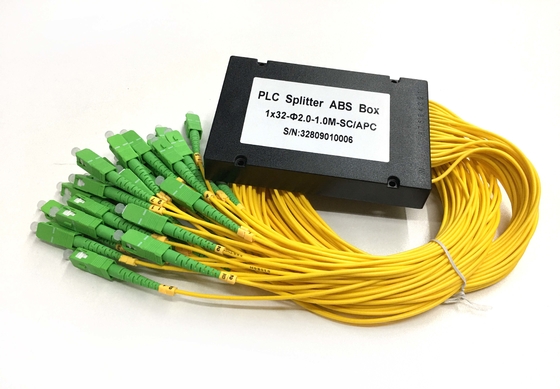

1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 0

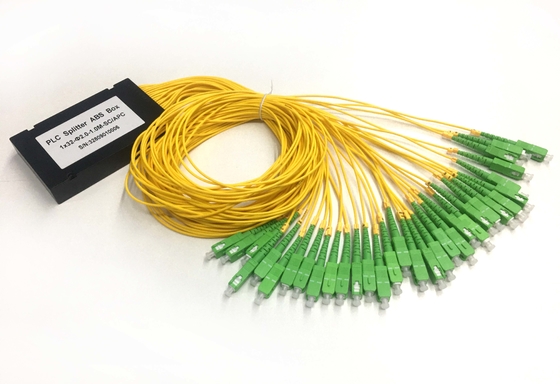

1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 1

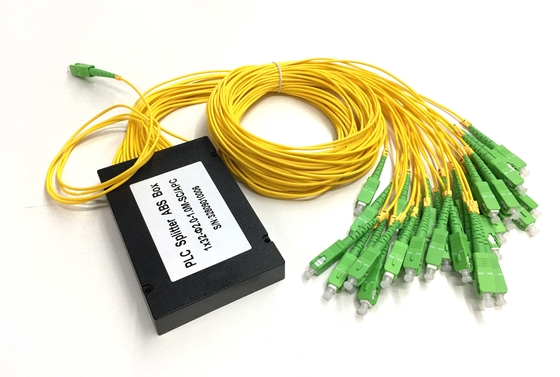

1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 2

1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 3



Packing way:

1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 4





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



1x32 1*32 1:32 PLC Fiber Optic Splitter SC APC Connector ABS Box Type Passive Components 5



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
