19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter

  • 19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter
  • 19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter
  • 19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter
  • 19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-DR-2U-96-SCD
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, export standard pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 10,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 SC Duplex Connector 2 LC Quad
Size 485*300*2U Capacity 96 Cores SC Or 192 Cores LC
Color Beige High 2U / 90mm
Type Drawer Type Standard 19 Inch
Logo Print Customized OEM ODM Service Yes
Highlight

96 Cores Fiber Optic Patch Panel

,

Rack Mount Fiber Optic Patch Panel
Leave a Message
Product Description

2U 96 Cores SC Duplex Adapter 19'' Rack-mount Patch Panel Fiber Optic Cable Box



Description:

- A fiber optic patch panel is a metal frame with pre- punched holes equally spaced horizontally along the front face.

- Loaded fiber optic patch panels are supplied with pre-configured adaptors for fast and easy installation.

- They make it easy to terminate fiber optic cables and provide access to the cable’s individual fibers for cross connection.

- A fiber optic patch panel is typically a metal enclosure that encloses the adapter panels and fiber splice trays. Splice trays allow fibers to be fused together with fiber optic pigtails which in turn are plugged into the fixed inside ports of the fiber optic adapter panels plate.

- Available in Single and Multi-mode options, these loaded Fiber Distribution boxes come in 12, 24, 36, 48, 72 96 and 144 strand variations as well as your choice of FC, LC, SC, and ST connector types.

- The fiber optic patch panel has two compartments. One contains the bulkhead receptacles or adapters, and the other is used for splice tray and excess fiber storage.

- Fiber optic patch panel height:

 1U: 44.5mm

 2U: 90mm

 3U: 135mm

 4U: 180mm

- Rack Mount Patch Panel FTTH Fiber Optic Termination Box Catalogy:

1/ Fixed Type Patch Panel

2/ Drawer Type Patch Panel

3/ Rotate Type Patch Panel

4/ Distribution Unit Patch Panel

5/ DinRail Patch Panel

6/ Wall mount Patch Panel



Feature:

- Standard 19'', be fit with 19'' Distribution frame.

- Adapter port available: SC, FC, LC, ST, E2000, DIN, MPO, MTP, MU, ...

- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm

- Color: Black, Beige, White

- Height: 1U to 4U or more



Product photo:

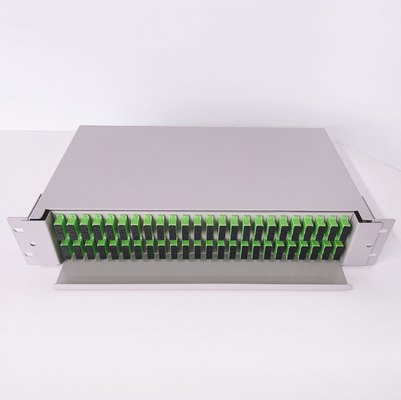

19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter 0

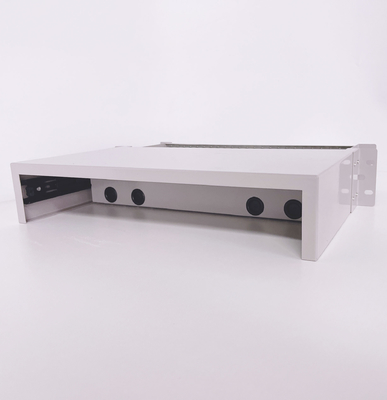

19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter 1

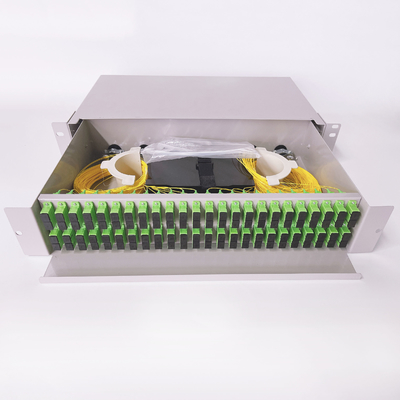

19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter 2



Descriptions:

Fiber Capacity of panel  Max 192fo (LC Quad adapter)
Panel Connector Port  48 ports
Type  Drawer type
Dimension  485*300*2U
Material  Cold Rolled Steel or Aluminum
Storage Temperature  -45~+65℃
Thickness   0.6 0.8 1.0 1.2 1.5mm
Accessories  Cable ties, mounting ear screws, and spiral wrap tube
Fiber type

 SM: G652D, G657A1, G657A2
 MM: OM1, OM2, OM3, OM4, OM5
Weight  6.50kgs
P/N:   KCO-DR-2U-96-SCD


Kocent Optec Limited Product Catalog:

1/ Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable, tactical cable.
2/ Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
3/ Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
4/ Fiber Optic Fast Connnector: SC, FC, LC, ST
5/ Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
6/ Fiber Optic Terminal Box: Cross Cabinet, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...

7/ Fiber Optic Distrinution Box: Fiber Optic Patch Panel, Fiber Optic Distribution Unit, Fiber Optic Distribution Frame, ...

8/ MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.



Relation Product:

19'' Rack Mount Fiber Optic Patch Panel 2U 96 Cores SC Duplex Adapter 3



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
