16 Cores Fiber Optic Terminal Box Wall Mountable For FTTH FTTA

Descriptions:
- The fiber optical splitter termination box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

- The Fiber optical distribution box with pre-terminated cable assemblies provides fiber optic cable management for the connection of distribution cables and drop cables with advantages of less cost and faster deployment at the user access point in fiber optic network.
- The Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.
- KCO-FDB-0216H-YP can connect the drop cable with feeder cable as the termination point in the Fttx network, which is cable to meet at least 16 users requirements.

- It can help splicing, splitting, storage and management with suitable space.
- We provides Fiber Access Terminal made of high quality PC and ABS plastic alloy.
- Its waterproof grade can match IP65.

Feature:

* The body is made of high quality engineering plastic with good strength;

* With safe special-shaped lock, the box can be opened easily and has good water-proof performance, suitable for indoor and outdoor natural environments;

* With water-proof adapter, the box can be operated more conveniently;

* With double-page design, the box can be installed and maintained easily, the fusion and termination are completely separated;

* The drop leaf can be installed 2 pcs of 1*8 tube splitter.
* Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
* The box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
* Efficient cable management.
* Temperature:-20℃~ 70℃
* OEM / ODM:Available

Application:

- LAN

- WAN

- Metro

- CATV networks,

- Passive fiber optic networks;
- Telecomunication systems,
- Fiber optic termination, indoor and outdoor application;
- Data communications networks,
- Telecommunication networks;

- Widely used in FTTX systems such as: FTTA, FTTB, FTTH, FTTO, ...

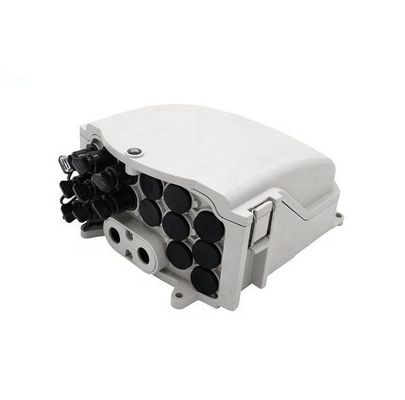

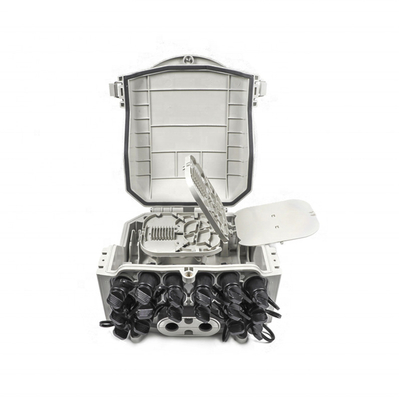

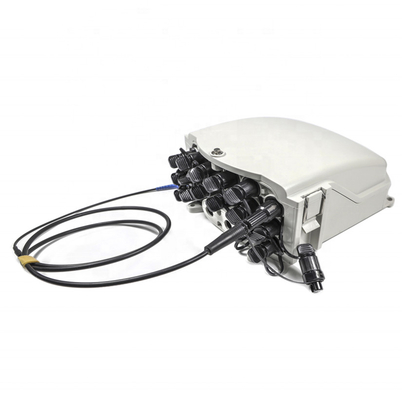

Products photos:

Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:
≥50dB(UPC),
≥60dB(APC)
- Nominal work wave-length: 850nm,1310nm,1550nm
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)
