Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA

  • Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA
  • Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA
  • Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA
  • Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOAC-SCA-OD-HW
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOAC-SCA-OD-HW Color Black
Insertion Loss 0.5dB Return Loss 50dB
Polishing Type PC/ APC Fiber Mode Single Mode
Fiber Type G652, G657 Cable Ftth Drop Cable, Outdoor Cable, Tactical Cable
IP Grade IP68 Application Outdoor
Highlight

H Connector Fiber Optic Fast Connector

,

SC APC Fiber Optic Fast Connector

,

FTTH weatherproof fiber connectors
Leave a Message
Product Description

Waterproof H Connector Mini SC APC For FTTH FTTA Fiber Optic Patch Cable With Fast Connector


Description:

- Mini IP SC series field assembly fast connector is a new design outdoor waterproof fiber optical connector compatible with Huawei Mini SC connector /adapter.

- It’s mainly used for FTTH outdoor installation.

- It’s small size and easy to be installed in outdoor with IP67 grade.

- Mini SC outdoor fast connector is an excellent solutions with Huawei device and no need terminated the connector in laboratory.

- It can bot field assembled very easy to save time and short the project time.

- OptiTap H fiber optic fast connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

- The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle.

- The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications.

- Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.



Feature:

- Compact size,easy to operate,durable.

- Easy connection to hardended adapters on terminals or closures.
- Reduce welding,connect directly to achieve interconnection.
- Spiral clamping mechanism ensures long-term reliable connection.
- Guide mechanism,can be blinded with one hand,simple and quick,connect and install.
- Accepts 2.0x3.0mm,3.0mm ,5.0mm Cable Diameters Factory or field installation.

- Allows flexibilityto use factory terminated and tested assemblies or retrofit to pre-terminated or field installed assemblies.



Application:

- Passive Fiber Optic Networks

- WAN & LAN Network

- FTTH & Outdoor Fiber Terminal End.

- Harsh Outdoor Using Environment.

- FTTA BBU RRU.

- Data Video Transmission.

- Optical Fiber Access Of Mobile Base Station.



Technical Data:

Waterproof Rate IP68.(1M ,1hour)
Applicable optical cable 2.0x3.0mm,3.0mm ,5.0mm
Insertion loss ≤0.50dB
Return loss ≥55dB
End face performance Conform to YD T 2341.1-2011
Mechanical durability 1000 times
Cable tension 2.0x3.0mm (Ttap Fast Connector) ≥30N; 2Minute
2.0mm,3.0mm (Ttap Connector) ≥30N; 2Minute
5.0mm (Ttap Connector) ≥70N; 2Minute
Torsion of optical cable ≥15N
Drop performance Allow 10 drops under 1.5m height without abnormal performance
Operation temperature 2.0x3.0mm (Ttap Fast Connector) -10℃~+70℃
2.0mm,3.0mm (Ttap Connector) -40℃~+80℃
5.0mm (Ttap Connector) -40℃~+80℃
Hot and humid working environment Long term operation under 90% relative humidity ,70 ℃


Product photo:

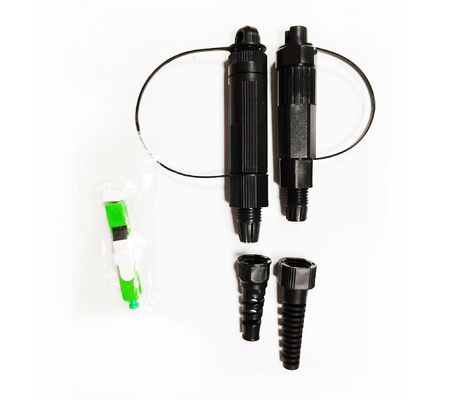

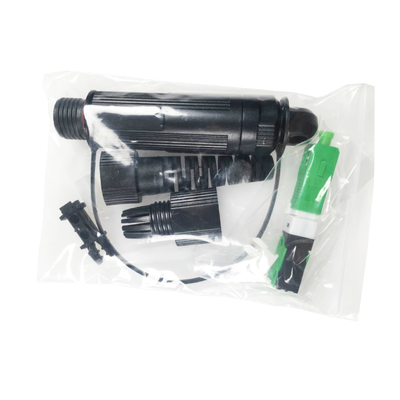

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 0



Relation products:

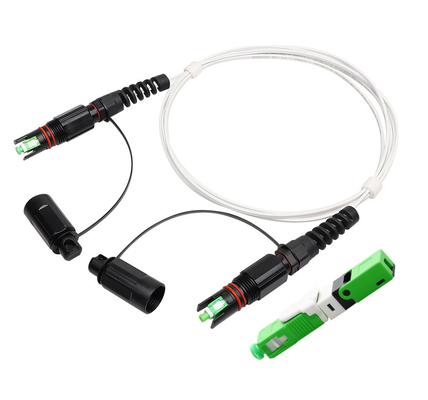

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 1

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 2

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 3

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 4

Waterproof Fiber Optic Fast Connector H Connector Mini SC APC For FTTH FTTA 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
