BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications

  • BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications
  • BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications
  • BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications
  • BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOAC-SCA-OD-HW
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOAC-SCA-OD-HW Color Black
Insertion Loss 0.5dB Return Loss 50dB
Polishing Type PC/ APC Fiber Mode Single Mode
Fiber Type G652, G657 Cable Ftth Drop Cable, Outdoor Cable, Tactical Cable
IP Grade IP68 Application Outdoor
Highlight

FTTA SC Fast Connector

,

Waterproof SC Fast Connector

,

FTTH Applications sc quick connector
Leave a Message
Product Description

Outdoor Waterproof BBU RRU FTTA Mini SC Fast Connector Compatible Huawei Corning OptiTap


Description:

- The outdoor fiber optic fast connector assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.

- The hardened connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multiport terminal or in-line extension receptacle.

- The SC/APC connector mates to a standard adapter, providing a common interface for FTTH applications.

- Available with flat drop or traditional round style OSP cables, the hardened connector provides an ideal solution for direct burial, conduit, or aerial installations.



Technical Data:

Waterproof Rate IP68.(1M ,1hour)
Applicable optical cable 2.0x3.0mm,3.0mm ,5.0mm
Insertion loss ≤0.50dB
Return loss ≥55dB
End face performance Conform to YD T 2341.1-2011
Mechanical durability 1000 times
Cable tension 2.0x3.0mm (Ttap Fast Connector) ≥30N; 2Minute
2.0mm,3.0mm (Ttap Connector) ≥30N; 2Minute
5.0mm (Ttap Connector) ≥70N; 2Minute
Torsion of optical cable ≥15N
Drop performance Allow 10 drops under 1.5m height without abnormal performance
Operation temperature 2.0x3.0mm (Ttap Fast Connector) -10℃~+70℃
2.0mm,3.0mm (Ttap Connector) -40℃~+80℃
5.0mm (Ttap Connector) -40℃~+80℃
Hot and humid working environment Long term operation under 90% relative humidity ,70 ℃



Applications:
1. FTTH Outlets
2. Distribution frames
3. Maintenance or emergency restoration of fiber networks
4. Patch panels
5. Connection at the desk for LAN environments
6. Fiber Optic Patch Cord & Pigtail

7. Fiber optic communications in harsh outdoor environments.

8. Outdoor communications equipment connection.

9. Waterproof fiber equipment SC port

10. Remote wireless base station.


Product photo:

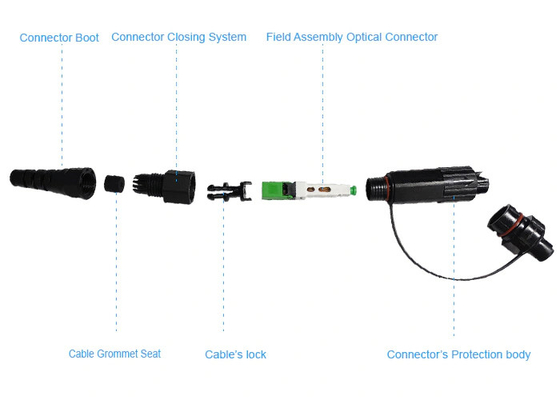

BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications 0


Relation products:

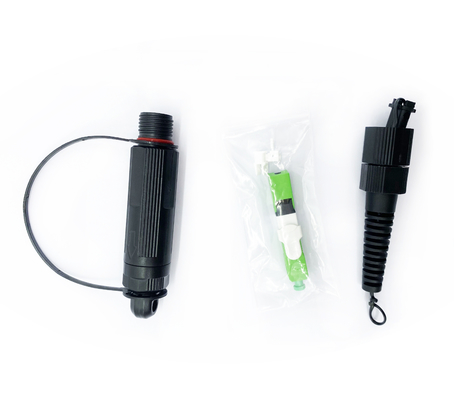

BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications 1

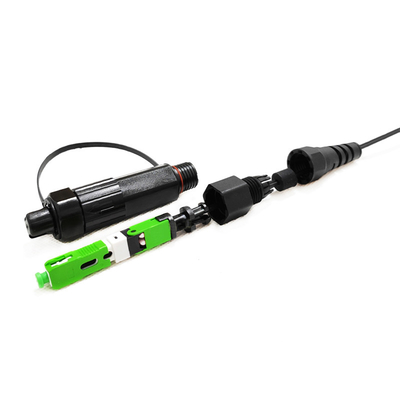

BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications 2



BBU RRU FTTA Mini SC Fast Connector Outdoor Waterproof For FTTH Applications 3



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
