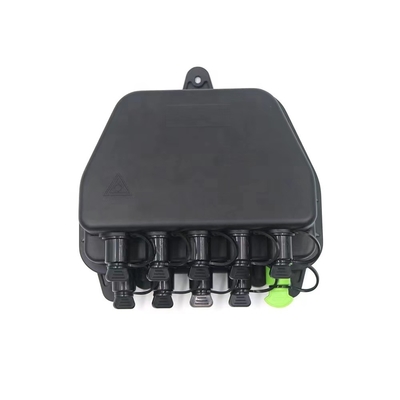

Outdoor Waterproof Fiber Optic Splitter Terminal Access Box OptiTap Mini SC H Connector

Description:

- KCO-FTTA-10B outdoor water-proof fiber optic splitter terminal access box is able to hold up to 10 subscribers.

- It is used as a termination point for 1 x ISP cable to connect with 1 x OSP cable and 8 x drop cable in FTTx network system.

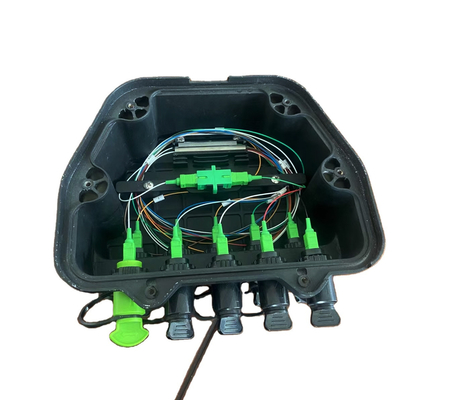

- It integrates fiber splicing, splitting, storage and cable management in one solid protection box.

- It can connect the drop cable with feeder cable as the FDB 10port fiber optic distribution box in the FTTx network, which is cable to meet at least 10 users requirements. fiber distribution box can help fiber cable splicing, splitting, storage, and termination management with suitable space in a solid protection enclosure box.

- Most importantly, fiber optic distribution box has good waterproof performance, reaches Protection level IP68, acted as an FDP fiber optical 6core terminal point for fiber home access.

Technical data:

- Environmental requirement

Working temperature: -40℃~+85℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70KPa~106Kpa

- Main technical datasheet Insertion loss: ≤0.15dB

UPC return loss: ≥50dB

APC return loss: ≥60dB

- Thunder-proof technical datasheet

The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.

The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

- Photoelectric performance
Connector attenuation (insertion, interchange, repetition) ≤0.3dB.
Return loss: APC ≥60dB, UPC ≥50dB, PC ≥40dB,
- Main mechanical properties parameters
Connector insertion and removal durability life > 1000 times

Application:

- FTTx (FTTA, FTTB, FTTO, FTTH, ...)

- Telecom Tower

- Passive fiber optic system

- CATV system

- WAN, LAN, ...

Features
- Adapters cap color can be customized to distinguish input output.

- Total enclosed structure

- Mini size, light weight, total enclosedwith 6pcs screws on bottom plate;
- High strength engineer plastic,with strength strips, wet-proof, water-proof, dust-proof, anti-aging;
- Outdoor wall mount, pole mounting, protection level up to IP67;
- Compact design integrates distribution, splicing, splitting 3functions all in one box;

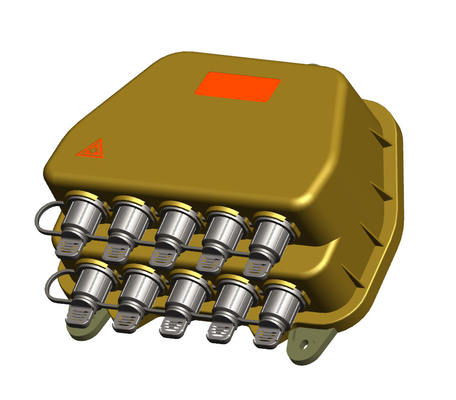

- 10 x reinforced adapters for drop cable with reinforced connectors.
- The compact design integrates distribution, splicing, splitting 3 in 1.
- PLC splitter, pigtails are running through their own paths without disturbing each other, easy maintenance;
- 2 layers splitting design, 1pcs of 1:2 PLC splitter output to be pre-spliced with 1pcs of 1:8 PLC splitter input;

- Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65
- Plug-and-play installation, easy for maintenance and expansion
- Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
