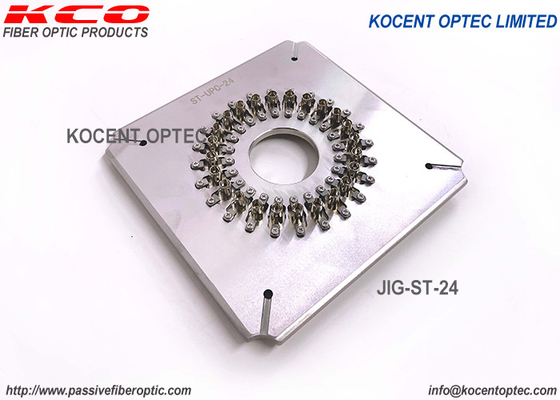

24 Positions ST UPC Jig And Fixture For Optical Corner Pressure Grinding Machine

24 Positions ST UPC Fiber Optic Polishing Jig For Optical Corner Pressure Grinding Machine

Description:

- The fiber optic polishign jig is is one of the indispensable accessories for the production of fiber optic patch cords.

- Designed for ST connector, use to polish the ST fiber optic connector

- It is available for PC with 24 positions of connector (less or more position can be made according to customer request)
- High efficiency, polishing 36 tconnectors in one cycle. The first pass yield for end face quality reach 98%～100%
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.

- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC).

Introduction:

- Kocent Optec Limited is one of lead passive fiber optic supplier in China. Company is based on Shenzhen City, Guangdong, China.

- Have more then 10 years of experience in fiber optic field.

- Our product catalog including:

+ Fiber optic patch cord production machine

+ Fiber Optic Cable ( indoor cable, ftth drop cable, outdoor cable)

+ Fiber Optic Splitter (FTB coupler splitter, PLC Splitter, Multimode Splitter, ...)

+ Fiber Optic Patch Cord and Pigtail ( Common type SC, FC, LC, ST Patch cord, MPO/MTP Patch cord, CPRI patch cord, Outdoor FTTA Waterproof patch cord such as ODVA, FullAxs, ODC, PLDC, Huawei Mini SC, ....)

+ Fiber Optic Acessories: fiber optic attenuator, fiber optic adapter, fiber optic connector housing, fiber optic ferrule, fiber optic protection tube, ...

+ Fiber Optic Splice Enclosure Box ( Inline type, Dome type, Aerial type, ...)

+ Fiber Optic Distribution Box (Steel Tape Patch Panel, SMC cross cabinet, ODF, Outdoor distribution box, indoor termination box, ...)

- OEM and ODM service is opening with all customer.

Feature:

- Quick to change jigs,

- Easy and flexible to operate
- Super centering accuracy
- Excellent connector end-face polishing quality

- Easy to change, simple and flexible to operate.

- Designed for corner pressure polishing machine.
- Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher.
- Dual APC & UPC polishing and Accommodating most styles of connectors.
- High efficiency to deal with all kinds of connectors.
- UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)

-The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability.

Product pictures:

Application:

- Mainly used for polishing fiber optic ferrule end face;

- Or precision parts end face polishing.

- Made with high quality, by using hardened steel;

- Adopt central pressurized way to polish, more stable;

- Or non-standard materials like metal, glass, ceramic end face polishing;

- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.

Fiber Optic Patch Cord Production Machine List:

Fiber Optic Patch Cord Production Process:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai

Description:

- The fiber optic polishign jig is is one of the indispensable accessories for the production of fiber optic patch cords.

- Designed for ST connector, use to polish the ST fiber optic connector

- It is available for PC with 24 positions of connector (less or more position can be made according to customer request)
- High efficiency, polishing 36 tconnectors in one cycle. The first pass yield for end face quality reach 98%～100%
- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.

- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.
