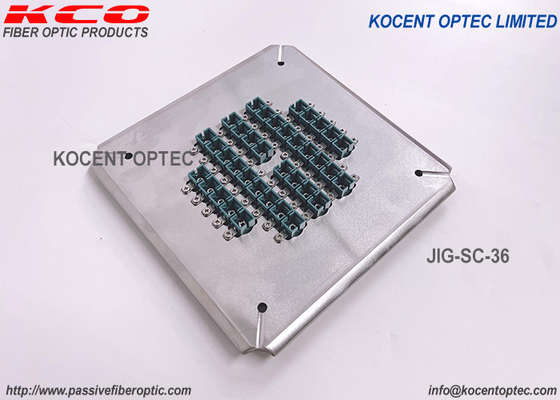

Fiber Optical Grinding Jig 179mm Disk For Corner Pressure Fiber SC Connector

SC/PC Optical Fiber Grinding Jig For Corner Pressure Fiber Connector Polisher Machine

Fiber Optic Patch Cord Production Machine List:

- Full automatic fiber optic cable cutting machine,

- Full automatic fiber optic cable stripping machine,

- Fiber optic housing crimping machine

- 353ND glue centrifuger

- Full automatic 353ND Glue injection machine

- Curing Oven

- Fiber optic ferrule polishing machine

- Fiber optic microscope

- IL & Rl tester

- APC end-face 3D tester

- VFL ( Red laser pen)

Description:

- The fiber optic polishign jig is is one of the indispensable accessories for the production of fiber optic patch cords.

- Designed for SC connectors.

- It is available for PC and APC with 24 or 36 positions of connector.
- Easy to change, simple and flexible to operate.
- High efficiency, polishing 36 tconnectors in one cycle. The first pass yield for end face quality reach 98%～100%
- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC),
- The accessories on the fixture can be replaced, Greatly extend the service life.
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.

- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

Feature:

- Designed for corner pressure polishing machine.
- Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher.
- Dual APC & UPC polishing and Accommodating most styles of connectors.
- High efficiency to deal with all kinds of connectors.
- - APC return loss ≥60dB , UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)

-The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability.
- Quick to change jigs,

- Easy and flexible to operate
- Super centering accuracy
- Excellent connector end-face polishing quality

Application:

- Mainly used for polishing fiber optic ferrule end face;

- Or precision parts end face polishing.

- Made with high quality, by using hardened steel;

- Adopt central pressurized way to polish, more stable;

- Or non-standard materials like metal, glass, ceramic end face polishing;

- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.
