Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM

  • Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM
  • Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM
  • Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM
  • Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Mux-PN-20CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Channel No. 20CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Single Fiber (Mux Or Demux) P/N KCO-DWDM-Mux-PN-20CH-LCU
Highlight

Mux Demux Fiber Optic Dwdm

,

LC UPC Fiber Optic Dwdm

,

19in 1U Passive Optical DWDM
Leave a Message
Product Description

100G 200G 50GHz 20CH Channel Mux Demux Passive Optical DWDM 19inch 1U Patch Panel



Descriptions:

- DWDM (Dense Wavelength Division Multiplexer) technology is an extension of optical networking.

- Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase the bandwidth of existing optical networks

- DWDM devices (multiplexer, or Mux for short) combine the output from several optical transmitters for transmission across a single optical fiber. At the receiving end, another DWDM device (demultiplexer, or Demux for short) separates the combined optical signals and passes each channel to an optical receiver.

- Only one optical fiber is used between DWDM devices (per transmission direction).

- Instead of requiring one optical fiber per transmitter and receiver pair, DWDM allows several optical channels to occupy a single fiber optic cable. As shown below, by adopting high-quality AAWG Gaussian technology, DWDM Mux/Demux provides low insertion loss (3.5dB typical), and high reliability.

- With the upgraded structure, these DWDM multiplexers and demultiplexers can offer easier installation.

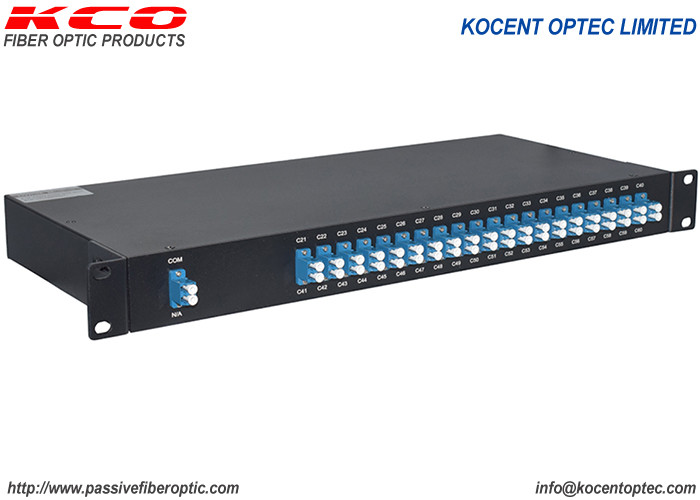

Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM 0



Key Features

- Low Insertion Loss

- High Channel Isolation

- High stability and reliability

- Wide Wavelength Range

- Epoxy-free optical path

- Wide Operating Wavelength: ITU DWDM C&L Band



Applications

- DWDM System

- PON Systems

- FTTx Systems

- CATV networks

- Metro

- Data Central

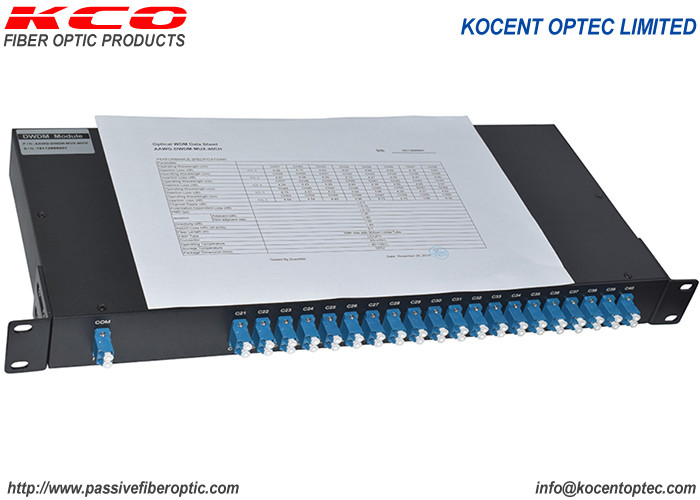

Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM 1






  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55


Relation products:

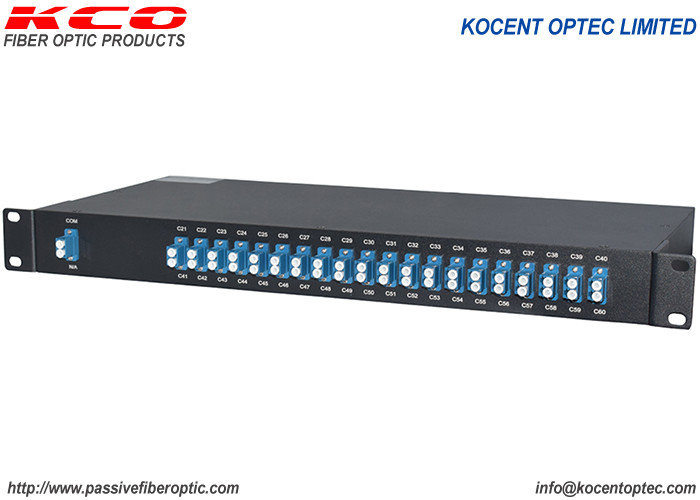

Mux Demux Fiber Optic Dwdm LC UPC 19in 1U Passive Optical DWDM 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
