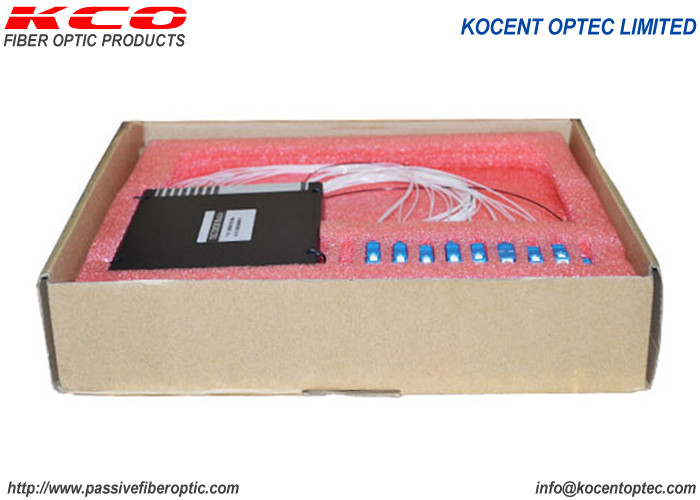

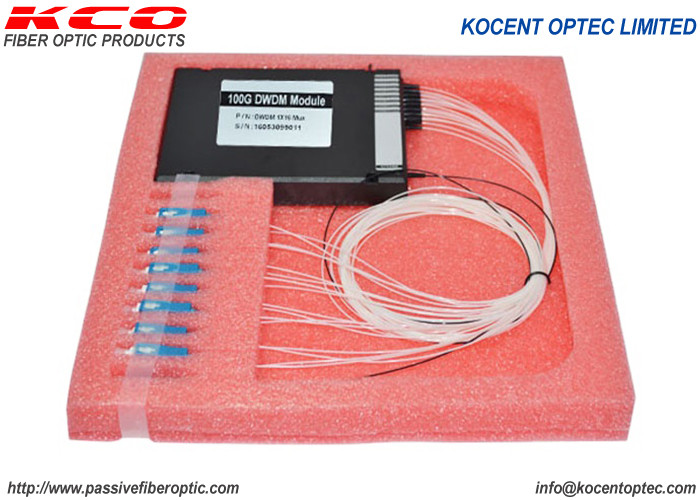

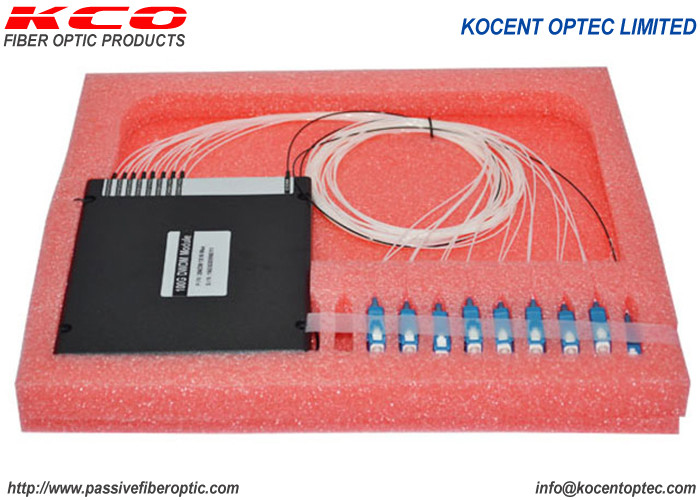

16CH Passive Fiber Optic DWDM ABS Casette SC UPC Connector

100G 50GHz 16CH Channel Passive Fiber Optic DWDM ABS Casette Box SC/UPC Connector

Descriptions:

- DWDM technology is the use of single-mode optical fiber bandwidth and low loss characteristics, the use of multiple wavelengths as a carrier, allowing the carrier channel in the fiber at the same time transmission as shown.

- Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase the bandwidth of existing optical networks. The working principle of DWDM is to transmit multiple signals of different wavelengths at the same time on the same optical fiber. This technology creates multiple virtual optical fibers, increasing bandwidth on existing fiber optic backbones.

- DWDM-based networks can use the IP protocol, ATM, SONET / SDH, Ethernet protocol to transmit data, processing data traffic between 100Mb/s and 2.5Gb/s.

- DWDM-based networks can transmit different types of data traffic at different speeds on a laser channel. From a QoS (Quality of Service) point of view, DWDM-based networks quickly respond to customers’ bandwidth needs and protocol changes in a cost-effective manner.

- A Dense Wavelength Division Multiplexing (DWDM) solution takes WDM to the next level by decreasing channel spacing to 0.8nm or less and shrinking the operational wavelength range. This can produce 80 or more channels or lanes of traffic, opening the door to more high speed, high bandwidth applications.

- Amazingly, all DWDM wavelengths reside within the narrow 1525nm to 1565nm region known as the C-Band. This area is utilized due to the relatively low (0.25dB/km) signal loss (fiber attenuation) compared to lower wavelengths found in the O or E-bands for example. As a result of the narrow channel spacing higher-precision lasers and filtering processes are required to maintain channel integrity and minimize interference.

Key Features

- Low Insertion Loss

- High Channel Isolation

- High stability and reliability

- Wide Wavelength Range

- Epoxy-free optical path

- Wide Operating Wavelength: ITU DWDM C&L Band

Applications

- DWDM System

- PON Systems

- FTTx Systems

- CATV networks

- Metro

- Data Central

Relation products:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
