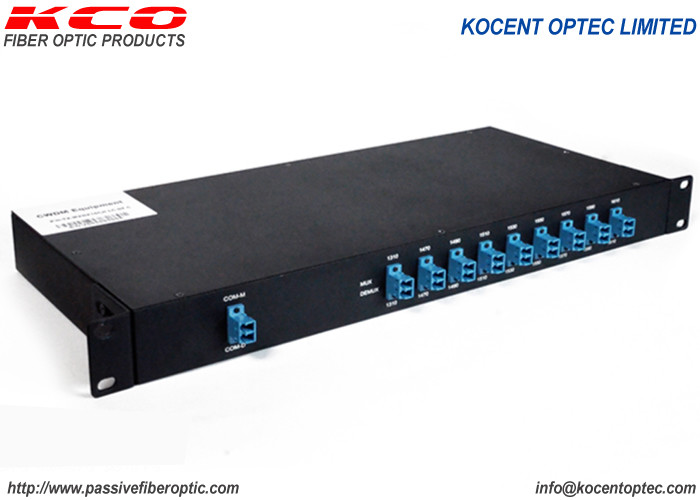

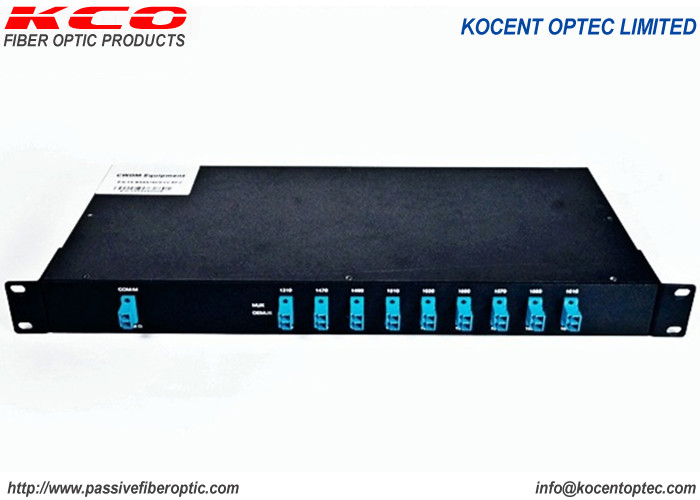

Demux CWDM Rackmount Patch Panel Fiber Optic 8 Channel Low PDL

  • Demux CWDM Rackmount Patch Panel Fiber Optic 8 Channel Low PDL
  • Demux CWDM Rackmount Patch Panel Fiber Optic 8 Channel Low PDL
  • Demux CWDM Rackmount Patch Panel Fiber Optic 8 Channel Low PDL
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-CDWM-MD-PN-8CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Patch Panel Channel No. 8CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Dual Fiber (mux + Demux) Size 1U
Highlight

Demux Rackmount Patch Panel

,

CWDM Rackmount Patch Panel

,

Low PDL Fiber Optic Patch Panel
Leave a Message
Product Description

6CH Passive Fiber Optic CWDM Multiplexer Single Dual Fiber LC/UPC Duplex Adapter



Descriptions:

- CWDM(Coarse Wavelength Division Multiplexing) is a standardized WDM technology that uses up to 20 different wavelengths for data transmission over a single fiber.

- In contrast to Dense WDM(DWDM), CWDM uses only a "coarse" wavelength grid, so the underlying optical component technology is simpler. This makes CWDM systems very cost-effective, but also limits them in terms of total capacity.

- CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.



Product advantage:

- Small and light, Industrial, can be placed flexibly;

- Plug and play, easily install and maintenance, no need any configuration;

- Zero transmission delay, improve transmission performance, support further distance;

- For passive fiber optic networks, no need power, high reliability, support outdoor application;
- Be transparent to any service signals, it can support FE/GE/10GE/25GE/100GE, OTU1/OTU2/OTU3, FC1/2/4/8/10, STM1/4/16/64, ...;



Features:

- Standard 19 inch, fit with data center cabinet

- Pigtail length: customized

- Teminal connector: customized

- Channel number: 4CH, 8CH, 16CH, maximum 18CH.

- Low Insertion Loss
- Low PDL

- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength
- From 1260nm to 1620nm
- Wide Operating Temperature: -40°C to 85°C
- High Reliability and Stability



Applications:

- WDM system

- Passive Fiber Optic Networks

- 3G, 4G, 5G Mobile Fronthaul

- Data Center

- Metro/Access networks
- Fiber optical amplifier
- CATV system







Specifications:

Parameter Unit Value
Channels Number - 2 4 8 16
Channel Space nm 20
Central Wavelength nm 1271~1611
Operating wavelength nm 1260-1460 or 1460-1620 or 1260-1620
Passband nm λITU±6.5
Pass band Flatness dB ≤0.5
Insertion Loss (Typ.) dB 0.8 1.3 2.4 4.6
Insertion Loss (Max.) dB 0.9 1.5 2.8 5.0
Adjacent Channel Isolation dB ≥30
Non-adjacent Channel Isolation dB ≥40
Polarization Mode Dispersion ps ≤0.1 ≤0.1 ≤0.15 ≤0.15
Polarization Dependent Loss dB ≤0.1 ≤0.15 ≤0.2 ≤0.25
Return Loss dB ≥50
Directivity dB ≥50
Insertion Loss Temperature Sensitivity dB/°C 0.005 0.005 0.007 0.007
Wavelength Temperature Shifting nm/°C 0.002
Operation Temperature °C -10~+70
Storage Temperature °C -40~+85
Package Dimension mm customized



Relation products:

Demux CWDM Rackmount Patch Panel Fiber Optic 8 Channel Low PDL 0





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
