Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station

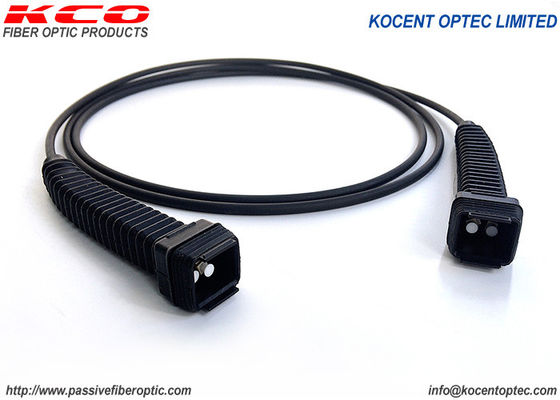

  • Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station

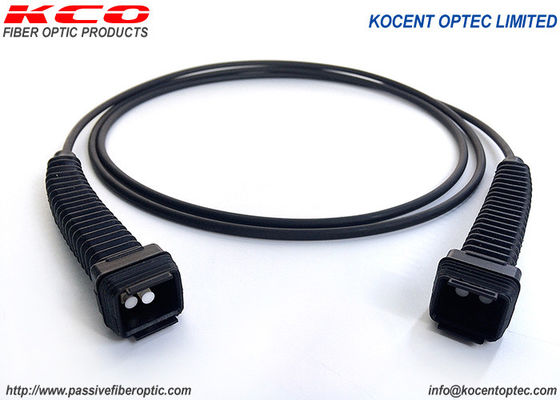

  • Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station

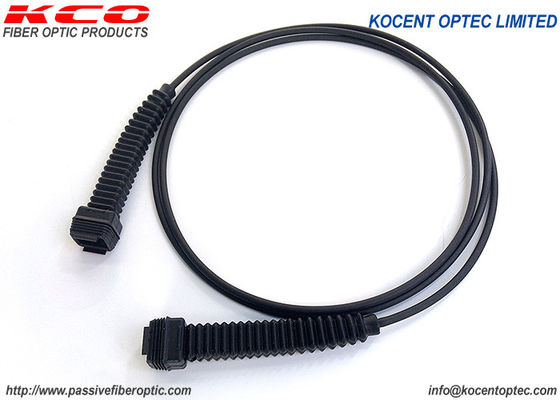

  • Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number NSN-NSN-DLC-SM-5.0mm-x(m)
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 NSN-DLC Connector 2 NSN-DLC
Core Duplex, 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Dia. 4.8mm, 5.0mm
Highlight

FTTA Single Mode Patch Cable

,

NSN Single Mode Patch Cable

,

RRU LTE Fiber Patch Cable
Leave a Message
Product Description

FTTA RRU LTE Base Station NSN Duplex LC Single mode 9/125 Water-proof Patch Cable



Features:

- Robust fiber-optic connector for 2 and 4 channels with screwed mating mechanism

- IP65 protection, salt-mist proof, and EMI protection

- High shock, vibration, and mechanical resistance

- Broad temperature range and wide range of indoor and outdoor cables

- Easy, reliable and cost-effective installation

- Harsh environments where chemicals, corrosive gases and liquids are commonplace

- Inside and outside industrial plant and equipment that interface with industrial Ethernet networks

- Remote interface applications such as towers and antennae as well as FTTX in PON and at the home applications

- Mobile routers and internet hardware




Applications:

- BBU, RRU, RRH, LTE, ...

- Widely used in FTTA & FTTH,
- Used for 3G 4G 5G base station,



Description:
- The Outdoor fiber optic patch cord is special designed to use black color LSZH or TPU cover cable to make the patch cord with water-proof connector.

- It is designed to use for outdoor, with fuctions of water-proof, dust-proof, UV resistant, .... Suitable with harsh outdoor environment.

- The NSN fiber optic connectors for the new generation wireless base stations pulled far (WCDMA/ TD- SCDMA/ WIMAX/ GSM) tailored products that can be meet the FTTA (fiber to the antenna) program requirements for outdoor environment conditions and adverse weather conditions.

- They are well suited for Industrial and Aerospace and Defense applications.
- The NSN fiber connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications.

- The product however, is not limited to the above applications.
- The NSN cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP65.

- They are well suited for Industrial and Aerospace and Defense applications.

- NSN Water-proof Patch cord normally come with DLC (LC duplex) connector.
- The patch cable is available in Single mode (suggest to use G657A, G655 or G657B3 fiber) and Multimode (OM1, OM2, OM3, OM4, OM5 fiber).

- KOCENT OPTEC LIMITED supply OEM and ODM service for all types of fiber optic patch cord, special in outdoor field operations fiber optic patch cord such as NSN patch cord, PDLC patch cord, DLC patch cord, ODC patch cord, ODVA patch cord, RRU patch cord, TPU patch cord, CPRI patch cord, Optitap patch cord, Mini SC patch cord, and OM3, OM4 patch cord,... for FTTA, 3G 4G 5G Base Station.

- We supply all kinds of field operations fiber optic patch cord with different types of water-proof connector, use for Telecom 3G, 4G, 5G, LTE, BBU, RRU, RRH base station.

- With completed of production equipment and closed of QC process, we supply Telecom standard of goods to our customer.



Specification:

Item SM MM
Connector A: NSN, B: NSN, LC, SC, FC, ST
Fiber Type G657A1/A2
Fiber Count 2 Cores
Color Bule, Green Beige,Aqua
Polish UPC, APC PC
Insertion Loss ≤0.2dB
Return Loss

≥50dB(UPC)

≥60dB(APC)

 ≥35dB
Durability ≥500 cycles ≤0.2dB
Test Wavelength 1310/1550nm 850/1310nm
Attenuation (max.dB) 1310nm≤0.35dB/km
1550nm≤0.25dB/km		 850nm≤3.0dB/km
1310nm≤1.0dB/Km
Operating Temperature -40 to +80℃



Product photo:



Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station 0





Relation products:



Outdoor IP65 FTTA NSN Single Mode Patch Cable Duplex LC RRU LTE Base Station 1



OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, Fedex, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Shenzhen port, Hongkong port, Ningbo port, Shanghai port.
