Aramid PVC LSZH MM Optical Fiber Patch Cords ST SC LC FC OM3 OM4 Multimode 10G Duplex
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | RoHS, ISO9001 |
| Model Number | ST-ST-OM3-DX-3m0mm-xM |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~7 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 50,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | ST | Connector 2 | LC, SC, FC, ST |
|---|---|---|---|
| Insertion Loss | 0.35dB | Return Loss | 45dB |
| Color | Aqua, Customized | Cover | PVC, LSZH |
| Fiber | Multimode OM3 | Length | Customized |
| Highlight | LSZH Optical Fiber Patch Cord,Aramid Optical Fiber Patch Cord,OM3 Fiber Optic Patch Leads |
||
Product Description
OM3 Multimode 50/125 10G Duplex LSZH PVC Aqua ST Patch Cord
Description:
- ST Connectors are among the most commonly used Fiber optic connectors in networking applications. They are cylindrical with twist lock coupling, 2.5mm keyed ferrule. ST Connectors are used both short distance applications and long line systems. The ST connector has a bayonet mount and a long cylindrical Ferrule to hold the fiber
- Fiber optic patch cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends.
- For the fiber patch cables, there are two major application areas which are computer work station to outlet and fiber optic patch panels or optical cross connect distribution center.
- The ST fiber optic patch cord, is the fiber optic cable that with ST connector termination on 2 sides of end. It can be simplex or duplex or multi-fibers as end user demendtion.
- Fiber Optic Pigtail is composed of the fiber optic cable with 1 side of termination connector on the end.
- We provide various types of fiber patch cords and pigtail, including single mode, multimode, multi core, and armored versions.
- You can aslo find fiber optic pigtails and other special patch cables here. For most of them, the SC, ST, FC, LC, MU, MTRJ, E2000, APC/UPC connectors are all available, even we supply MPO/MTP fiber cables
- Fiber Patch Cables are standard fiber optic cables terminated with LC/SC/ST/FC/MTRJ/MU/SMA connectors on both ends, such as LC-LC, LC-SC, LC-ST, SC-ST, SC-SC, ST-ST etc.
KOCENT OPTEC LIMITED, A Reliable Partner Of Fiber Optic Supplier:
We care about our customers business and their requirements.
We look to nurture and build long-lasting relationships with our distributors, and work closely with installers, design consultants, system integrators and end users to build channel opportunities.
Our finger is on the pulse when it comes to our markets and we continually observe emerging trends and technological innovation.
We are in a very fast moving industry, so we stay flexible and adaptable to keep our customers at the forefront.
We care about our customers business and their requirements.
We look to nurture and build long-lasting relationships with our distributors, and work closely with installers, design consultants, system integrators and end users to build channel opportunities.
Our finger is on the pulse when it comes to our markets and we continually observe emerging trends and technological innovation.
We are in a very fast moving industry, so we stay flexible and adaptable to keep our customers at the forefront.
Specification:
| Connector | ST, LC, SC, FC, DIN, D4, MPO, ... |
| Fiber Type |
Single mode Multimode 62.5/125 OM1 Mutimode 50/125um, OM2, OM3, OM4, Om5 |
| Polish |
UPC APC PC |
| Fiber Type | Duplex (simplex, multi-cores) |
| Insertion loss | ≤0.2dB |
| Return loss | ≥25dB |
| Operating Temperature | -40~70°C |
| Polarity | A(Tx) to B(Rx) |
| Jacket Outer Diameter | 2.0mm/ 3.0mm |
| Jacket Color | Lime Green |
| Wavelength | 850/1300nm |
| Jacket Material | PVC/LSZH |
| Cable Retention | 90N |
| Minimum Bend Radius (mm) | 10D (installed) - 20D (loaded) |
| Storage Temperature | -45°C~85°C |
| Strength Member | Aramid |

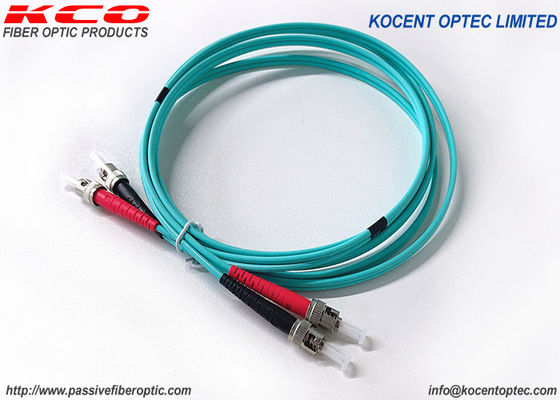

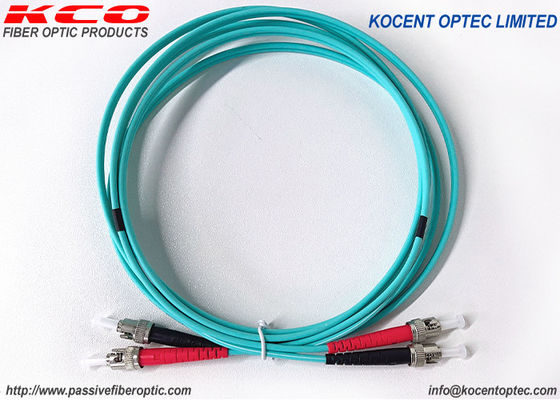

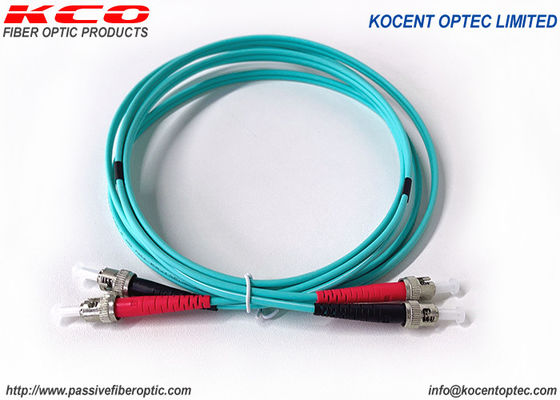

Product photos:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
