2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF

  • 2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF
  • 2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF
  • 2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF
  • 2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-192-2U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 LC Duplex
Size 480x245x2U Capacity 192 Cores
Color Black Length 0.2m, 0.3m
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
Highlight

192 Core MPO Patch Panel

,

Drawing MPO Patch Panel

,

MTP Rack Mount Terminal Box
Leave a Message
Product Description



192core Drawing Type MPO Patch Panel Sliding MTP Fiber Optic Rack Mount Terminal Box



Description:

- The MPO MTP Patch panel is made with cold rolled sheet and frosted painting; cassette is made with plastic, and adapter plate is made with plastic

- The cassette is fixed on the panel with pressing valve.

- The MPO fiber optic patch panel, SC/FC/ST/LC, UPC, APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components.

- Typical MPO fiber optic patch panel is with 1U, 2U with 19inch standard size, inside the patch panel.

- It can be splice trays with 1XN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel.

- The 1U MPO fiber patch panel can be with max 48 cores or 96 cores output optical strand, the output connectors can be SC/FC/ST/LC.

- The 2U MPO fiber patch panel can be with max 192 cores LC connecor and 96 core for SC, FC or ST Connector



Features:
- Made by strength steel tape.

- Roomy space ensure fiber bent ratio.

- Hyperdensity, 1U rack can install 96fiber, save more space.

- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

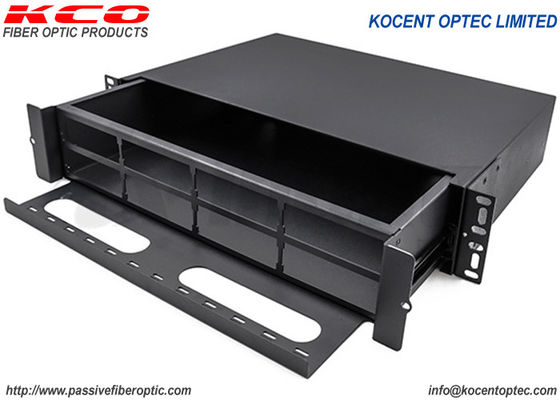

Product photo:



2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 0

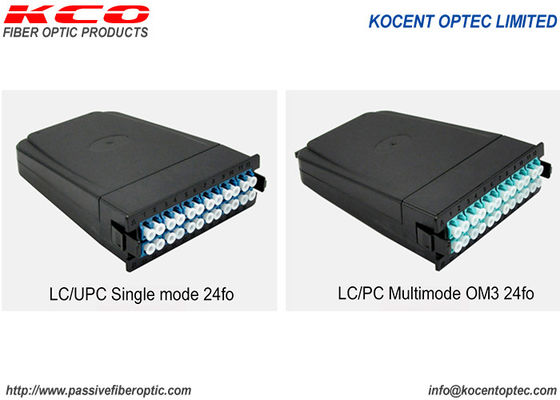

Product Size:



                              2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 1

2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 2





MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf



Descriptions:

Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawting
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6 0.8 1.0 1.2 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Cable Cover LSZH
Length 0.3m, 0.5m



Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.

- Fiber Optic Fast Connnector: SC, FC, LC, ST
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.

- Fiber Optic Splice Closure: Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...

- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.



2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 3

2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 4

 2U MPO MTP 192fo High Desity Patch Panel Sliding MTP Fiber Optic Rack Mount ODF 5



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: Huyndai, COSCO, etc
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
