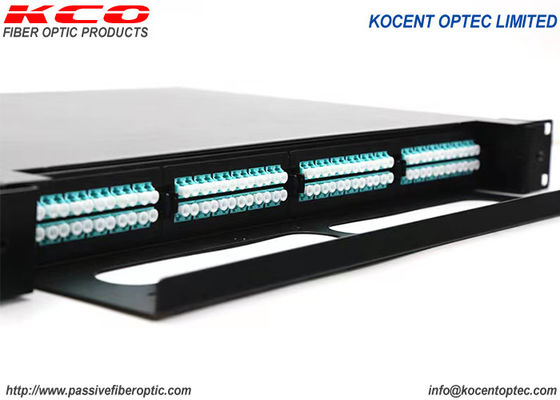

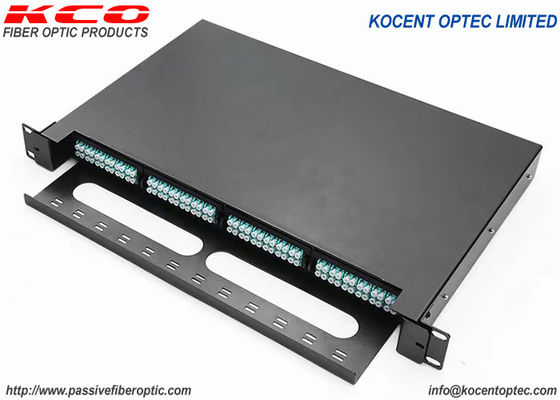

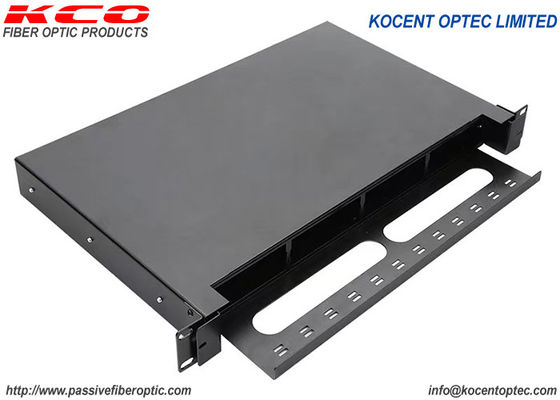

96fo High Desity LC Duplex ODF MPO MTP Patch Panel Drawing Type 1U Rackmount

  • 96fo High Desity LC Duplex ODF MPO MTP Patch Panel Drawing Type 1U Rackmount
  • 96fo High Desity LC Duplex ODF MPO MTP Patch Panel Drawing Type 1U Rackmount
  • 96fo High Desity LC Duplex ODF MPO MTP Patch Panel Drawing Type 1U Rackmount
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-961U-DR
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 SC Simplex, LC Duplex
Size 480x245x1U Capacity 96 Cores
Color Black, Beige Length 0.5m, 0.8mm, 1.0m, 1.5m, Customized
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
Highlight

ODF MPO MTP Patch Panel

,

24fo MPO MTP Patch Panel

,

1310nm Rack Mount Patch Panel
Leave a Message
Product Description



Drawing Type 1U 96port LC Duplex Fiber Optic Rack Mount ODF MPO MTP Patch Panel



Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.
- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- MPO MTP Solution product: MPO Patch Cord (8fo, 12fo, 16fo, 24fo, 32fo), MTP Patch cable, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, 19'' Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, Splitter Box, ...
- Fiber Optic Splice Closure:  Inline type, Dome type, Aerial type, Wall mount type, Splitter Splice closure...
- Fiber Optic Fast Connnector: SC, FC, LC, ST


Quick informations:
- Name: 19'' MPO MTP Patch Panel
- Capacity: 96 core
- Maximum module number: 4pc
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black, Beigi, White, customized
- Logo printing: customized
- Thickness: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm

Features:
- 19" standard size, easy install.
- Fit with 19'' Rack type Cabinet.
- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.






MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf



Descriptions:

Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawting
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6 0.8 1.0 1.2 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Cable Cover LSZH
Length 0.3m, 0.5m
