KCO-J108H-32SC 1*32 1x32 SC Adapter 1in 4out Fiber Optic Splitter Splice Closure Box

KCO-J108H-32SC 1*32 1x32 SC Adapter 1in 4out Fiber Optic Splitter Splice Closure Box

Description:

- The optical fiber splice enclosure is designed for configuration flexibility, these closures offer expanded slack storage, various tray heights and mass platform storage. It is using for fiber optic cable splicing, they provides space and protection for the fiber optic cable splicing and joint.
- The optical splice enclosure box belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

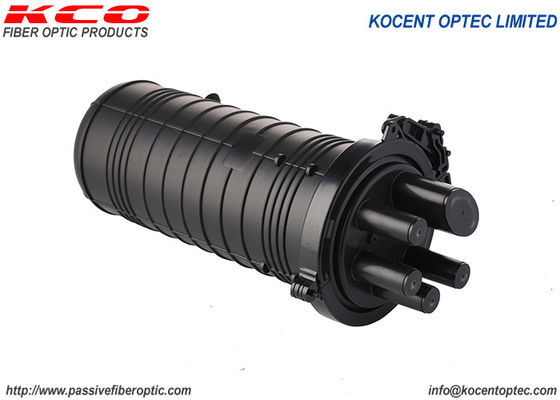

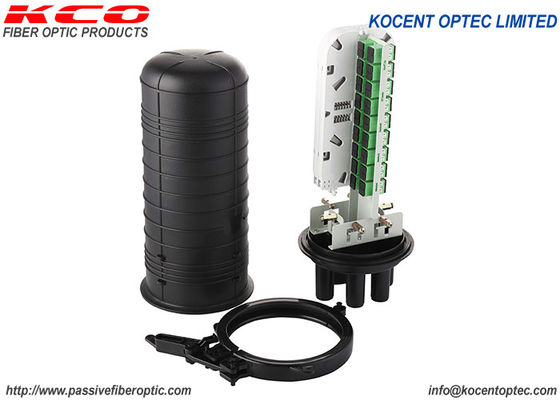

- KCO-J108H-32SC fiber optic splice clusre box with 5 mechanical ports is designed for outdoor fiber optic cable connection and protection. With special design, it can install the mini type fiber optic splitter and also have the adapter plate, can install maximum 32 SC simplex adapter on it. So we also use the splice tray and also use the splitter.

- It is suitable for the connection of the outdoor fiber optic cable, using for aerial, manhole or underground, ....

- The splice closure cable port is heat shirnk type. It can be opened again and reused after installation. Each optical cable and fiber can be operated individually.

- It is waterproof, match IP67 grade.

- The splice closure casing is made of quality engineering plastics such as ABS or PC or PP. With good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

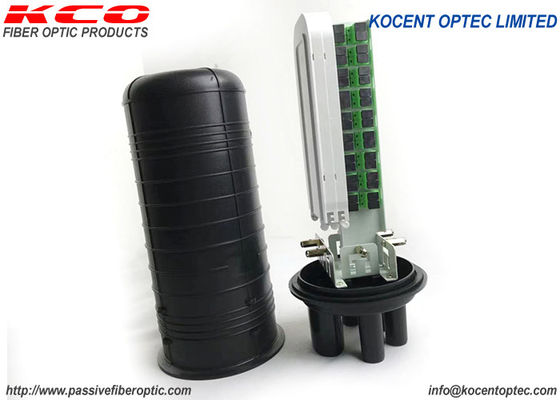

- The splice trays is inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm.

Applications:

- Be suitable for Aerial and Duct, hanger, Wall-mounting, Directly buried
- CATV environment
- Telecommunications

- Passive fiber optic systems
- Customer premises environments
- Carrier Networks and fiber optic networks
- Data communications networks
- Local area networks

Features:

- Easy installation: Ready for pole mount-installation kits provided
- Easy maintain: the inside splice tray can be taken out to operate the wiring.
- Unique design to allow cable and pigtails going through own path without disturbing each other
- Can be opened and reused without changing the sealing material.

- Long life time: about 20 years.

- High protection grade: IP67, dust proof and water proof.

- 5 ports of dome type fiber optic spice enclosure box have 2 type of ports: mechanical port and heat shrinkable port for different optionals.

Specification:

Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
