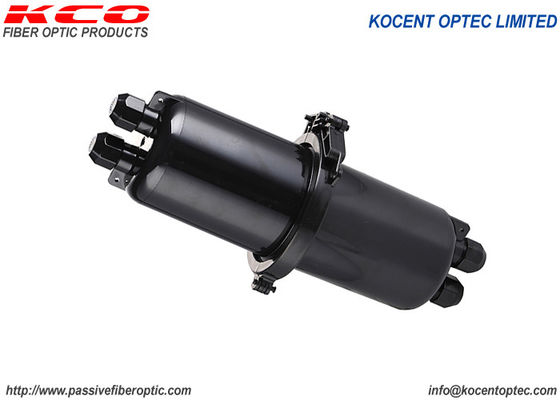

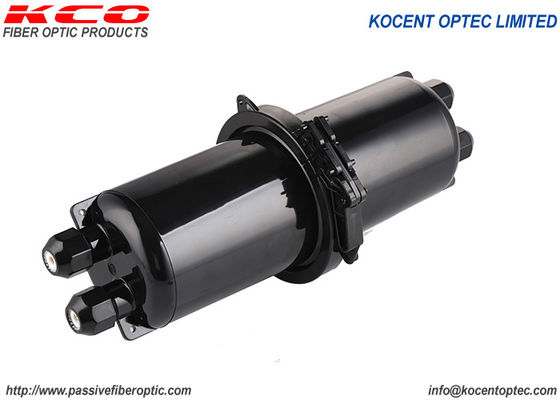

KCO-101M-96 Horizontal 12fo 24fo 48fo 96fo Aerial Outdoor Optical Splice Closure Joint Box

KCO-101M-96 Horizontal 12fo 24fo 48fo 96fo Aerial Outdoor Optical Splice Closure Joint Box

Description:

- KCO-101M-96 fiber optic splice clusre box is design for outdoor fiber optic cable connection and protection.

- It is suitable for the connection of the outdoor fiber optic cable, using for aerial, manhole or underground, ....

- It is waterproof, match IP67 grade.

- The splice closure cable port is mechanical type. It can be opened again and reused after installation. Each optical cable and fiber can be operated individually.

- The splice closure casing is made of quality engineering plastics such as ABS or PC or PP. With good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

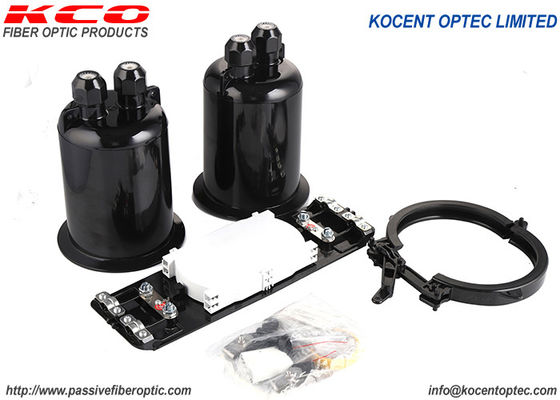

- The splice trays is inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm.

Applications:

- 3G, 4G, 5G network

- FTTx (FTTH, FTTA, FTTB, FTTO, FTTC, ...)

- WAN, LAN

- PON, GPON

- CATV networks

- Data center

- Telecom network

- Local area networks
- Telecommunication networks
- Data communications networks

Features:

- High quality PC, ABS, PPR material optional, can ensure harsh conditions such as vibration, impact, tensile cable distortion
and strong temperature changes.
- Solid structure, perfect outline, thunder, erosion and adding resistance.
- Strong and reasonable structure with mechanical sealing structure, can be opened after sealing and cab be reused.
- Well water and dust proof, unique grounding device to ensure the sealing performance, convenient for installation.
- The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength
engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

Specification:

Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
