19 Inch Rack Mountable 96core LC Duplex 1U MPO MTP Optica Fibra Patch Panel
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | RoHS, ISO9001 |
| Model Number | MPO-1U-96-LC OM3 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | PE bag, carton box, wooden pallet |
| Delivery Time | 2~7 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 50,000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector 1 | MPO, MTP | Connector 2 | LC/UPC, LC/APC Or Customized |
|---|---|---|---|
| Size | 480x245x1U | Capacity | 96 Cores |
| Color | Black, Beige | Length | 0.5m, 1.0m, 1.5m, Customized |
| Highlight | MTP Optica Fibra Patch Panel,96core Optica Fibra Patch Panel,LC Duplex MPO Patch Panel |
||
Product Description
19 Inch Rack Mountable 96 Core LC Duplex Port 1U MPO MTP Optica Fibra Patch Panel
Description:
- This patch panel is special design for MPO MTP module. Maximum can up load 4 pcs of MPO-LC 12fo modules.
- This high capacity fiber optic distribution frame support fiber cable fast connection and distribution.
- It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug.
- It is an ideal equipment for supporting the fiber distribution in high-density capacity data center.
- It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
Quick informations:
- Name: 19'' MPO MTP Patch Panel
- Capacity: 96 core
- Maximum module number: 4pc
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black (OEM other color)
Features:
- 19" standard size, easy install.
- Fit with 19'' Rack type Cabinet.
- Made by cold roll steel, electrostatic powder spraying.
- Fixed type, with PC material front transparent cover, convenient for observation and maintenance.
- Its cover is easy to open and close by using button.
- Back side with 2 oval port 22*60mm for cable entry.
- Load max. 4pcs MTP/MPO cassette (Model: MB-M015).
- Each MTP/MPO cassette can load 6pcs LC quad adapter & 2pcs MTP/MPO adapter, max. 24fibers.
- The MTP/MPO cassette with PC material transparent cover, easy to observation and maintenance.

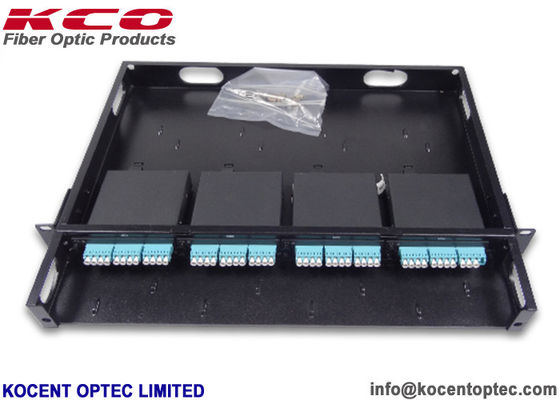

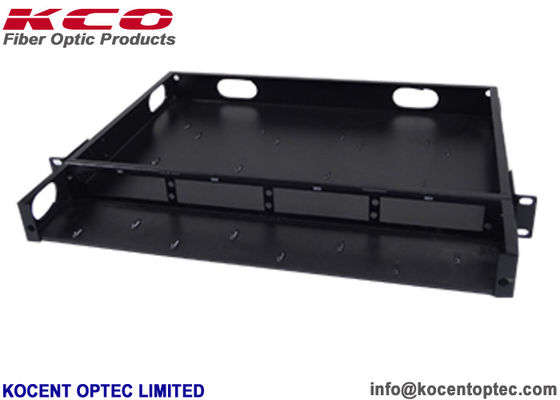

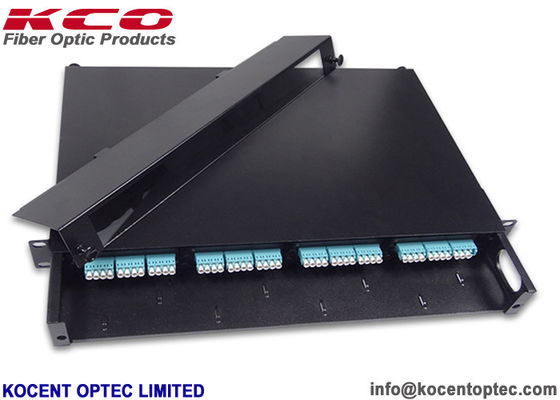

Product photo:
Product size:
MTP/MPO Connector Specifications:
| Type | Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Max. Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃~+80℃ | -40℃~+80℃ | -40℃~+80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
| Insert-pull test | 1000 times＜0.5 dB | |||||
| Interchange | ＜0.5 dB | |||||
| Anti-tensile force | 15kgf | |||||
Descriptions:
| Fiber Capacity of panel | 12-144 core(12 24 48 port usually) |
| Panel Connector | SC LC ST FC |
| Type | Fixed |
| Dimension | 19'' 1U/2U/3U/4U... |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45~+65℃ |
| Thickness | 1.0 1.2 mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| MPO type |
SM: G652D, G657A1, G657A2 |
| Cover | LSZH |
| Length | 0.3m, 0.5m |
