High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box

  • High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box
  • High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box
  • High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box
  • High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-1U-96-LC OM3
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 96 Cores
Color Black, Beige Length 0.5m, 1.0m, 1.5m, Customized
Highlight

OM4 MPO MTP Patch Panel

,

OM3 MPO MTP Patch Panel

,

96fo Fiber Optical Patch Panel
Leave a Message
Product Description



High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optical Patch Panel


Kocent Optec Limited Product Catalog:
- Fiber Optic Cable: outdoor cable, indoor cable, ftth drop cable.
- Fiber Optic Patch Cord: indoor patch cord, ftth drop patch cord, Field Fiber Optic Patch Cord, Outdoor Patch Cord.
- MPO MTP Solution product: MPO MTP Patch Cord, MPO MTP attenuator, MPO MTP loop back, MPO MTP Adapter, MPO MTP patch panel.
- Fiber Optic Splitter: PLC Splitter, FTB Coupler, Multimode splitter.
- Fiber Optic Terminal Box: Distribution Frame, Cross Cabinet, ODF Unit, Patch panel, Indoor terminal box, Outdoor terminal box, FDB, FAT, CTO, ...
- Fiber Optic Splice Closure:  Inline type, Dome type, Aerial type, Wall mount type, ...
- Fiber Optic Fast Connnector: SC, FC, LC.


Quick informations:
- Name: 19'' MPO MTP Patch Panel
- Capacity: 96 core
- Maximum module number: 4pc
- Optical port: LC duplex, MPO
- Cable length: 0.3m
- Patch panel size: 480x245x1U(mm)
- Color: black (OEM other color)

Features:
- 19" standard size, easy install.
- Fit with 19'' Rack type Cabinet.
- Roomy space ensure fiber bent ratio.
- Provides a complete system solution for connectivity.
- Light weight, strong strength, good anti-shocking and dustproof.
- Well cable management, cable can be distinguished easily.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.

Product photo:

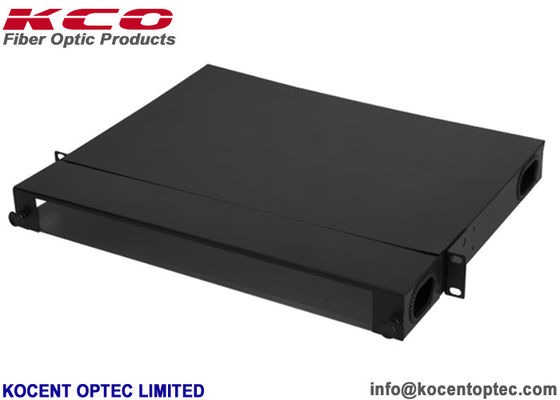

High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box 0

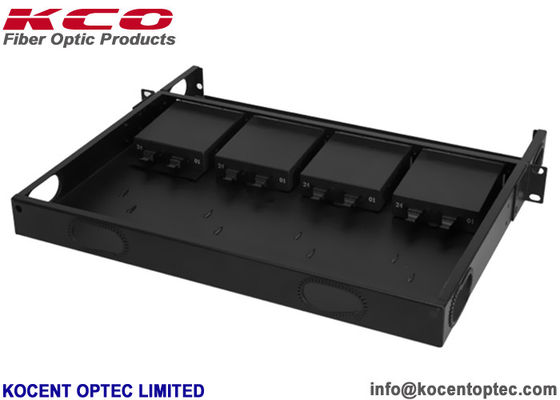

High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box 1

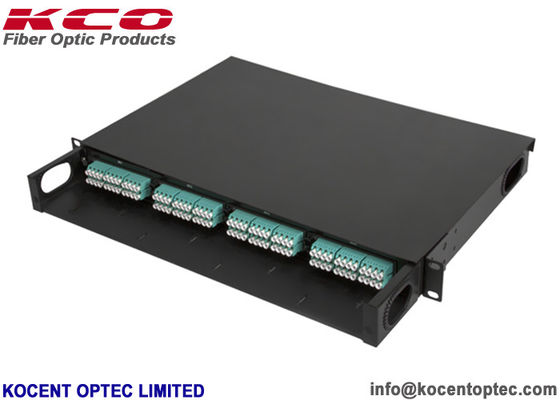

High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box 2

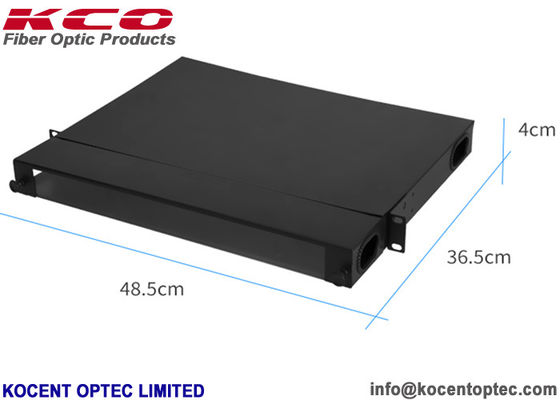

Product size:


High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box 3



MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times＜0.5 dB
Interchange ＜0.5 dB
Anti-tensile force 15kgf



Descriptions:

Fiber Capacity of panel 12-144 core(12 24 48 port usually)
Panel Connector SC LC ST FC
Type Fixed
Dimension 19'' 1U/2U/3U/4U...
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 1.0 1.2 mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5
Cover LSZH
Length 0.3m, 0.5m


Relation Product:

High Density 96fo 96core 19'' 1U OM3 OM4 MPO MTP Fiber Optic Patch Panel Terminal Box 4





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
