12fo 24fo Multimode OM3-300 Elite IL MPO MTP Female Optical Patch Cord
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Connector | MPO | Fiber | MM, OM1, OM2, OM3, OM4, OM5 |
|---|---|---|---|
| Cover | PVC, LSZH | Insertion Loss | 0.35dB |
| Return Loss | 55dB | Diameter | 2.0mm, 3.0mm |
| Length | 1, 3, 5, 7, 10, 15, 20, ... | Core | 50/125 |
| Fiber Count | 4fibers, 8fibers, 12 Fibers, 24 Fibers | Color | Aqua, Pink, Violet, Customized |
| Highlight | MTP Female Optical Patch Cable,MPO Female Optical Patch Cable,5m Multimode Optical Patch Cable |
||
Product Description
4fo 8fo 12fo 24fo Multimode OM3-300 Elite IL MPO MTP Female Optical Patch Cable 3m 5m
Descriptions:
- MTP MPO patch cable facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network installation or reconfiguration time and cost, they are used to interconnect cassettes, plane or fan outs.
- High density MPO/MTP fiber patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
- Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box.
- This is known as "interconnect-style cabling".
- It offered in fiber types in standard 8, 12, 24 or 48 cores versions using a compact and rugged microcables structure.
- The compact cable optimize cableway use and improve airflow.
- These MPO/MTP cable are built with highest quality components.
- MTP/MPO fiber patch cables allow high-density connections between network equipment in telecommunication rooms.
- MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
- MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber typs in standard 8core, 12core, 16core, 24core, 48 cores and also 72core, 96 cores versions using a compact and rugged microcables structre.
- The MTP/MPO connector is approximately the same size of a SC connector but since it can accommodate 8 fibers,12 fibers, 16fibers and 24 fibers.
- Low loss elite versions are offered, featuring low insertion loww for demanding high speed networks where power budgets are critical.
- They use a simple push-pull latching mechanism for easy and intuitive insertion and removal.
- It provides up to 8, 12, 16, 24 times the density, thereby offering savings in circuit card and rack space.
Application
- Builing communication center
- Bank Data center
- Communication center rooms
- FTTH (Fiber to The Home)
- FTTA (Fiber to the attena)
- LAN (Local Area Network)
- FOS (fiber optic sensor)
- Fiber Optic Communication System
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Features:
- High density cable
- Optimized performance
- Available in Elite insertion loss and standarad insertion loss.
- Ulitize MPO/MTP connectors
- Inner: Ceramic Ferrule
- With 8-fibers, 12-fiber, 16-fiber and 24-fiber MPO/MTO connector standard
- Available in OS1/2, OM1, OM2, OM3 and OM4, OM5
- Telcordia’s GR-326-Core, IEC Standard
- Green Production, RoHS Standard
- Interface polished type has PC, UPC and APC
- Support use in attaching directly to 40/100G transceivers
- 100% factory tested, with test results included for each assembly

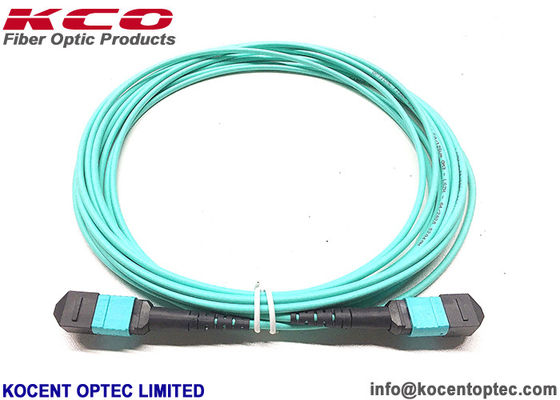

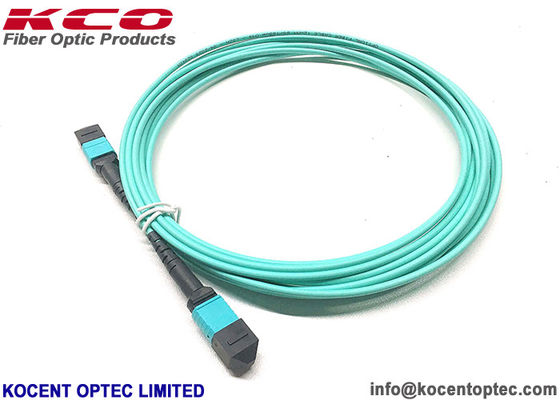

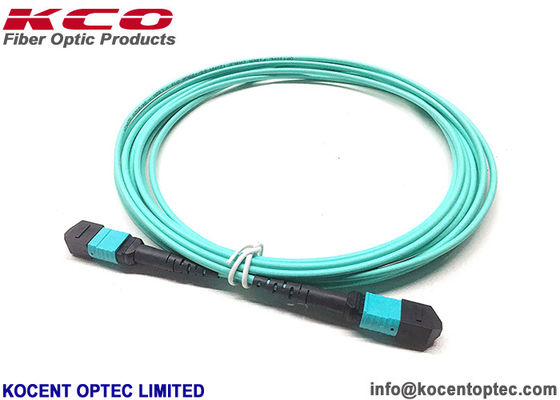

Products photo:
Type |
Single Mode | Single Mode | Multi Mode | |||
| (APC Polish) | (UPC Polish) | (PC Polish) | ||||
| Fiber Count | 8,12,24 etc. | 8,12,24 etc. | 8,12,24 etc. | |||
| Fiber Type | G652D,G657A1 etc. | G652D,G657A1 etc. | OM1,OM2,OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss | Low Loss | Low Loss | ||||
| ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.75dB | ≤0.35 dB | ≤0.60dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310nm | 1310nm | 1310nm | |||
Relation products:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

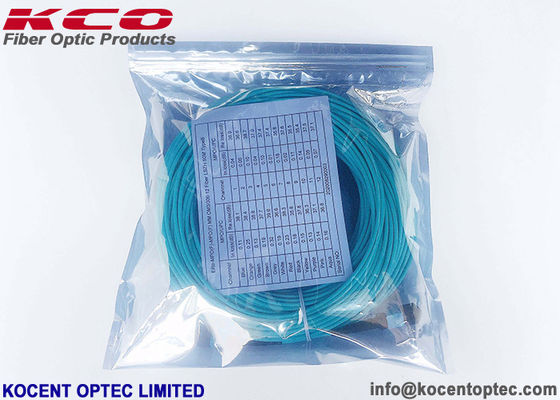

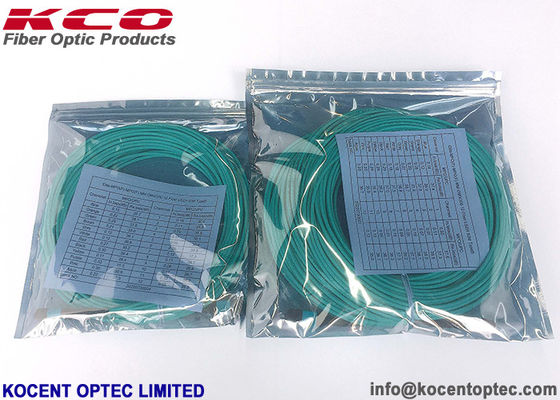

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
