Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box

  • Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box
  • Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box
  • Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-TK-208
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-TK-208
Color Grey/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor IP65 Capacity 16 Port
Splitter 1*8 Adaptre SC/UPC
Highlight

SC UPC Fiber Ditribution Box

,

16fo Pole Mount Terminal Box
Leave a Message
Product Description

Indonesia Telecom ODP OTD FDP Fiber Ditribution Point Pole-mount Terminal Box 16fo SCUPC



Descriptions:

- It is especially for connection and protection for fiber cable for FTTH.
- This fiber optic terminal box applies to the communication room and various network room wall installation or desktop installation.
- FTTH insert optical fiber terminal splitter box, arc, horizontal type.

- Optical Distribution Point with Solid Splitter (ODP Solid) is designed to connect to Feeder / Distribution cable to subscriber’s Drop Cable using PLC Splitter in FTTx networks.

- This ODP has two (2) input ports and 16 output ports on the bottom and it is easy to install on the pole or wall.



Operating Conditions:
- Temperature range: -45°C~+85°C
- Relative humidity: ≤85%(+30°C)
- Atmospheric pressure: 70KPa~106KPa



Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss:

≥50dB(UPC),

≥60dB(APC)
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)



Specification:

Item KCO-TK-208
Dimension 345x300x95mm
Net Weight 1.8kg
Splice tray 1pcs
Adapter ports 16 port
Splitter Mini Tube PLC Splitter 1*8
Splitter no. max. 2pcs
Color Grey
Working Temperature -25°C ~ 60°C (5 to 95% relative humidity)



Feature:
- Outdoor type, compacted wall mount and pole mount type;
- Nonmetallic material, industry standard user interface, be made of ABS plastic;
- Simple and clearly arranged incoming and outgoing cable management;
- Higher fiber count capacity box is available upon request
- Easy maintenance, easy access with front door;
- Support both mechanical and fusion splicing, wall mounting and pole mounting application;
- Low cost solution, customized design with high protection for the terminal fibers.



Application

- PON networks;

- Widely used in FTTX systems;
- Telecom project
- Fiber optic termination, indoor and outdoor application;
- CATV networks

- Data communications networks

- Telecommunication networks;
- FTTD (Fiber To The Desk) interfaces.

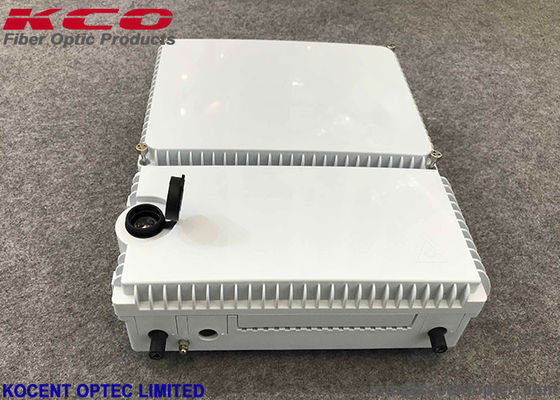

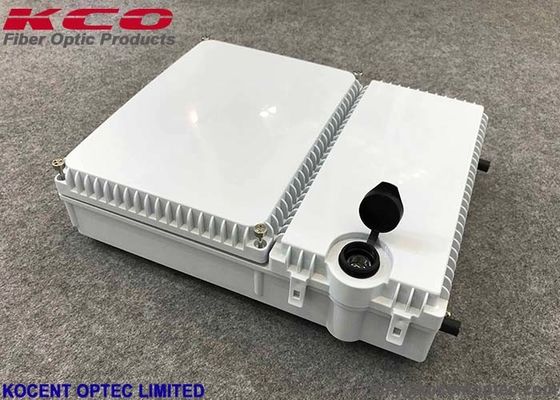

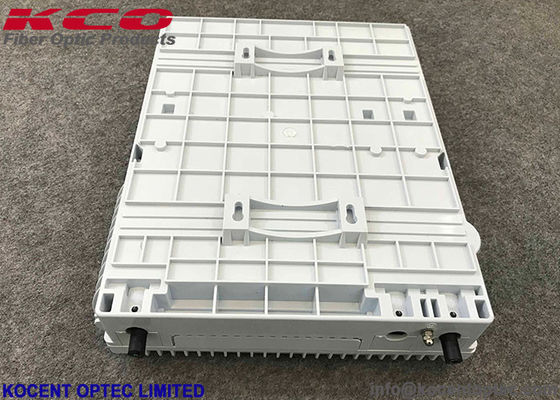

Products photos:



Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box 0
Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box 1
Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box 2



Related Products:

Telkom 1*8 Splitter Box ODP OTB FDP 16fo SC UPC Pole Mount Terminal Box 3



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc

- Standard shipping port: Shenzhen, Hongkong, Ningbo
