8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback

  • 8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback
  • 8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback
  • 8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback
  • 8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-LB-MPO-OM4-8
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector MPO Fiber MM, OM1, OM2, OM3, OM4, OM5
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... P/N KCO-LB-MPO-OM3-08
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Pink, Violet, Customized
Highlight

40G MPO MTP Cable

,

MPO Fiber Optic Patch Cable
Leave a Message
Product Description



MPO Loop Back MTP Loop Back OM4 50/125 Multimode Fiber Optic 40G 100G 8 12 16 24fo



Description:

- MPO MTP Loopback modules are used widely within testing environment especially within parallel optics 40/100G networks.

- Devices allow verification and testing of transceivers featuring MTP interface – 40GBASE-SR4 QSFP+ or 100GBASE-SR4 devices.

- MPO MTP Loopbacks are built to link Transmitter (TX) and Receivers (RX) positions of MTP transceivers interfaces.

- MPO MTP loopbacks can facilitate and speed up IL testing of optical networks segments by connecting them to MTP trunks/patch leads.



Features:
- High Performance in IL & RL
- 4, 8, 12, 16 and 24 fiber connector terminations and assemblies
- Designed for low loss and standard loss SM and MM applications
- Economical solution for mass-termination of fiber
- Suitable for MPO/MTP application
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade



MPO Product Catalog:

1/ MPO/MTP Trunk Cable
2/ MPO/MTP Harnesses Cables
3/ MPO/MTP Fan out 0.9mm Patch Cords
4/ IP-Series MPO/MTP Assembly
5/ High Density Patch Cords
6/ MPO/MTP Loopback
7/ MT Patch Cords
8/ MPO/MTP Cassettes
9/ MPO/MTP Fiber Optic Patch Panel

Products photo:

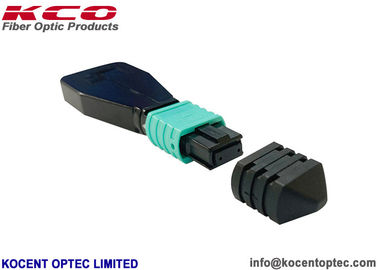

8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback 0

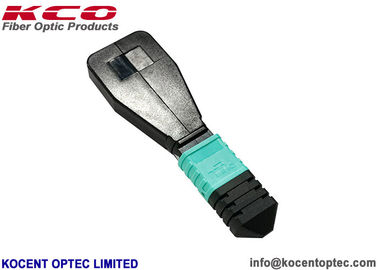

8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback 1

Connector Performance Specifications:

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color

Standard (green),

Elite (Yellow)

Standard(Beige)

Elite(Auqa)
Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm



Fiber Cable Perfomance Specifications:

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter 3.0mm 5.5mm or customized
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Tensile Strength 500N
Operating Temperature -20 to 70 ℃
Storage Temperature -40 to 75℃



Application

- CATV,

- Metro,

- Data Center,

- Test Equipment,

- Premise installations,

- Active device termination,

- Passive fiber optic system,

- Data Processing networks,

- Telecommunication networks,

- Local Area Networks(LANs),

- Wide Area Networks(WANs),

- FTTx (FTTH, FTTO, FTTB, FTTA, ...).



Relation products:

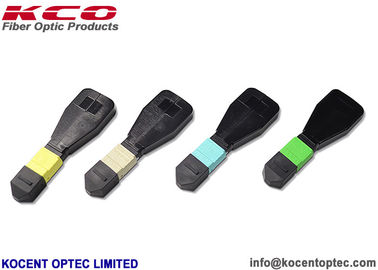

8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

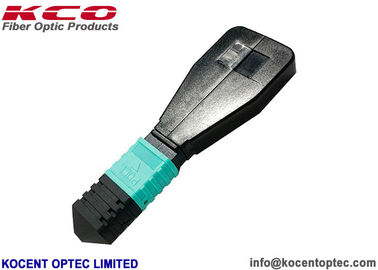

8fo 12fo 16fo 24fo OM3 OM4 Multimode MPO Loop Back MTP Patch Cable Loopback 3



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
