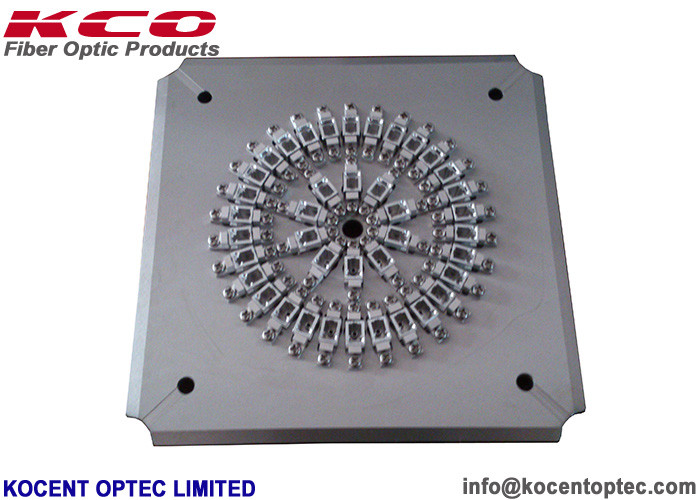

24 Positions 48 Connectors LC APC Fiber optical Polishing Fixture Jigs
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | RoHS, ISO |
| Model Number | KCO-4JIG-LCA-48 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-4JIG-LCA-48 | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | LC/APC Connector | Disk Size | 179mm |
| Connector | 48 Connector | Machine | Corner Pressure Polishing Machine |
| Highlight | Fiber Optic Polishing Machine Jig,24 Ports Polishing Jig |
||
Product Description
LC/APC Polishing Fixture Jigs 24 Ports 48 Connectors Center Polishing Machine Corner Grinding Machine
Description:
- Designed for grinding and polishing LC/UPC connectors
- The polishing jigs (or also be called polishing fixture) is using to fix the fiber optic connector when polishing.
- It is one of most importance part in the fiber optic patch cord production line.
- LC connectors have replaced SC connectors in corporate networking environments due to their smaller size; they are often found on small form-factor pluggable transceivers.
- Optical fiber connector end face has excellent polishing quality, high 3D pass rate and low repair rate
- Simple and flexible operation, SC, FC, LC, ST, E2000, SMA, ... can be used by disassembling interchangeable adapters, but it requires professional operation
- The product is made through multiple special processes, which is wear-resistant, rust-proof, and not easily deformed.
Features:
- Adopt central pressurized way to polish, more stable;
- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- Made with high quality, by using hardened steel S13;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
- Really trustworthy LC/UPC connector polishing jig.
Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.
Specification
Applications:
| Product Type | Application |
| D |
· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing) ·Polishing for magnetic heads and hard disks ·Lapping and polishing for optical glasses, optical crystal , LED ·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) ·Edge polishing for silicon wafer |
| SC |
·Epoxy and glass removal ·Lapping and polishing for plastic ferrules ·Fine finishing and polishing for magnetic heads |
| AO |
·Polishing for fiber optical connectors ·Polishing for silicon wafer used in Solar cells ·Polishing for hard disks ·Polishing for ITO ·Lapping and polishing for optical crystal |
| CO |
·The final polishing for fiber optical connectors ·Polishing for optical devices |
| SO | ·The final super-precise polishing of optical fiber connector |
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) | ||
| Grit Size/um | 30 | Green | Light Green | Green | |||
| 20 | White | ||||||
| 16 | White | ||||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |||
| 12 | Yellow | ||||||
| 9 | Blue | Orange | Gray-green | Blue | |||
| 6 | Yellow | ||||||
| 5 | Gray-green | White | |||||
| 3 | Pink | Tan | Pink & White | ||||
| 2 | Gray-green | Bright Green | |||||
| 1 | off-white | Lavender | Gray-green | Blue | |||
| 0.5 | off-white | Brown-yellow | White | White | |||
| 0.3 | White | Dark Red | |||||
| 0.2 | Grey | ||||||
| 0.1 | Light Brown | White | |||||
| 0.02 | Transparent | ||||||
| 0.01 | Transparent | ||||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water | ||
| Standard Size |
Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) |
||||||
|
Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch) |
|||||||
| Note: Other film sizes are available upon request. | |||||||
Product pictures:
Fiber Optic Patch Cord Production Process:
OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
