2*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product

  • 2*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product
  • 2*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product
  • 2*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number FAST-55/60-SC-APC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 350,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type FAST SC/APC Color Blue, White, Gray , Black
Insertion Loss 0.2dB Return Loss 55dB
Tensile Strengh 50 N Length 55mm, 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description

FTTH Solution Product SC /APC Fast Connector, Quick connector, 2*3mm 2.0MM 3.0MM



Product sescriptions:



 Fiber Fast Connector is used for field assembled optical fiber connector ,widely used in fiber to the home (FTTH) access optical networks, to assemble with drop cable quickly.



1. Twin end-face of pre embedded fiber is polished in the factory..

2. Fiber optics is aligned in V-groove through the ceramic ferrule.

3. Side cover design provide complete preservation of the matching liquid.

4. Ceramic ferrule with pre-embedded fiber is polished to APC.

5. Length of the FTTH cable is controllable

6. Simple tooling, easy operation, portable style and reusable design.

7. Connector size: 49.5*7*6mm(55mm) or produced as per client's request.



Fast Connector Feature:



1. No special assembling tool
2. Easy for assembling with mechanical splice and no polishing
3. Easy for learning technology by a simple assembling method (within 1 and half minutes)
4. Minimize the defect rate by features of removal and reusable.

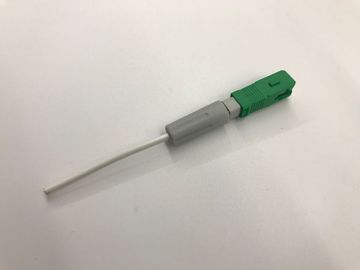

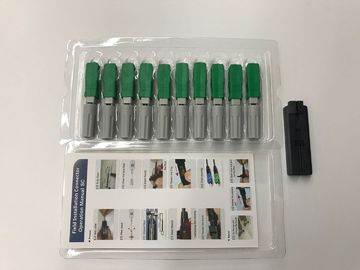

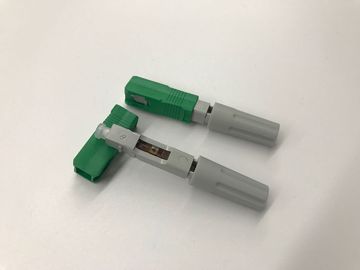

Product Photos:



2*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product 02*3mm Fast Quick Connector SC /APC 50N Tensile Strengh FTTH Solution Product 1





Fast Connector Application:



1. CATV

2. Telecommunication networks

3. Test equipment

4. Local Area Networks(LANs)

5. Data processing networks

6. Other industry and military applications



Fast Connector Specification

Item Parameter
Cable Scope 3.0 x 2.0 mm & 3.0mm & 2.0mm
Fiber Diameter 125μm ( 652 & 657 )
Coating Diameter 250μm
Mode SM
Operation Time about 15s(exclude fiber presetting)
Insertion Loss ≤ 0.25dB(1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength  >5 N
Tighten Strength of Coating >50 N
Temperature -40~+85°C
