OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray

  • OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray
  • OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray
  • OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODF-2000
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor, Data Center Max Capacity 720 Fibers
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description



OEM ODM Optical Fiber Distribution Frame ODF Rack 19 inch 720cores 2m 2.2m



Product introduction:
- Fiber Optic Cabinet is special design for indoor data center. It is fit with 19 inch size.
- Cabinet high can do: 2m and 2.2m as customer request.

- New design directly use the tray, to save more cost and space, also can expand more capacity.

- Easy to use and operate.

- It is suitable for branching single fiber cable into multi fiber cable.



Applications:
- FTTx (FTTA, FTTB, FTTH, FTTO, ...),
- LAN,
- WAN,
- Data center,
- CATV,

- Telecommunications subscriber loop



Features:

- Cable can lead in from the bottom of the box, the entry is under the protection of special rubber parts.

- It is composed of case body, fiber optical splice tray and adaptor fixing frame.
- Combine fusion and connection, surplus fiber holding, and patch cord holding in integration
- Surplus fibers can be twisted around two special plastic rings, which ensure the bending radius is bigger than 40mm.
- Adapter panel to fix adaptors which available for different types of adaptors, easy for operation and avoid any unexpected damage to fiber.
- It is devised into two parts, one links with optical cables for fusion connection between optical cable and fiber pigtail and another links with patch cord.



Quick Information:

Part number KCO-ODF-2000
Name 19 inch indoor fiber optic distribution frame
Capacity Max 720 cores
Material Steel, 1.2mm
Cable Outdoor cable, indoor cable, ftth cable
Cable diameter Max. 22.0mm
Adapter SC, LC, FC, ST, E2000, etc
Size 2000x800x400mm


Dimension:

P/N Dimensions (H * W * D) Capacity
KCO-ODF-2000-720SC 2000x800x400mm 720 FO
KCO-OC2000-576SC 2000x800x400mm 576 FO
KCO-ODF-2000-1440SC 2000x1200x400mm 1440 FO




Product picutures:

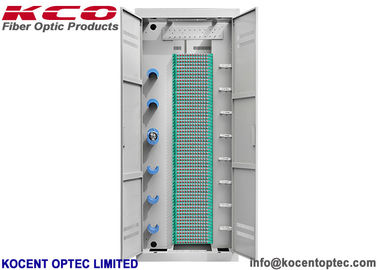

OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray 0

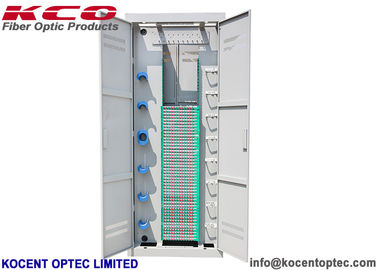

OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray 1





Size:

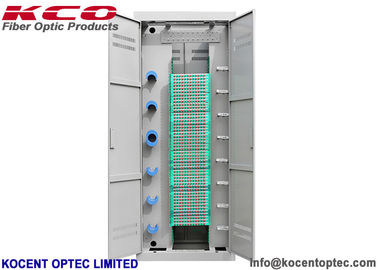

OEM ODM Fibre Optic Distribution Frame ODF 2.0m 576/720 Cores SC FC 12fo Splice Tray 2


Operating Conditions:
- Temperature -45~+85
- Relative humidity ≤85%(+30 C)
- Atmospheric pressure 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection grounding): >1000MΩ/500V(DC)



OEM/ODM Service:
- Logo printing on label: free.

- Logo printing on packing carton box: contact with our sales team to get more information.

- Logo lettering on goods: conntact with our sales team to get more information.

- OEM service: yes.

- ODM service: yes.


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden/plastic pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

- Standard export sea port: Shenzhen, Hongkong, Ningbo

- Standard export air port: Shenzhen, Guangzhou, Hongkong, Beijing, Shanghai, Hangzhou.
