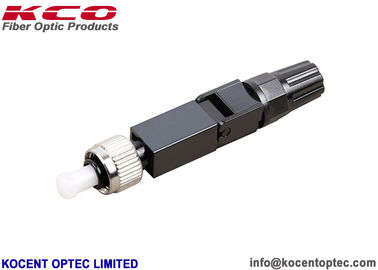

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable

  • Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable
  • Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable
  • Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable
  • Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable
  • Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FAST-FCU-3.0
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details plastic module, PE bag, Carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type FC/APC, FCAPC Cable Available 2x3.0 Ftth Cable, 0.9mm, 3.0mm Cable
Color Black Wave Length 1260~1650nm
Application FTTH, CATV Fiber Mode Single Mode, SM 9/125
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description



FTTA FTTB FTTO Single mode Fiber Optic FC Fast Connector For FTTH Drop Cable



Descriptions:

- Quick Assembly Connector (also named “ No-Polish Connector ” , “Pre-polish Connector”, "Mechanical Field-Mountable Fiber Optic Connector" or “ Fast Connector ”) is an easy-to-install device.

- No tool or jig is required. It is universal for 250um /900um / 2.0mm / 3.0mm / Flat Cable.

- Fiber Optic Fast Connector is designed to simple the connection without fusion splicing machine.

- This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver.

- The connector adopts Fiber Pre-embed Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.
- Applicable to connection with field mountable indoor cable, pigtail, patch cord and transformation of patch cord in data room and directly used in specific ONU.

- All the optical and mechanical index meet the patch cord standard, to achieve to make the patch cord via mechanical cold junction, it change the traditional splice opinion, offer the powerfull support for FTTx.





Quick detail:

- Name: Single Mode FC/APC Fiber Optic Fast Connector

- P/N: KCO-FAST-FCA-3.0

- Connector: FC

- Ferrule end-face: APC

- Ferrule size: 2.5mm

- Structure: Pre-polished, Un-polished

- Fiber: G652D G657A G657B3

- Cable diameter: 2.0/3.0mm indoor fiber optic cable, FTTH drop indoor/outdoor cable



Specification:

ITEM Technical Parameters
Applicable for Drop cable / Indoor cable
0.9mm Tight Buffer Fiber, 2.0mm, 3.0mm Drop Cable
Optical fiber diameter SM(9/125), MM(50/125, 62.5/125)
125μm ( 657A & 657B )
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss > 50db(PC), > 55db(UPC), > 65db(APC)
Fastening strength of naked fiber >5 N
Fastening strength of naked fiber holder >10 N
Tensile strength >50 N
Using temperature -40~+75°C
On-line tensile strength (20 N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB


Application:

- FTTx (FTTA, FTTB, FTTH, FTTO, ...)

- CATV

- Metro

- Test equipment

- Premise installation

- Active device termination

- Data processing networks
- Telecommunication networks
- Local Area Networks (LANs)
- Wide Area Networks(WANs)

- Army field operating work.


Features:

- No special assembling tool.

- Quick and easy for assembling.

- Reusable and repeat operation times are up to 300.

- Integrated protection of the casing to prevent the connector form impact.

- Can be installed in two minutes.

- Power-save, as it does not need hot melting.

- Without any gluing and polishing process.





Products picture:

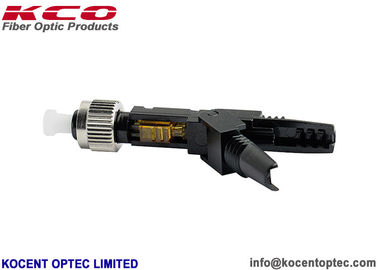

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable 0

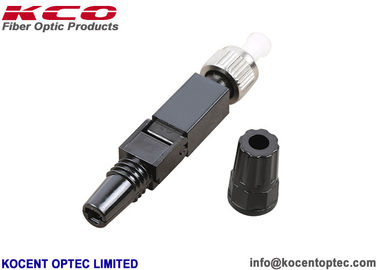

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable 1

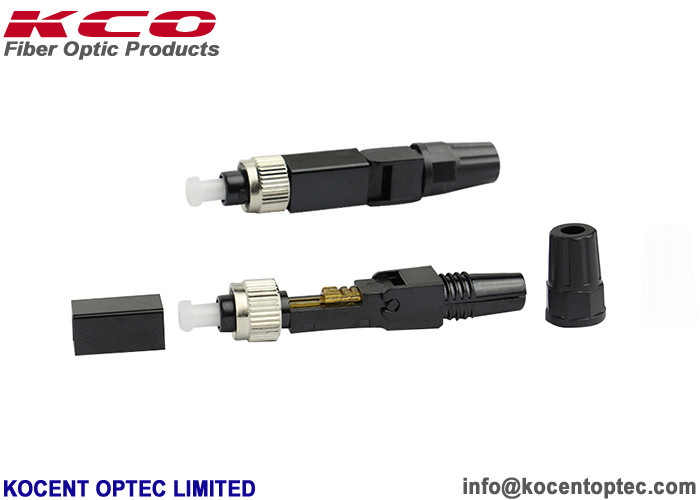

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable 2

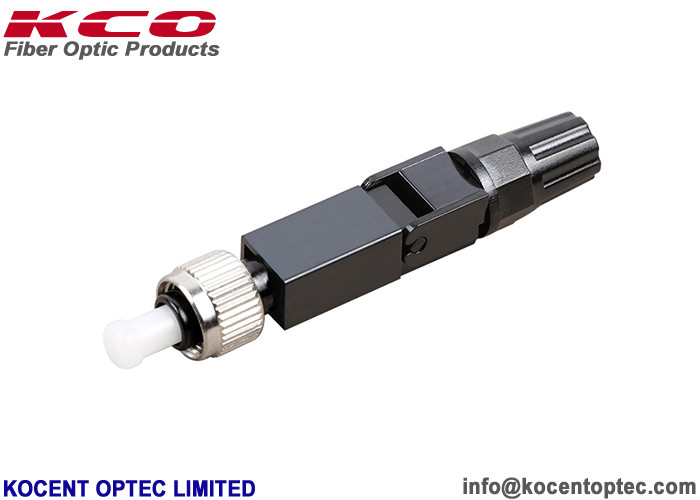

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable 3



Specifications:

Applicable for Drop cable. Indoor cable(0.9/2.0/3.0mm)
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber mode Single mode
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB
Return loss ≥50dB
Fastening strength of naked fiber >5N
Fastening strength of naked fiber holder >10N
Tensile strength >50N
Using temperature -40°C~+75°C
On-line tensile strength (20N) IL ≤ 0.5dB RL ≤ 5dB
Mechanical durability (500 times) IL ≤ 0.5dB RL ≤ 5dB
Drop-off test (drop-off height 4m, once per direction, totally 3 times) IL ≤ 0.5dB RL ≤ 5dB



Delivery Time:

- Material Preparation Time: 3 days (or inventory)

- Production & Assembly Time 7 days

- Testing & Packaging Time: 2 days

- Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time.

- The faster delivery could be negotiable.



Factory photo:

SC/UPC SOC Hot Melt Splice On Fiber Optical Fast Connector 0.9 2.0 3.0mm G652D G657A



Relation Products:

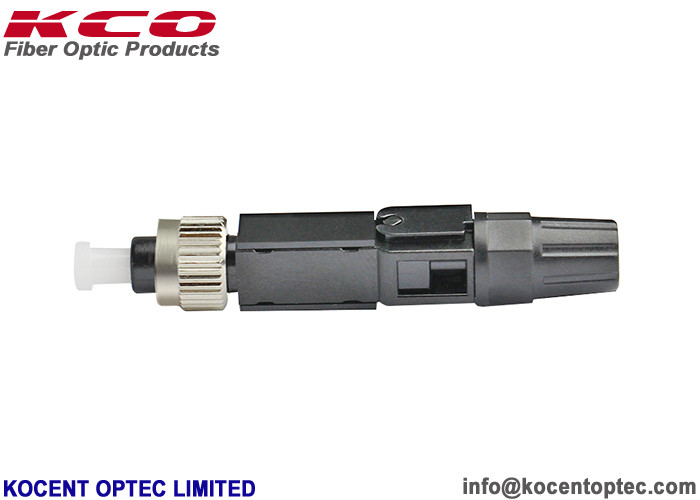

Fiber Optical FC UPC Quick Assembly Connector FTTH FC PC Singlemode Durable 5



OEM/ODM Service:
- Logo printing on label: free.

- Logo printing on packing carton box: contact with our sales team to get more information.

- Logo lettering on goods: conntact with our sales team to get more information.

- OEM service: yes.

- ODM service: yes.


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden/plastic pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

- Standard export sea port: Shenzhen, Hongkong, Ningbo

- Standard export air port: Shenzhen, Guangzhou, Hongkong, Beijing, Shanghai, Hangzhou.
