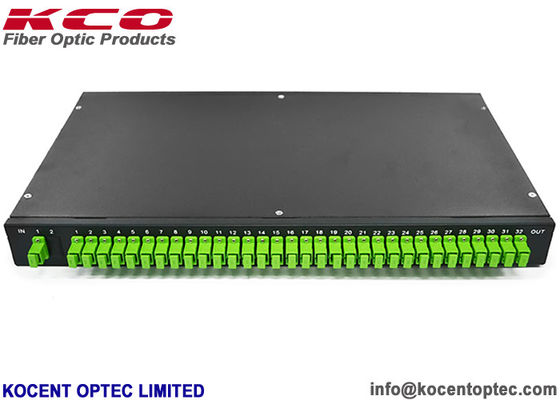

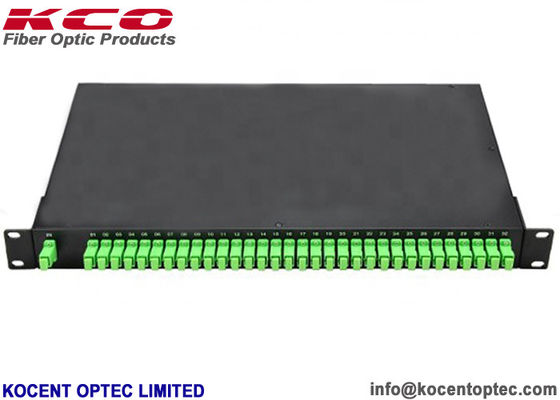

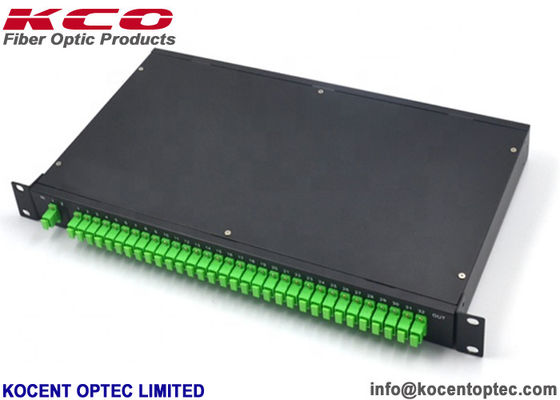

SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box

  • SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box
  • SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box
  • SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Rack-1x32-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 1.0m
Splitter Type 1*32 1x32 Split Way 1 Way Input & 32 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-Rack-1x32-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



1*32 Fiber Optic PLC Splitter Patch Panel / 1x32 Optical Fiber Splitter Rack Mount Terminal Box


Descriptions:
- A fiber optic splitter is based on a quartz substrate of an integrated waveguide optical power distribution device, similar to a coaxial cable transmission system.
- The optical network system uses an optical signal coupled to the branch distribution.
- The fiber optic splitter is one of the most important passive devices in the optical fiber link.
- It is an optical fiber tandem device with many input and output terminals, especially applicable to a passive optical network (EPON, GPON, BPON, FTTX, FTTH etc.) to connect the MDF and the terminal equipment and to branch the optical signal.
- The PLC is a more recent technology. PLC splitters offer a better solution for larger applications. Waveguides are fabricated using lithography onto a silica glass substrate, which allows for routing specific percentages of light.
- PLC splitters offer accurate and even splits with minimal loss in an efficient package.
- 1U 19'' rack mount plc splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
- It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
- Kocent Optec Limited supply all type of rackmoutn type fiber optic splitter. Include: 1x2, 2x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x32, 2x32, 1x64, 2x64 and even 1x128.
- Connector can be: SC/APC, SC/UPC, LC/APC, LC/UPC, FC/UPC, FC/APC or other connector as customer request.


Features:

- Low Insertion loss and Low PDL
- Uniform power splitting
- High reliability
- Excellent environmental stability
- Compact size and various package


Applications:
- Fiber to the point (FTTX)
- Fiber to the home (FTTH)
- Passive optical networks(PON)
- Local area networks (LAN)
- Cable television (CATV)
- Test equipment



Product photo:

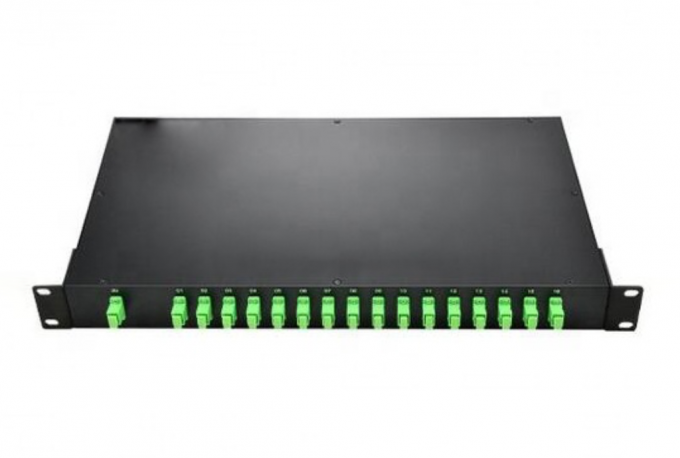

SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box 0

SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box 1



Specifications:

Parameters 1×2 1×4 1x8 1×16 1×32 1×64 1×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.6/4.0 7.2/7.4 10.2/10.5 13.5/13.7 16.2/16.7 20.5/21 23.8/24.5
uniformity (dB) 0.4 0.6 0.8 1 1.2 1.8 2
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.5
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL(dB) 0.5
Operating/Storage Temperature (℃) -40~85
Parameters 2×2 2×4 2×8 2×16 2×32 2×64 2×128
Operating wavelength 1260 ~1650nm
Insertion Loss (dB)(P/S Grade) 3.8/4.2 7.5/7.8 10.7/11 14/14.2 17/17.5 21/21.5 25/25.5
uniformity (dB) 0.6 1 1.2 1.5 1.8 2 2.5
PDL (dB) 0.2 0.2 0.3 0.3 0.3 0.4 0.4
Return Loss (dB) ≥55
Directivity (dB) ≥55
TDL (dB) 0.5
Operating/Storage Temperature (℃) -40~85
Note: All the data above does not include connector



Relation products:



SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box 2





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



SC/APC Connector 1*32 Fiber Optic PLC Splitter Patch Panel 1x32 Rack Mount Terminal Box 3



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
