E2K Hybrid Male To Female Fiber Optic Attenuator E 2000 APC 10dB 15dB 20dB 25dB Easy To Operate

  • E2K Hybrid Male To Female Fiber Optic Attenuator E 2000 APC 10dB 15dB 20dB 25dB Easy To Operate
  • E2K Hybrid Male To Female Fiber Optic Attenuator E 2000 APC 10dB 15dB 20dB 25dB Easy To Operate
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-E2K-attenuator-**dB
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type E2000 Attenuator Range 1dB~30dB
Attenuator Type Male To Female Type Body Material Plastic
Wave Length 1310, 1490, 1550, 1620nm Return Loss 55dB For UPC, 65db For APC
Polarization Dependent Loss Less Than 0.1dB P/N KCO-E2K-attenuator-**dB
Highlight

optical fiber attenuator

,

fiber optic variable attenuator
Leave a Message
Product Description



E 2000 APC Attenuator / E2K UPC Male to Female Fiber Optic Attenuator 1dB 3dB 5dB 7dB 10dB



Introduce:

- Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level.

- We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, MU, MPO, E2000 and Variable fiber optic attenuators.

- Commonly used fiber optic attenuators are the female to male type, which is also called a plug fiber attenuator.

- They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors.

- Fixed value fiber optic attenuators can reduce the optical light power at a fixed level, for example, a 10dB SC fiber optic attenuator will reduce the optical power 10dB and utilize a SC male to female attenuator.

- Variable fiber optic attenuators are with adjustable attenuation range.

- There are also attenuation fiber optic patch cables available, their function is same as attenuators and are used inline.

- E2000 fiber optic attenuator includes E2000 single mode female to female fiber optic attenuator from 1dB to 30dB

- Use to connect E2000 fiber optic pigtail or patch cables to reduce the power of signal at a certain attenuation.

- E2000 fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself.

- This is often a requirement in Dense Wave Division Multiplexing(DWDM) and Erbium Doped Fiber Amplifier (EDFA) applications where the receiver can’t accept the signal generated from a high-power light source.


Characteristics:
- Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations.

- 1310nm, 1550nm, 1250-1625nm and 1350/1550nm dual wave lengths

- Metal ion doped fiber
- High-power light source durability
- Wavelength independence
- Attenuation levels ranging from 1dB to 30dB, with standard and premium tolerances, plus custom configurations.


Applications:

- Fiber optic test

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV





Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Data Center Infrastructure

- Storage Area Network and Fiber Channel

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths

- Based on IEC/Telcordia Bell GR-326-Core Tested

Specification:

Parameter Value Unit
Operating Wavelength 1310/1550 nm
Tolerance for 1~5 dB Attenuation ± 0.5 dB
Tolerance for 6~30 dB Attenuation ± 10 %
Return Loss > 65 dB
Operating Temperature -40 to +80 C
Polarization Dependent Loss ≤ 0.1 dB
Mating Durability ≥ 1000 cycle
Transfer Mode SM
Connector Gender Fiexd Male to Female




Product pictures:

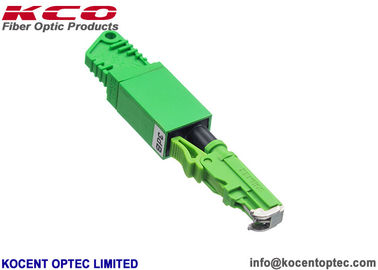

E2K Hybrid Male To Female Fiber Optic Attenuator E 2000 APC 10dB 15dB 20dB 25dB Easy To Operate 0

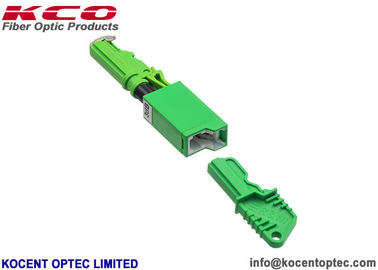

E2K Hybrid Male To Female Fiber Optic Attenuator E 2000 APC 10dB 15dB 20dB 25dB Easy To Operate 1
