Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center

  • Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center
  • Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center
  • Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-MPO-attenuator-**dB
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type MPO Attenuator Range 1dB~30dB
Attenuator Type Male To Female Type Body Material Plastic
Wave Length 1310, 1490, 1550, 1620nm Return Loss 55dB For UPC, 65db For APC
Polarization Dependent Loss Less Than 0.1dB Maximum Optical Input Power 1000mW
Highlight

breakout fiber optic cable

,

fiber optic breakout cable
Leave a Message
Product Description



Femal to Male MPO Optical Fibre Attenuator 12core / Fibra Optica Attenuator 1dB 3dB 5dB 30dB



Introduce:

-  MTP/MPO attenuator loopback can achieve 40/100G parallel optical transmission system or other similar applications of a channel optical signal uniform attenuation; conventional attenuation methods require multiple independent attenuator to be applied to different optical signal channels, which is inefficient.
- MTP/MPO Loopback Attenuator provides a fast and efficient solution to test the performance to transmit and the receiving sensitivity of the optical network device. It can obviously simplify the design of the network and provides more accurate and wider range (0-25dB) performance than similar products for 40G/100G optical link test applications.
- The devices are available for 8-Fibers, 12-Fibers, 16-Fiber, 24-Fibers or 32-Fibers versions and customer specified pinout configurations, as well as multiple fiber types to match an existing system.

- MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection.

- Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time.

- The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

- The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.

- This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS.


Specification:
Item Unit Parameter
Operating Wavelength nm SM:1310/1550nm MM: 850 /1300nm
Attenuation Range dB 1-10dB(1dB step), 15, 20, 25dB
Return Loss dB PC:≥50 UPC: ≥55 APC: ≥60
Attenuation Tolerance dB ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB)
Working Temperature °C -25°C~+75°C
Storage Temperature °C -40°C~+ 85°C



Applications:

- High Stability and High Durability
- Compact Housing Dimension
- QSFP Available
- RoHS Compliant

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test



Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Data Center Infrastructure

- Storage Area Network and Fiber Channel

- Various 40G and 100Gbps Protocols

- Based on IEC/Telcordia Bell GR-326-Core Tested

- Metal ion doped fiber

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths



Technical request:

Product MPO/APC 12 core FM attenuator
Range 0-30dB
Return loss >60dB
Insertion loss 1-5db≤±0.5dB 5-30db≤10%
Humidity 95% RH
Wavelength parameters SM 1310&1550nm
Durability >1000 mating
Operate Temperature -40C-80C
Storage Temperature -55C-85C
Sleeve material Ceramic





Product pictures:

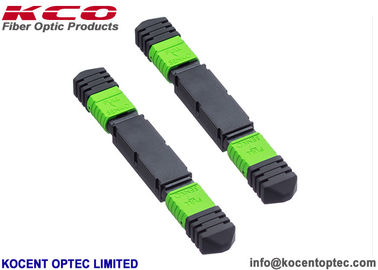

Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center 0

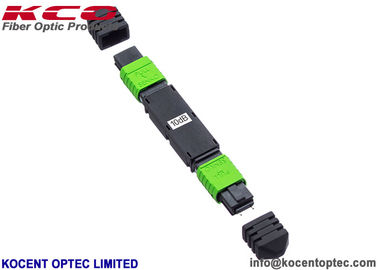

Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center 1



Fiber Optic Attenuator Series:

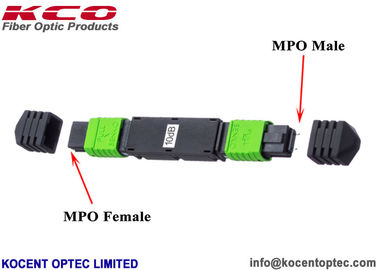

Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center 2



Relation products:



Fibers Optical MPO Attenuator 8core 12core 16core 24core 36core Female To Male For Data Center 3



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
