Male To Female Fiber Optic Attenuator MPO APC 1dB 3dB 5dB 10dB 15dB 20dB Small Size

  • Male To Female Fiber Optic Attenuator MPO APC 1dB 3dB 5dB 10dB 15dB 20dB Small Size
  • Male To Female Fiber Optic Attenuator MPO APC 1dB 3dB 5dB 10dB 15dB 20dB Small Size
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-MPO-attenuator-**dB
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, plastic module, carton box, wooden pallet
Delivery Time 3~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000 pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector Type MPO Attenuator Range 1dB~30dB
Attenuator Type Male To Female Type Body Material Plastic
Wave Length 1310, 1490, 1550, 1620nm Return Loss 55dB For UPC, 65db For APC
Polarization Dependent Loss Less Than 0.1dB Maximum Optical Input Power 1000mW
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description



MPO APC Fiber Optic Attenuator 1dB 3dB 5dB 10dB 15dB 20dB / Male To Female Fiber Attenuator



Introduce:

- Fiber optic attenuator is a device used to reduce the power level of an optical signal, either in free space or in an optical fiber.

- The basic types of optical attenuators are fixed, step-wise variable, and continuously variable.

- Fixed optical attenuators used in fiber optic systems may use a variety of principles for their functioning.

- Preferred attenuators use either doped fibers, or mis-aligned splices, since both of these are reliable and inexpensive.

- Inline style attenuators are incorporated into patch cables.

- The alternative build out style attenuator is a small male-female adapter that can be added on to other cables.

- The fiber optic attenuators can be used on a more permanent basis in order to match the signal with a transmitter and receiver's specific power levels. Commonly used attenuation range is from 1dB to 30dB.

- MPO Attenuator is used to reduce optical-signal electric power in all channels of 40/100G Parallel Optic Transmission, and other equipment with using MPO interconnection.

- Technique of this product makes network's composition more concise than those of conservative way which is the connection method of attenuator independently in each channel, as downsizing the volume and saving time.

- This MPO Attenuator meets TIA/EIA 604-5. And IEC 61754-7 with compliance for RoHS.



Features:

- High precision.

- Good stability.

- Small size and bulk.

- Easy to operate.

- Based on IEC/Telcordia Bell GR-326-Core Tested

- Metal ion doped fiber

- High-power light source durability

- Wavelength independence

- Attenuation levels ranging from 1dB to 25dB

- 1310nm, 1550nm and 1310/1550nm dual wave lengths



Technical request:

Product MPO/APC 12 core FM attenuator
Range 0-30dB
Return loss >60dB
Insertion loss 1-5db≤±0.5dB 5-30db≤10%
Humidity 95% RH
Wavelength parameters SM 1310&1550nm
Durability >1000 mating
Operate Temperature -40C-80C
Storage Temperature -55C-85C
Sleeve material Ceramic



Applications:

- Erbium Doped Fiber Amplifiers (EDFA)

- Dense Wave Division Multiplexers (DWDM)

- Overpowered fiber optic systems

- Fiber optic communication systems.

- Fiber optic CATV

- Fiber optic test



Product photo:

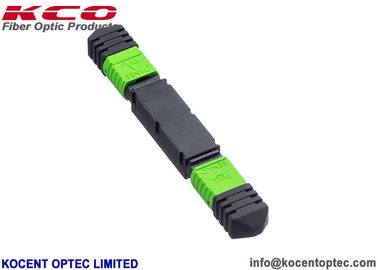

Male To Female Fiber Optic Attenuator MPO APC 1dB 3dB 5dB 10dB 15dB 20dB Small Size 0

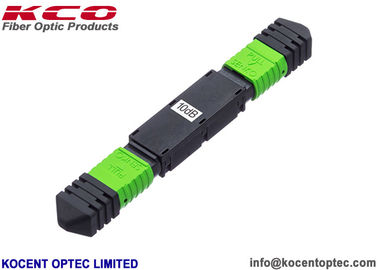

Male To Female Fiber Optic Attenuator MPO APC 1dB 3dB 5dB 10dB 15dB 20dB Small Size 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
