Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S

  • Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S
  • Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S
  • Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S
  • Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-NAP-0216S
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, ABS+PC P/N KCO-NAP-0216S
Color White/ Black/ Customized Connector SC, ST, LC, FC, E2000, Etc
Application Indoor IP55 Capacity 48 Ports SC Simplex Or 96 Ports LC
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description



GPX147 Outdoor Fibra Optica Access Terminal Box 16 Port SC/APC KCO-NAP-0216S FAT Box



Descriptions:

- The fiber access termination box is able to hold up to 16 subscribers.

- It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

- It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.

- It maximum can install 1 pcs 1*8 mini type fiber optic plc splitter.

- Its connector port is compatibility with Huawei mini SC APC water proof connector.

- The outdoor fiber optic distribution spitter box KCO-NAP-0216S is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system.

- The outdoor fiber optic distribution spitter box KCO-NAP-0216S is design to use for outdoor application.

- The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

- It is suiable to use for FTTH, FTTA, FTTB, FTTO telecommunication project.



Quick information:

- P/N: KCO-NAP-0216S

- Material: ABS+PC

- Size: 260*215*115mm

- Weight: About 1.20kgs

- Packing: 1pc/carton box

- Maximum capacity: 1pc of 1*16 plc spitter mini type with SC Connector

- Connector port: compatibility with Huawei mini SC APC water proof connetor

- Accessories: Heat shrinkable tube, screw, protection tube, pole mount kits, PLC splitter, Huawei mini SC APC adapter, ftth drop patch cable.


Feature:

- Water-proof design with IP-65 Protection Level.

- 16 outports for drop cable

- All stainless metal plate and anti-rusting bolts, nuts

- Fiber bend radius control more than 40mm

- Suitable for the fusion splicer or mechanical splice

- 1 Pcs of 1*116 Splitter can be installed as an option

- Mechanical sealing structure and mid-span cable entry.

- Can be used indoor and outdoor, wall mount and pole mount


Specification:
Model KCO-NAP-0216S
IP Protection Grade 65
Raw Material ABS+PC
Number of splice trays 1
Maximum Cable Diameter (mm) 18
Max capacity PLC1*8, PLC1*16, 16SC
End-use temperature -40～+85℃
Adapter waterproof SC simplex
Weight 1.2kg
Color Light Gray
Dimensions 260*215*115mm


Products photos:

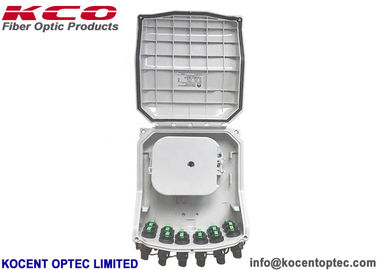

​Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S 0

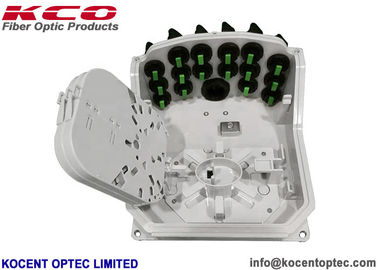

Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S 1





Technical data:
1. Environmental requirement
     Working temperature: -40℃~+85℃
     Relative humidity: ≤85% (+30℃)
     Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet Insertion loss: ≤0.15dB
     UPC return loss: ≥50dB
     APC return loss: ≥60dB
3. Thunder-proof technical datasheet
     The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2, 104MΩ/500V.
     The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V

Related Products:

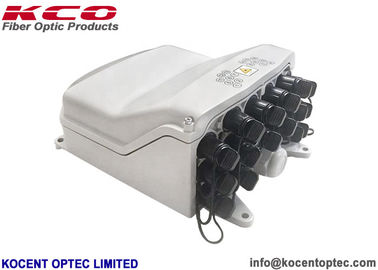

Huawei Mini SC H Connector Fibre Optic Termination Box 16 Port PLC Fiber Optic Splitter KCO-NAP-0216S 2



OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, etc

- Standard shipping port: Shenzhen, Hongkong, Ningbo
