2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate

  • 2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate
  • 2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate
  • 2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate
  • 2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate
  • 2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-FP-02W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS, PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, FC, ST, LC, E2000, Etc
Application Indoor Capacity 2 Fibers
P/N KCO-FP-02W Color White/ Black/ Customized
Highlight

optical termination box

,

fibre termination box
Leave a Message
Product Description



1 Port 2 Port SC / APC Optico Fiber Socket Roseta Face Plate Terminal Box ABS Material

Description:
- KCO-FP-02W Fiber termination boxes wall mount outlets is able to hold up 2 subscribers.

- KCO-FP-02W is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application.

- It integrates fiber splicing, termination, storage and cable connection in one solid protection box.

- KCO-FP-02W two ports fiber optic terminal box, also call fiber optic socket is designed for indoor FTTH solution.
- It can install 2pcs of SC simplex adapter or 2pcs of LC duplex adapter.
- Light weight and mini size, sastify end user request.
- White color of ABS or ABS+PC material, environmental protection.

- Beauty sharp.



Feature:

- Dust-proof design with IP-45 Protection Level.
- Integrated with splice cassette and cable management rods.
- Manage fibers in a reasonable fiber radius condition.
- Easy to maintain and extend the capacity.
- Suitable for the fusion splice or mechanical splice.
- Embedded type surface, easy for installation and removal.
- 2 ports cable entrance for patch cable.

- Middle scew for very easy sealing.

- Light weight, small size and easy installation.
- Made of high class engineering plastic ABS or ABS+PC
- Special fiber routing designs to ensure the bending radii greater than 40mm.
- Adopting the splice trays for easy operations.
- Reliable earth device.
- Equipment with fitting for fiber optic cable fixing.


Size:



2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 0


Quick Information:

Part number KCO-FP-02W
  86*86*25mm
Capacity 2 cores (for SC), 4 cores (for LC)
Material Plastic ABS/ ABS+PC
Cable indoor cable or FTTH drop cable
Cable diameter Max. 10mm
Adapter SC, LC, FC, ST, E2000, etc
Color White



Applications:
- FTTH, FTTx, FTTB
- LAN
- Data centers
- Local area network etc


Operating Conditions:
- Temperature: -45~+85
- Relative humidity: ≤85%(+30 C)
- Atmospheric pressure: 70KPa~106KPa

Qualification:
- Nominal work wave-length: 850nm,1310nm,1550nm
- Connectors loss: ≤0.2dB
- Insert loss: ≤0.2dB
- Return loss: >=50dB(UPC),>=60dB(APC)
- Insulation resistance (between frame and protection grounding) >1000MΩ/500V(DC)

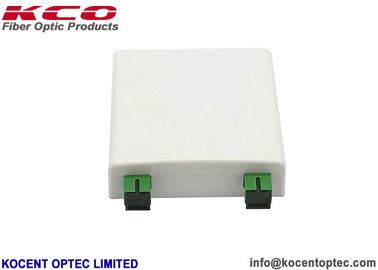

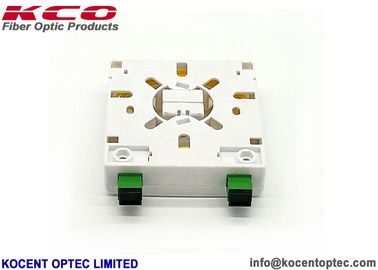

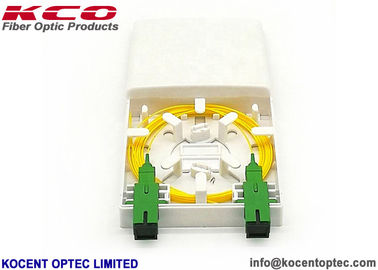

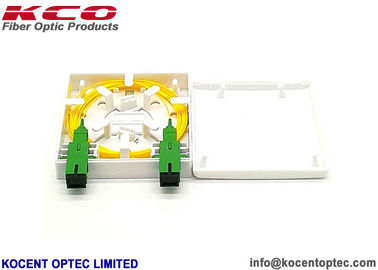

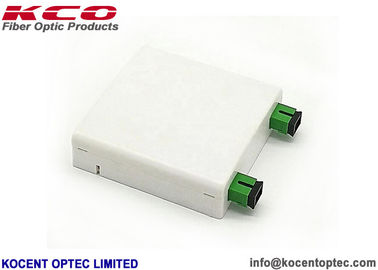

Product photo:


2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 1
2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 2
2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 32 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 4


OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem.

Our OEM and ODM service is always ready to do it. Please contact our sales team to get more support.


2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 52 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 6



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

- Standard upload port: Shenzhen, Ningbo


2 Port Fiber Optic Termination Box SC / APC Optica Fibra Socket Roseta Face Plate 7
