Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material

  • Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material
  • Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material
  • Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material
  • Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material
  • Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-LC/APC-Quad B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Plastic module, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type LC/APC Material Plastic
Chanel Way 4 Ways Insertion Loss 0.2dB
Return Loss 55dB Fiber Mode Singlemode
P/N KCO-LC/APC-Quad B Color Green
Highlight

fibre optic adapter

,

fiber optic adaptor
Leave a Message
Product Description



Green Color Quad LC APC Shutter Adapter Singlemode Mid Coupler 4 Ways



Quick Information:

- P/N: KCO-LC/APC-Quad B​

- Name: LC/APC Duplex Shutter Adapter
- Fiber type: Single mode (SM) 9/125
- Signal way: quad (4 ways)
- Material: Plastic
- IL: less than 0.2dB
- RL: More than 50dB



Description:

LC quad fiber optic adapters have an SC Duplex footprint with plastic flanges and are made for our plastic fiber distribution units, loaded fiber patch panels and loaded fiber wall mount enclosures.

Each fiber coupler fits securely into designated slots and is used to couple LC/PC connections together.



Feature:
LC style to LC style Use in Single-mode or Multi-mode applications.

Free-hanging or panel-mount design.

Dust caps protect against debris and contamination RoHS Compliant

Specification:
Insertion Loss: <-0.2dB
Return Loss: >55dB
Temp Range: -40 ~+85 C
Durability:  <0.2dB after 500 cycles.
Phosphor Bronze Sleeve and Zirconia Ceramic Sleeve Available

Application
Telecom
CATV
LAN
Data communication



Optical Performance
Item Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times



Environmental and Mechanism
Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling -40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Product pictures:

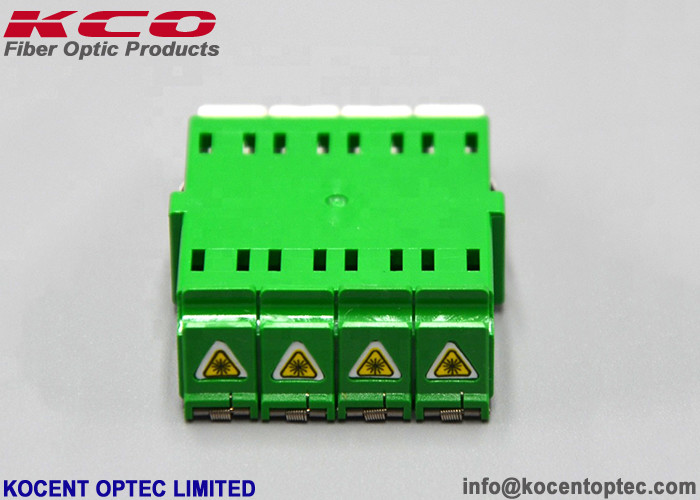

Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material 0

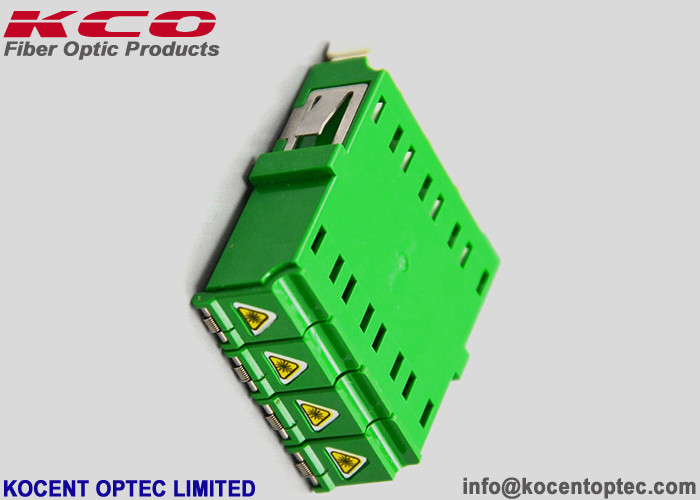

Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material 1

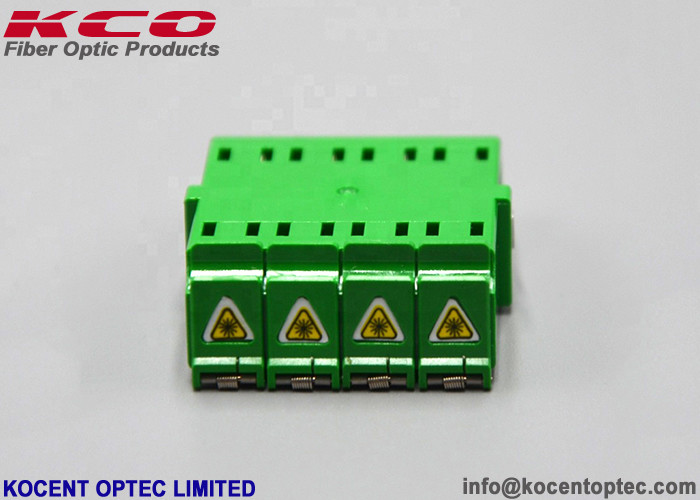

Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material 2



Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

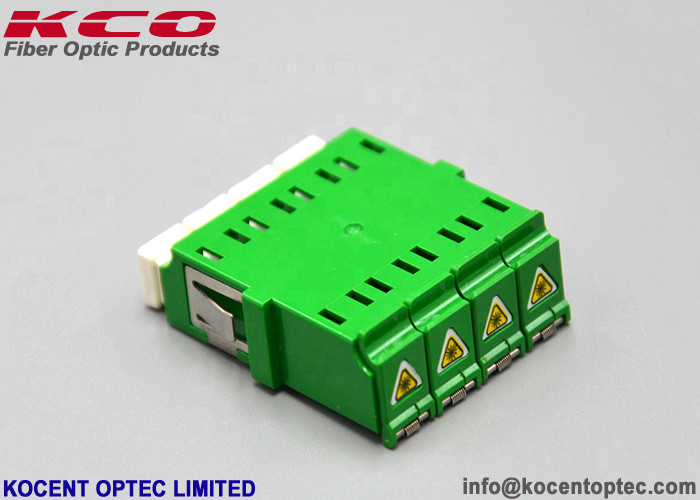

Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material 3


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, ...

- Stardard shipping port: Shenzhen, Hongkong, Ningbo

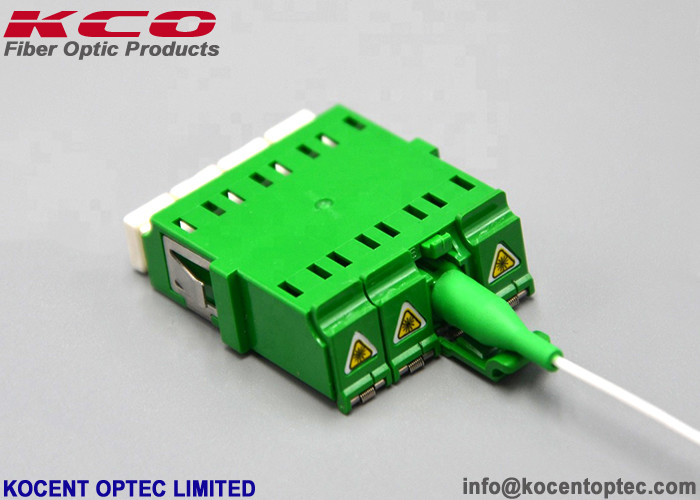

Quad LC APC Shutter Optical Fiber Adapter Singlemode Mid Coupler Plastic Material 4
