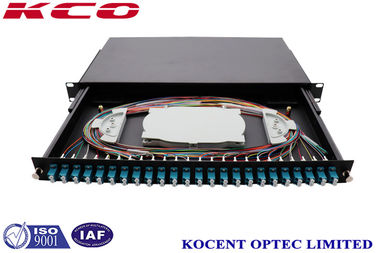

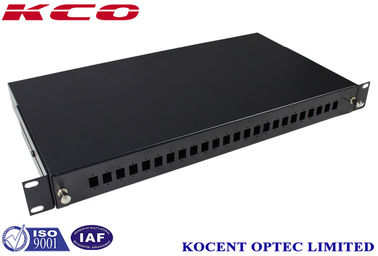

1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19''

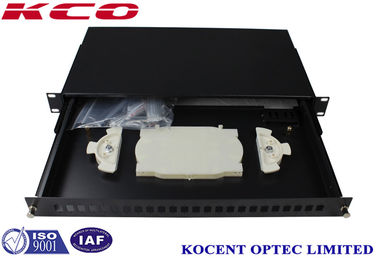

  • 1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19''
  • 1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19''
  • 1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19''
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-SlideH-1U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Tape/ Aluminum Alloy High 1U
Splitter Type Mini Tube Type Split Way 2 Way Input & 16 Way Output
Connector LC/APC. SC/APC Cable 0.9mm
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description

FTTH 19'' Stadard 1U Drawer Slide Fibre Optical Rack ODF Terminal Patch Panel 24ports 48fiber

Description:
- Kocent Optec Limited with more than 10 years of experience in OEM and ODM fiber optic patch panel, we are welcome to customer's request.
If you have your own design of fiber optic patch panel or wall mount terminal box and fiber optic cabinet, please contact with our sales team to get best support.
- Fiber Optic Splicing Patching Rotate Shelves 48 Port Rack Mounted Rotation ODF Optical Fiber Splice Patch Panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network.
- It is available for the distribution and terminal connection of various kinds of optical fiber system.
- These units are available in sizes that fit the most common distribution requirements.
- The box can make by steel tape with thickness 0.8mm, 1.0mm and 1.2mm. Or also can make by Aluminium Alloy material.
- Paint color can choose grey, white or black or as your request.
- OEM service is open for all of old and new customer.
- Logo printing is free for all of order with quantity more than 100pcs.

Introduction
- Fiber patch panel, Also called ODF, fiber optic terminal box.
- It provides efficient cable connections between outside plant cables and equipment inside the buildings and communications facilities.
- The body is made of cold rolled steel sheet.
- Available for FC, ST, SC, LC adapters.
- This fibre patch panel is 19" standard structure which is compliant to international standards.
- There are mainly theretypes of fiber patch panels, Rotary patch panel,wall-mounted and rack mounted types.
- Allowing the cables to be crossed and connected in a variety of ways.
- For this type Slide Patch Panel max can do 48cores, easy to install and manage.

Characteristics:
- Easy to install.
- Improved design for storage
- Cold-roll steel or aluminium alloy, electrostatic painting.
- ABS plastic tray inside. 24cores per tray.
- Different adapter plate available: FC,SC,ST,LC.
- Rotate out drawer for easy cable management.
- Cable entry ports suitable for singe fiber,bundle and ribbon fiber cables
- White, black ,grey color painting optical
- 12core, 24core, 48core, 96core capacity customized.

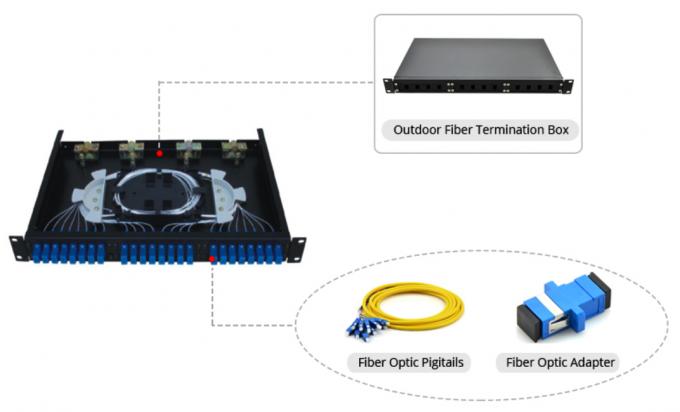

Distribution box full accessories:
1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19'' 0

Specifications:

Product Name 1U rotating fiber optic distribution splice termination patch panel
Module Type Slide Type / Drawer type
Fiber Capacity 12-48 core
Cable Type SM MM OM3 OM4
Panel Connector SC LC ST FC
Dimension 483*250*1Umm
Material Cold Rolled Steel/ Aluminium Alloy
Color Black, White, Grey, Customized
Work Temperature -40℃~+85℃
Thickness 0.8mm, 1.0mm, 1.2mm
High 1U, 2U, 3U, 4U
Cable port 2 ports/ 4 ports/ 6 ports or customized
Connector port SC simplex, ST simplex, FC simplex, SC duplex, LC quad
Pigtail SC, LC, FC, ST, E2000, customized
Splitter 1*2, 1*4, 1*8, 1*16, 1*32, 1*64, 1*128
MOQ 1pc

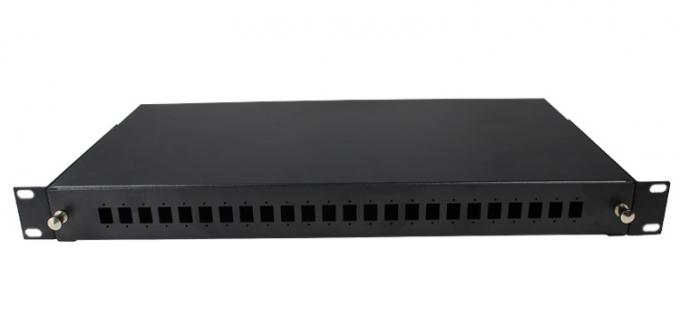

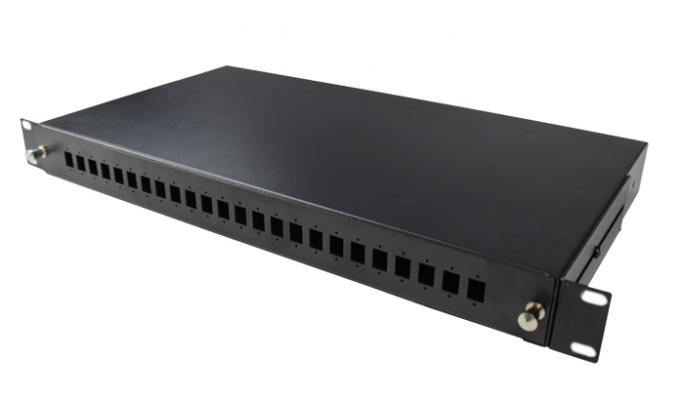

Product picture:
1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19'' 1
1U Drawer Slide Fibre Optical Rack ODF Terminal Fiber Patch Panel 24 Ports 48 Fiber FTTH 19'' 2


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
48 Port LC OM4 Fiber Optic Rack Mount Patch Panel Slide Type 1U Metalic Black
