MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up

  • MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up
  • MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up
  • MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up
Place of Origin Guangdong, China
Brand Name kCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number MPO-adt
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 3~5 working days
Payment Terms Western Union, T/T, L/C
Supply Ability 500,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Plastic Durability 0.3dB
IL 0.3dB Wave Length 1260~1650nm
Type MPO-MPO Operating Temperature -40~+70 Degree
Highlight

qsfp breakout cable

,

breakout fiber optic cable
Leave a Message
Product Description

OM4 Violet Color MPO MTP Adapter Optical Fiber Adaptor Plastic 8fo 12fo 24fo Female to Female



Descriptions:

- The MTP/MPO adapter has two types as key-up to key-down and key-up to key-up.
- It provides the connection between cable to cable or cable to equipment in the MTP/MPO style.
- It works for any MTP Connector from 4 fiber to 72 fiber, widely used in trunk cabling and casettes.
- This adapter meets appropriate standards and is perfect for your paralell optics and MTP adapter needs.

- The MPO Fiber Optic Adapteris to provide MPO Patchcord to MPO patchcord Fiber connecting.

- MPO Optical Adapters are flange type adaptors with plastic housing, both single mode and multimode ones available.

- MPO Adapters are used in high-density backplane and Printed Circuit Board (PCB) applications in data and telecommunications systems. They offer up to 12 times the density of standard connectors.

- The MPO adapters provide significant space and cost savings.

- Compact size and precision design

- High-density optical fiber docking

- Low insertion loss & good exchangebility



Features
- Fiber optic adapter MPO
- Multimode or Single Mode, OM3,OM4, OM5 available
- Simplex
- ABS housing
- Insertion Loss ≤ 0.2dB

- Return Loss ≥ 45dB (pc), ≥ 60dB (apc)
- Operating temp.: -40° C~+85° C
- Standard plugging force: 2~6N
- Durability > 1000 times


Specification Performance:

- IL: <0.2dB,

- Withdrawal force (g/f): 200~600

- Durability: <0.10 dB typical change, 500 matings

- Temp.: -40°C to +80°C



Application

- Patch panels, ODF and other optical connections.

- Optical networks demarcation and monitoring point.


Size:
MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 0


Product advantage:

* MTP MPO Singlemode Multifiber Adapte

* Apply for CATV, LAN, Telecom network, test equipment

* Multi Mode or Single Mode, Simplex or Duplex optional
* PC / APC available
* Square, round, single / coupled, quad 2 cores or 4 cores shape optional
* Ceramic sleeve, copper, zinc alloy and plastic housing
* IL≤0.2dB, RL≥50dB (pc); RL≥60dB (apc)
* Operating temp.: -40°C~+85°C
* Standard plugging force: 2~6N
* Durability > 1000 times

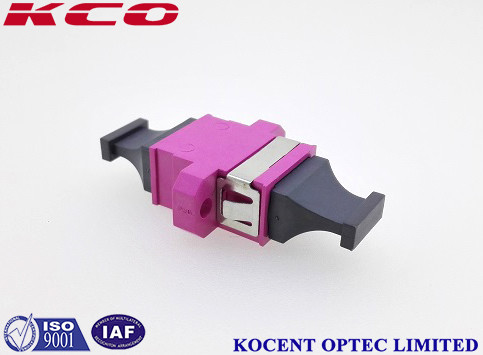

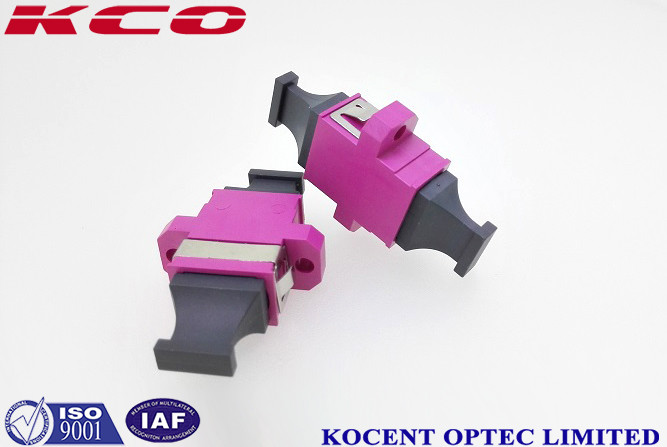

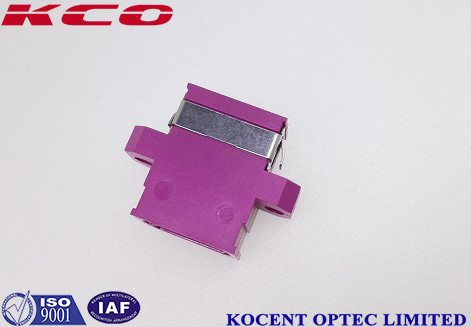

Product Photo:

MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 1

MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 2

MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 3

MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 4

MPO MTP Optical Fiber Adapter Coupler Adaptor Up-down Up-up 5



Environment and Mechanical

Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%,96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.



Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
