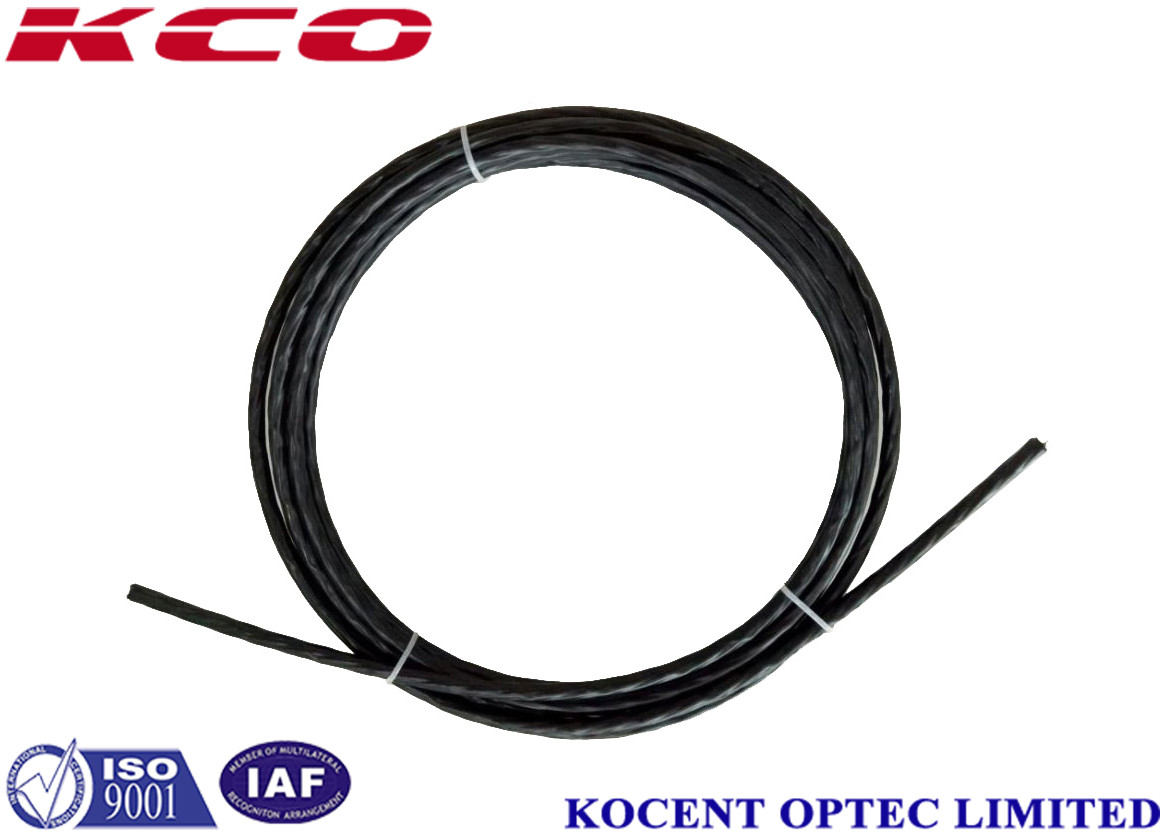

Mutifiber 12fo to 144fo Air Blown Micro Duct Jetting Fiber Optic Cable
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-GCYFY |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |

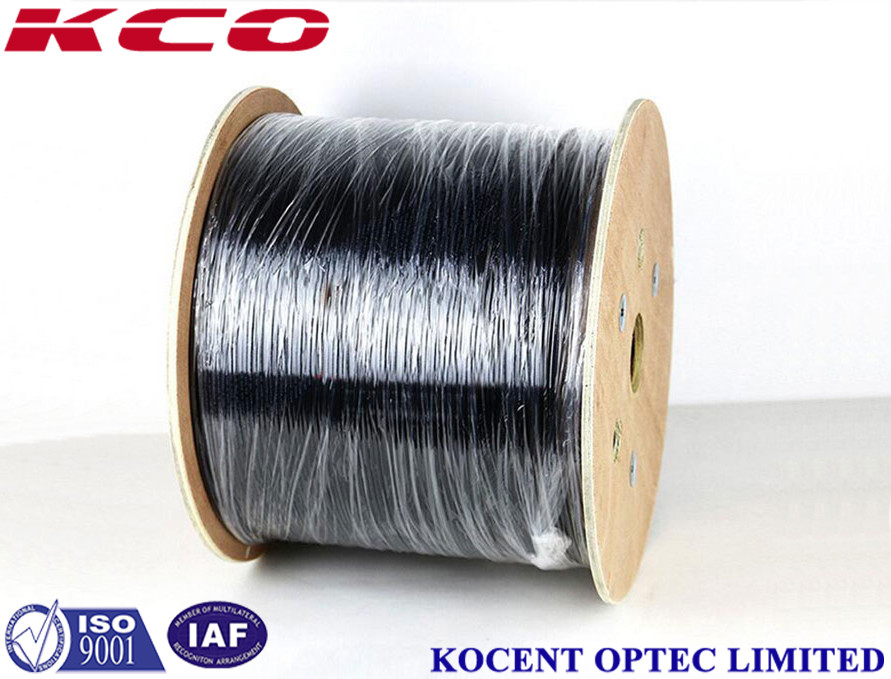

| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE | Name | Outdoor Duct Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Application | Outdoor Or Customized |
| Fiber | Single Mode, Multimode, OM3, OM4, OM5 | Cores | 4 Cores To 24 Cores Or More |
| Highlight | tight buffered fiber optic cable,indoor outdoor fiber optic cable |
||
Product Description
Air Blown Micro Duct Jetting Fiber Optic Cable PE Sheath
Multimode OM1 OM2 OM3 OM4 OM5
Description:

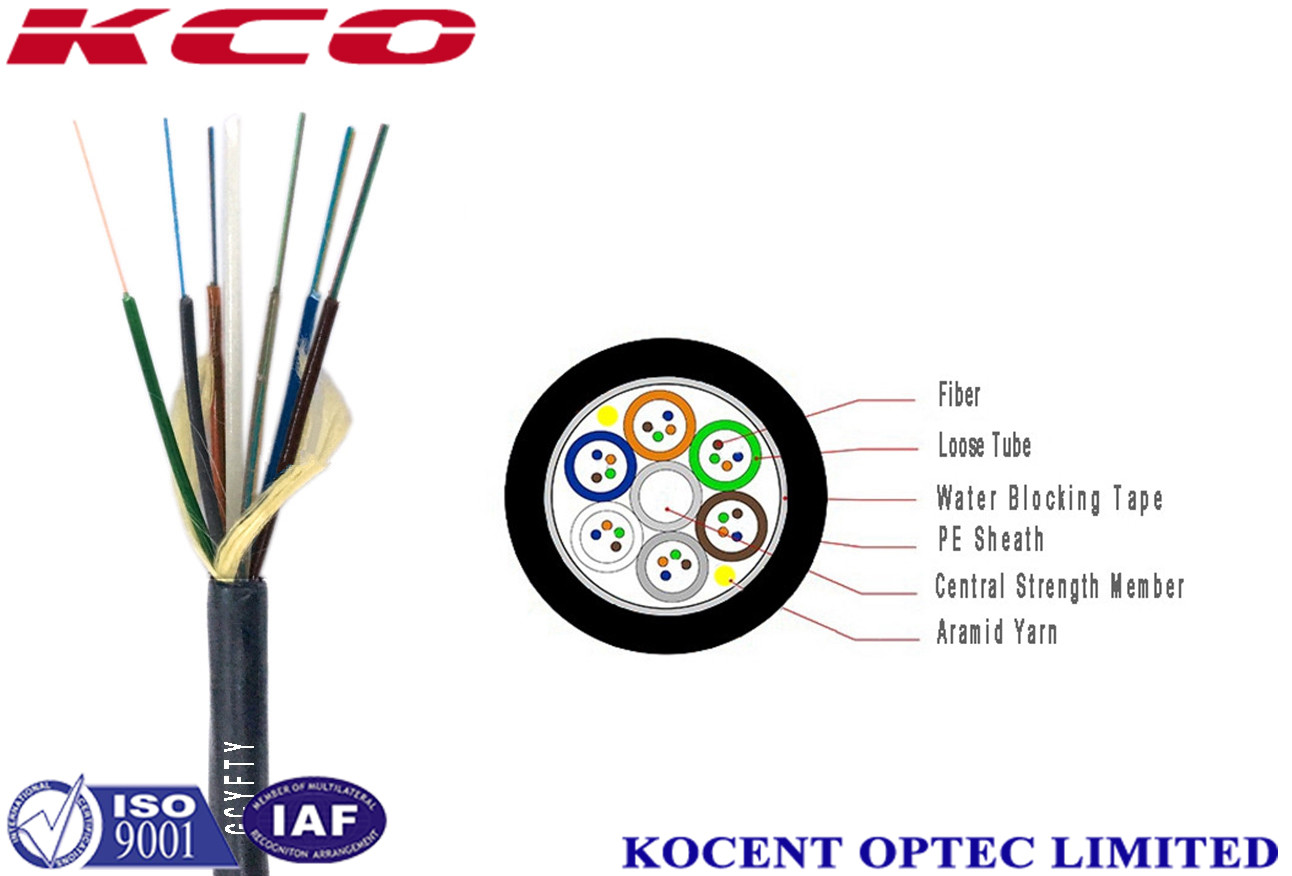

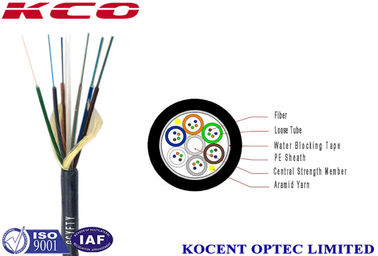

- Optical fibers are housed in loose tubes that are made of high-modulus plastic and filled with waterproof compounds.
- FRP is applied as central strength member.
- Loose tubes are SZ-stranded around the strength member.
- Water blocking yarns are used in and over the cable core to prevent it from water ingress.
- Polyethylene sheath is applied over the cable core as the outer PE sheath.
Cable Description:
12/24/36/48//72/96/144 G.652D SM-fibers.
Loose tubes SZ-stranded.
Suitable for air blown cable in micro-duct installation.
Working Condition:
Transportation and storage temperature:-40℃~+70℃
Installation temperature: -15℃~+60℃
Operation temperature: -20℃~+70℃
Construction:
Parameters of optic fiber cable
| Category | Description | Specification | |
| Geometrical Characteristics | Cladding diameter | 125.0 ± 1 mm | |
| Cladding non-circularity | £ 1.0 % | ||
| Core concentricity error | £ 0.6mm | ||
| Coating diameter | 245± 10 mm(Before Colored) 250 ± 15 mm (Colored) | ||
| Coating/cladding concentricity error | £ 12mm | ||
| Optical Characteristics | Mode field diameter at 1310 nm | 9.2 ± 0.4 mm | |
| Point discontinuity | £ 0.05dB | ||
| Attenuation at 1310 nm | £ 0.34 dB/km | £ 0.35 dB/km | |
| Attenuation at 1383 nm | £ 0.34 dB/km | £ 0.35 dB/km | |
| Attenuation at 1550 nm | £ 0.21 dB/km | £ 0.22dB/km | |
| Attenuation at 1625 nm | £ 0.23 dB/km | £ 0.24dB/km | |
| Dispersion in 1288 – 1339 nm | £ 3.5 ps/(nm·km) | ||
| Dispersion in 1271 – 1360 nm | £ 5.3 ps/(nm·km) | ||
| Dispersion at 1550 nm | £ 18 ps/(nm·km) | ||
| Zero dispersion wavelength | 1300 – 1324 nm | ||
| Zero dispersion slope | £ 0.092 ps/(nm2·km) | ||
| Cable cut-off wavelength | £ 1260 nm | ||
| Polarization mode dispersion individual fiber | £ 0.2 ps/Ökm | ||
| Polarization mode dispersion design link value (M=20, Q=0.01%) | £ 0.1 ps/Ökm | ||
| Macro-bend loss (100 turns, 30mm radius, 1550/1625nm) | £ 0.1 dB | ||
| Mechanical Specification | Proof stress level | ³100kpsi (0.69 GPa) | |
| Coating strip force(peak value) | 1.3~8.9N | ||
| Fiber curl (Radius) | ³ 4 m | ||
Cable Production Process:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
