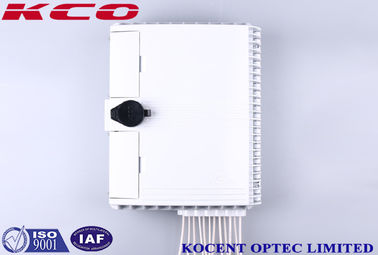

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade

  • KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade
  • KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade
  • KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade
  • KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-ODP-12W
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details carton box, wooden pallet
Delivery Time 7~14 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material ABS+PC Insertion Loss 0.15dB
Return Loss 55dB Connector SC, ST, LC, FC, E2000, Etc
Application Outdoor Capacity 16 Fibers Fo
Highlight

fibre termination box

,

outdoor terminal box
Leave a Message
Product Description

KCO-ODP-12W Optical 12 24 Ports PC ABS Material Waterproof Fiber Access Terminal Box

FAT Distribution Box



Descriptions:

Fiber optic splitter termination box offers a cost-effective way for the FTTH access network. And there are different types in the market. According to the configuration types of PLC splitter, there are three common types of splitter termination box: plug-in type PLC splitter termination box, blockless PLC splitter termination box and ABS PLC splitter termination box. Here is a simple introduction to them.



Specifications:

Model KCO-ODP-12W
Material PC+ABS
Dimension 260*210*95mm
Cable Entry 1 uncut cable entrance: 10-16.5mm
Drop cable port 12 ports
Applicable cable diameter 2*3mm FTTH drop cable, 2*5mm figure 8 FTTH drop cable
Max. Capacity 12 Fibers, 1 tray x 12F
Adapter Max. 12pcs SC simplex (LC, FC, MT optional)
Sealing structure Mechanical sealing with PE waterproof sealing ring
PLC Splitter Max. micro plug-in 1x12 Splitter
Color Gray White or Black
IP Grade IP55
Operating Temperature -40°C~+80°C
Relative Humidity <95%(+40°C)
Insulated Resistance >2x10MΩ/500V(DC)
Installation Method
(in overstriking)		 Floor Standing / Wall Mounted / Pole Mounted /
Corridor Mounted / Mounted in Cabinet



Installation way:
KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 0



Products photos:

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 1

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 2

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 3

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 4

KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 5



Features:
- Wall mounted for indoor or out door, white color, graceful style and good adaptability to environment.
- Made of high quality ABS+PC, anti-collision, flame retardant, resistance to impact.
- Anti-UV, wet-proof, water-proof, dust-proof, anti-aging.
- Fit for 1x4 , 1x8 and 1x16 PLC splitter assembly.
- It has 2 input ports and 16 output ports on the bottom and it is easy to install on the wall or pole.
- The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray.
- Cable, pigtails, patch cords are running through own path without disturbing each other, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup joint way, easy for maintenance and installation.



Specification:

- Made of high-impact plastic:ABS+PC (ROHS standard)

- Color: White

- Cable Diameter: 11~13.5mm

- Can hold up to 16 drop cables

- Can hold up to 16 SC Adapters

- 2 inlet ports,16 outlet ports

- Great for wall mounting or pole mounting

- Pretection class-IP67

- RoHS compliance



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.


Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
KCO-ODP-12W Fiber Access Terminal Box FAT Distribution Box IP55 Grade 6



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
