MPO MTP Fiber Optic Polishing Equipment

  • MPO MTP Fiber Optic Polishing Equipment
  • MPO MTP Fiber Optic Polishing Equipment
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-6600
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details wooden box, wooden pallet
Delivery Time 5~8 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 10,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Ferrule UPC, APC, PC Connector MPO, MPO/APC, MTP, SC, FC, LC, ST, MTRJ, DIN, Etc
Connector No. 8~24 Connectors Ferrule Type 2.5um, 2.0um, 1.25um
Return Loss 50dB Libration 1.0g: 5~100Hz 45min
Highlight

optical fiber polishing machine

,

fiber optic polishing machine
Leave a Message
Product Description

KCO-6600 Center Pressure Intelligent MPO MTP Fiber Optic Polishing Machine

Same As Domaille Senko



KCO-6600 Center Pressure Intelligent MPO MTP Fiber Optic Polishing Machine is newest auto and intelligent machine, installed auto-adjust system,polishing procedure is controlled by PLC, and installable 10 kinds of polishing artwork, so can choose different artwork according different polishing products

The machine use together with our MPO/MTP Jig, 3D pass rate can be reached at 100%.



Characteristics:

- Automatic Pressure Adjustment to account for a varying number of connectors inserted in the polishingfixture

- Operator Step-by-Step Prompts for film, pad type, and lubricant

- Force, Speed, and Time Displays on the touch screen panel for feedback of process step specific settings

- Programmable pressure and speed ramp for slow starting polishing cycle

- Programmable film change counter

- Pneumatically-Controlled Polishing Pressure provides consistent polishing force regardless of ferrule length

- Pivoting Overarm provides easy cleaning of fixtures between steps and quick change of fixtures

- Cable Management System routes cables away from the polishing activity

- Standard 5" Platen with 8" Option provides flexibility in fixture capacity and polishing film size

- Drip Tray & Spash Guard swivels in for quick and easy cleaning of fixtures between steps

- Robust Design uses the highest-quality materials machined to nano tolerances

- Quick-Change Fixtures support all industry standard connector types, both single and multiple fiber





KOCENT OPTEC LIMITED can help you establish a new of common patch cord fiber optic production line (such as: fiber cable automatic cutting machine, polishing machine, curing oven, ennface microscope, IL&RL tester, Laser pen, ....) also can help you establish MPO/MTP patch cord production line, and also PLC splitter production line.

Please contact with our sales to get most professional about it.

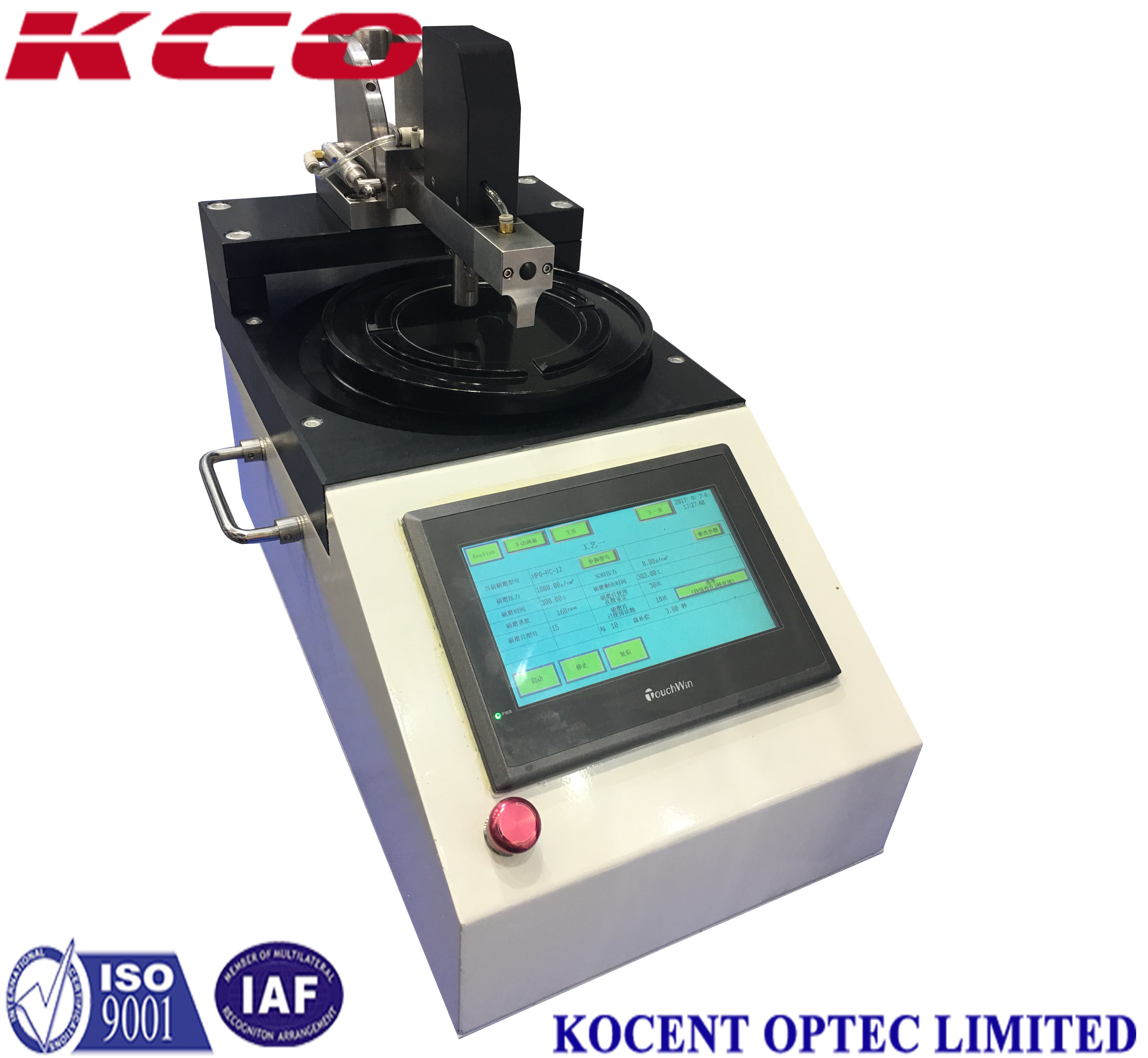

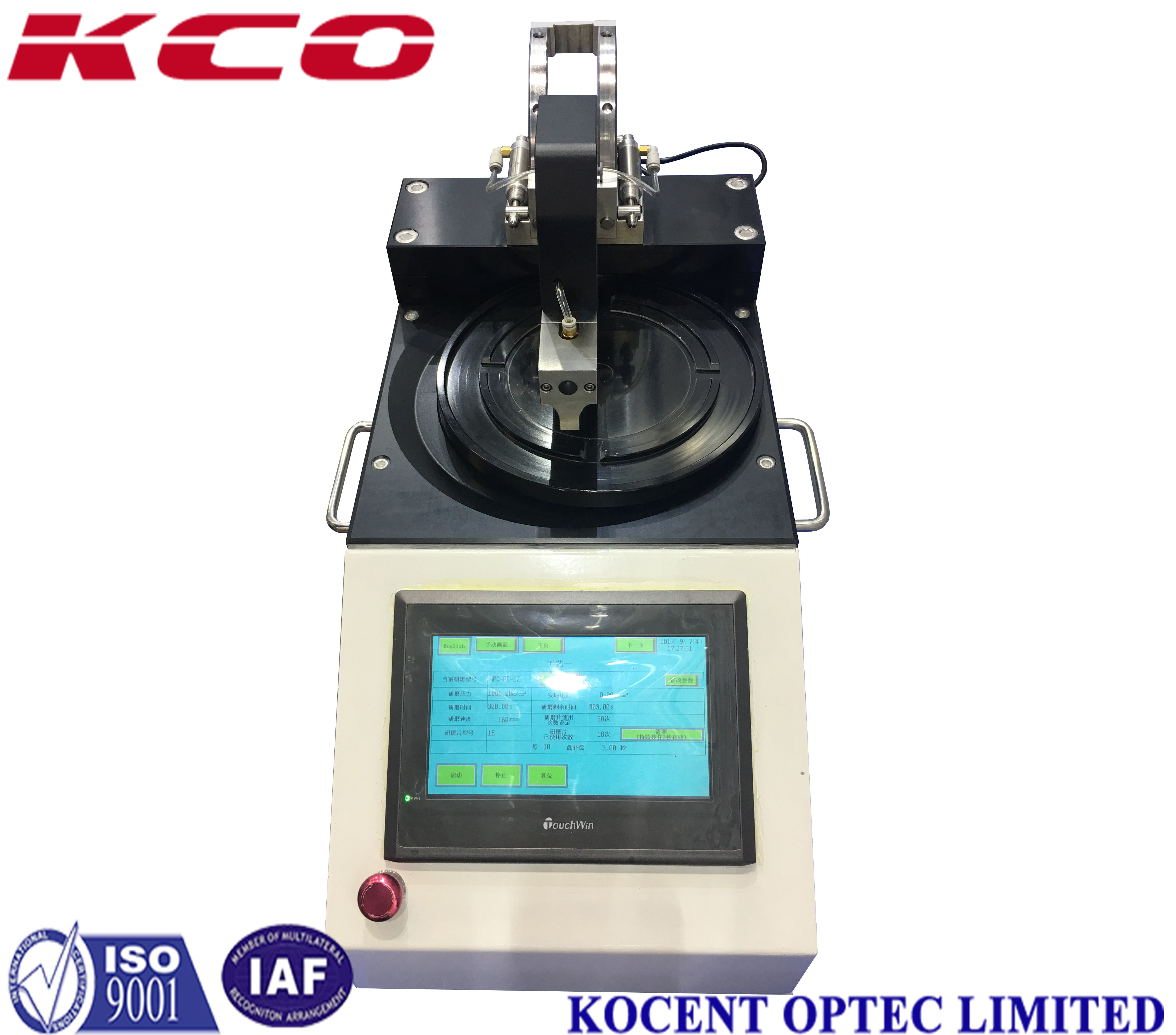

Machine photos:

MPO MTP Fiber Optic Polishing Equipment 0

MPO MTP Fiber Optic Polishing Equipment 1



Polishing jig:

MPO MTP Fiber Optic Polishing Equipment 2



MPO end-face microscope:

MPO MTP Fiber Optic Polishing Equipment 3



List of machine:

Item Machine/Part name
1 Central pressure programmable polishing machine
MPO/PC -24 polishing jig
MPO/APC-24 polishing jig
2 Corner pressure programmable polishing machine
MPO/PC-24 polishing jig
MPO/APC-24 polishing jig
3 Curing oven ( for MPO)
4 Microscope (for MPO)
5 12 ways Automatic MPO/MTP continuity tester
6 MPO/MTP 3D interferometer
7 MPO 12 ways IL&RL tester
8 MPO polishing jig clean machine
9 MPO Pneumatic pressure crimping machine
19 Polishing pad
11 MPO ribbon jig
12 Polishing paper ( 30U, 9U)
12.1 Polishing paper ( 1U)



Otherwise of the machine, we also can supply all of consumble items that need to use when producing the patch cord, such as fiber optic ferrule, fiber optic cable, fiber optic connector part, polishing paper, ADS paper, Curing glue, ...



America 353ND fiber optic curing glue:

MPO MTP Fiber Optic Polishing Equipment 4



Taiwan 353ND fiber optic curing glue: ​

MPO MTP Fiber Optic Polishing Equipment 5



Polishing pad:

MPO MTP Fiber Optic Polishing Equipment 6

Polishing film ( polishing paper )

MPO MTP Fiber Optic Polishing Equipment 7



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
